18
Framing should be
constructed of 2 X 4
lumber or heavier.
Model A B C D E
VENTED VENTED
TOP REAR
PIER-TRC 43 1/4 40 1/4 41 1/2 23 1/4 45 29 7/8
ST-TRC 47 46 41 1/2 23 1/4 45 29 7/8
CORNER-TRC’S 43 1/4 40 1/4 41 1/2 24 3/4 45 29 7/8

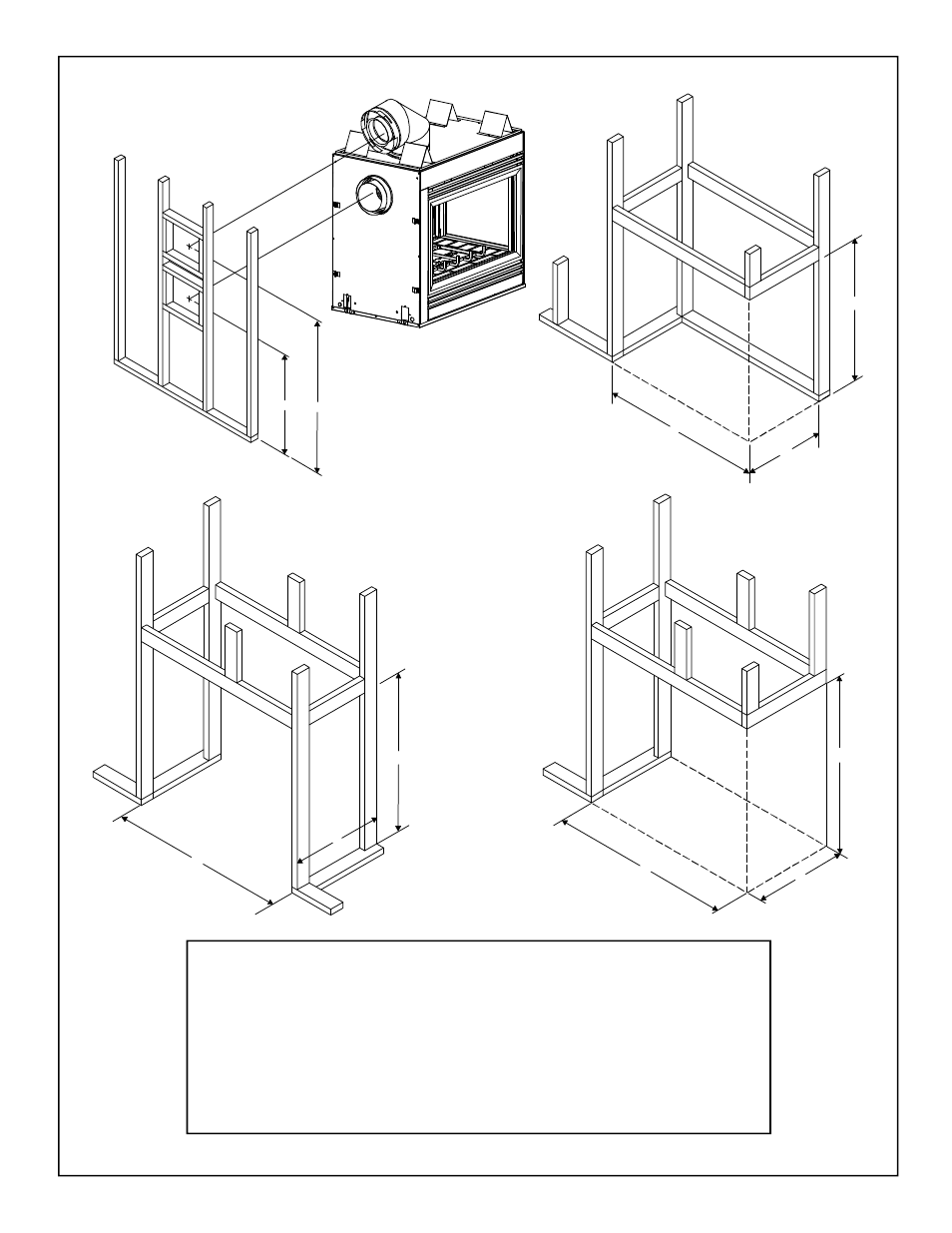

Figure 5. Framing Dimensions
NOTE: DIMENSIONS SHOWN IN INCHES
Shows center of 12” x 12” vent
framing holes for top and rear
venting. The center of the hole is
one inch (25.4mm) above the
center of the horizontal vent pipe.
B
C
A
PIER-TRC
CORNER-TRC'S
A
C
B
ST-TRC
A
C
B
CORNER-TRC'S
D E
