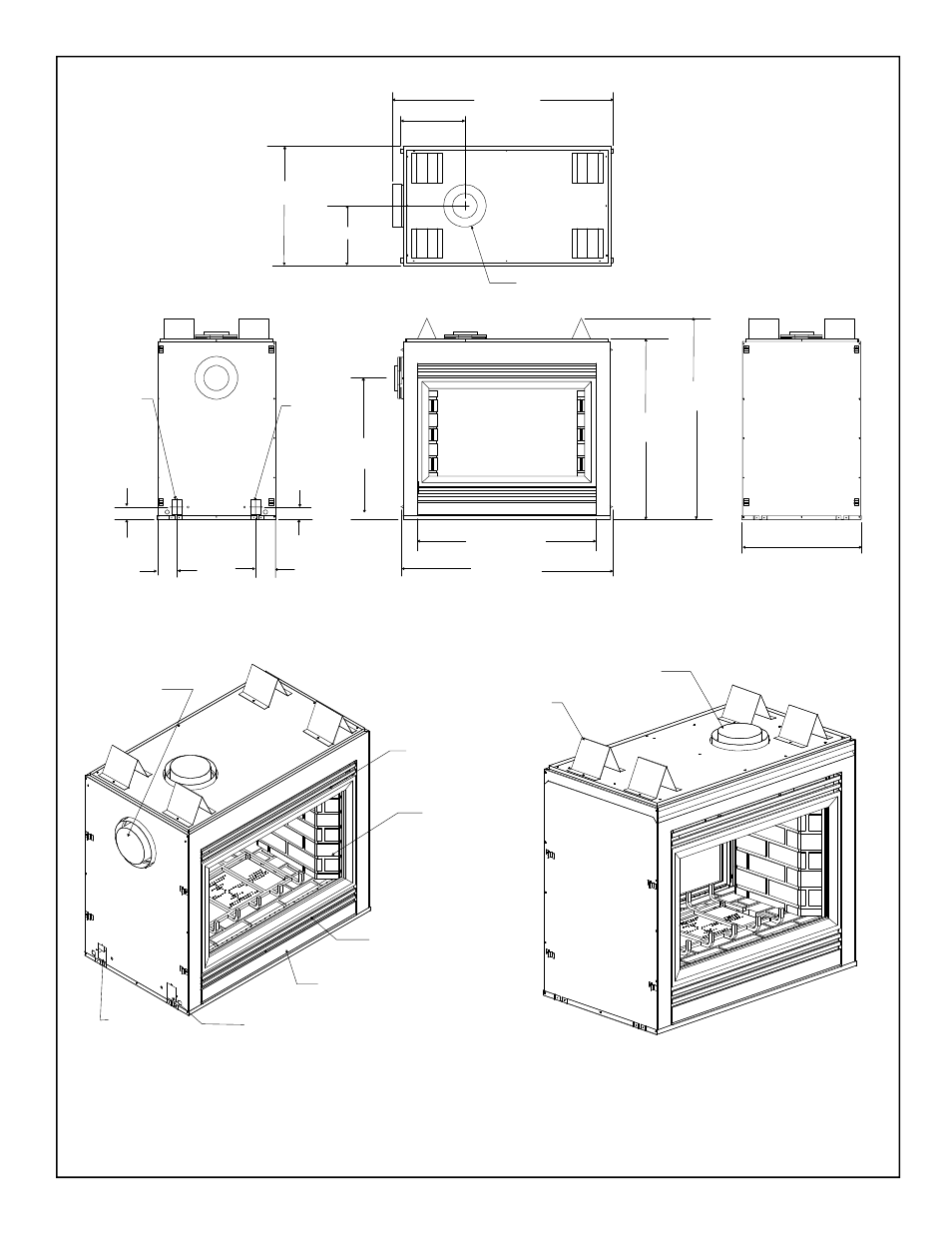

Figure 2. Diagram of the ST-TRC
LEFT SIDE FRONT RIGHT SIDE
TOP VENT
COLLARS
REAR VENT
COLLARS
ELECTRICAL
ACCESS GAS LINE
ACCESS
GAS CONTROLS
& LABELS
BOTTOM
GRILLE
TOP GRILLE
TOP STANDOFFS
GLASS DOOR
45 (1143mm)
13 (330mm)
12 1/8 (308mm)
VENT COLLARS
24 1/4
(616mm)
28 7/8
(733mm)
2 1/2
(64mm)
GAS LINE
ACCESS
4 (102mm) 4 (102mm)
2 1/2
(64mm)
ELECTRICAL
ACCESS
43 (1093mm)
36 1/8 (918mm)
36 7/8
(937mm)
41
(1042mm)
24 1/4 (616mm)
