-8- 598-1291-02
Finish Mounting
❒ Align the cover plate, gasket, and the mounting
bracket hole. Secure with M5 x 0.8 x 40 mm
mounting screw supplied.
❒ Push the rubber plug firmly into place.
❒ If not installed on a weatherproof box, caulk
between the cover plate and mounting sur-
face with silicone weather sealant.
To obtain maximum lamp
life, keep the tubular
lamps horizontal.
Specifications
Range .............................. 70 feet (21.0 m); 100 feet
(30.5 m) with Range Boost.
Varies with surrounding
temperature.
Sensing Angle ................. Up to 270° (Adjustable)
Fixture Load .................... Up to 500 Watts Maximum
Tungsten Incandescent [Up
to 250 Watts Maximum each
lamp holder.]
Sensor Load Capacity ..... Up to 1000 Watts (8.3 amps)
Maximum Tungsten Incan-
descent
Power Requirements ....... 120 VAC, 60 Hz
Operating Modes ............. TEST, AUTO and MANUAL
MODE
Time Delay ...................... 1, 5, 20 minutes
CAUTION: To Avoid Fire Or Burn Hazards:
• Allow fixture to cool before touching. The bulb and the fixture
operate at high temperatures.
• Keep fixture at least 3" (76 mm) from combustible materials.
Do not aim at objects closer than 3' (1 m).
• Use only type T 250W (max.) tungsten halogen 120 VAC
lamps.
HeathCo LLC reserves the right to discontinue
products and to change specifications at any time
without incurring any obligation to incorporate new
features in products previously sold.

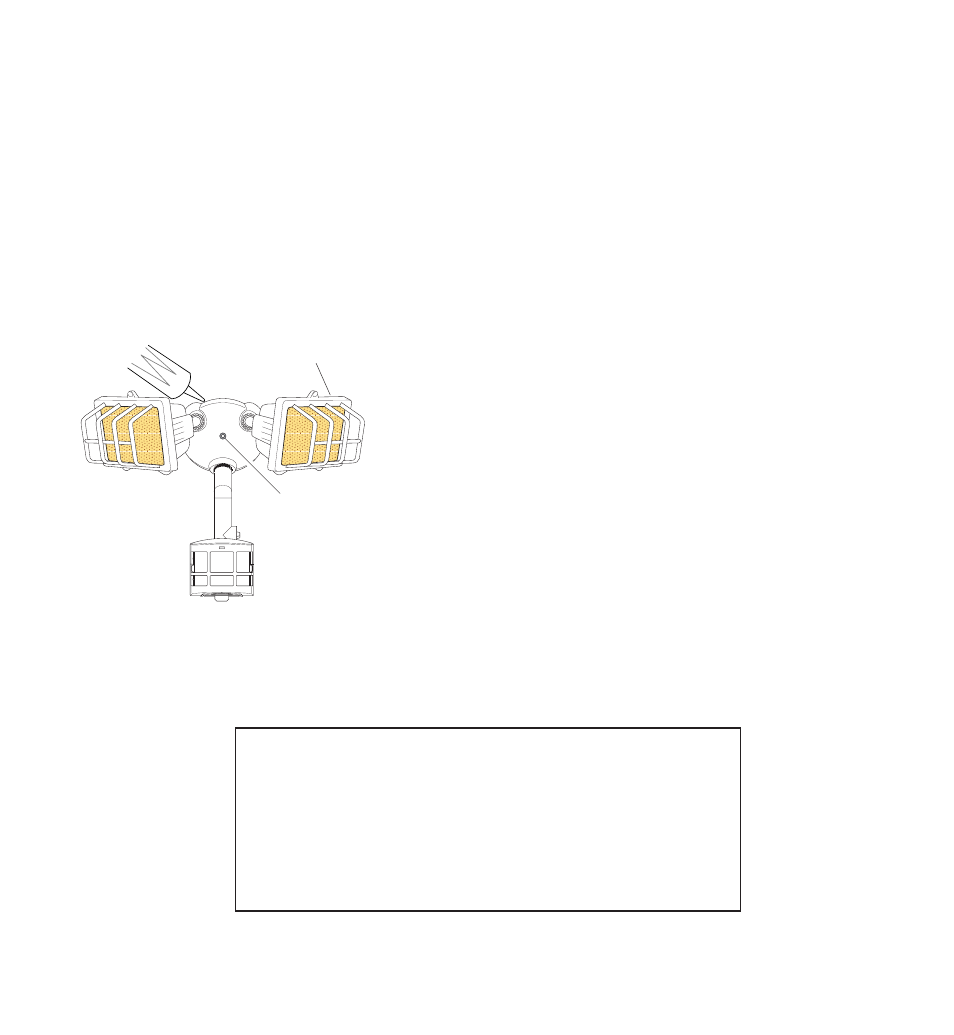

Rubber Plug
