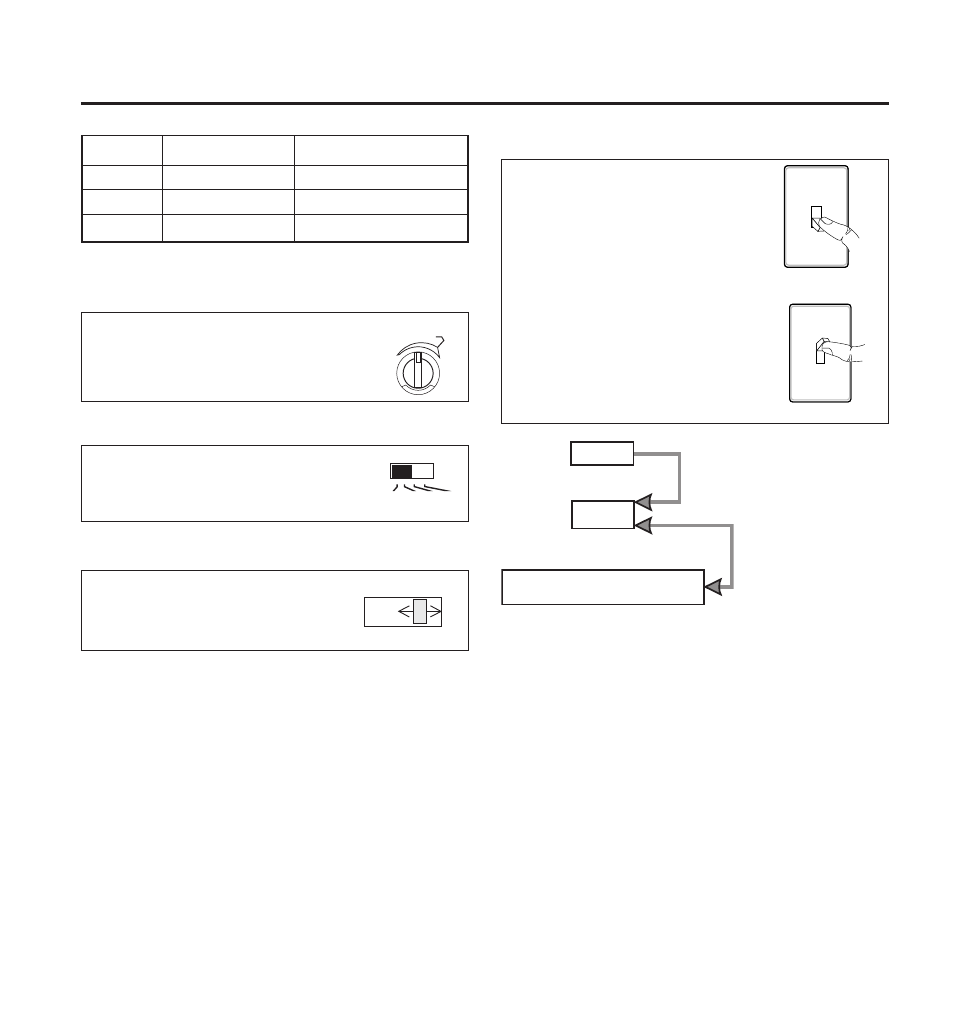

Operation
RANGE
Turn Range control to the desired
setting.
TEST MODE
AUTO MODE
ON TIME
TEST 1 5 20
* resets to Auto Mode at dawn.
Test 5 Sec x x
Auto 1, 5, or 20 min. x
Manual Until Dawn* x
Mode: On-Time: Works: Day Night
MANUAL MODE
... back on.
1 Second OFF
then...
Move ON-TIME Switch
to 1, 5, or 20 minutes
Flip light switch
off for one second
then back on*
* If you get confused while switching modes,
turn the power off for one minute, then back
on. After the calibration time, the control will
be in the AUTO mode.
MANUAL MODE
AUTO
TEST
Manual Mode only works at
night because daylight returns
the sensor to AUTO.
Flip the light switch off for one
second then back on to toggle
between AUTO and MANUAL
MODE.
Manual Mode only works with
the ON-TIME switch in the 1,
5, or 20 minute position.
BO
O
ST
MIN
TEST 1 5 20
RANGE
MAX
ON-TIME
BO
O
ST
MIN
TEST 1 5 20
RANGE
MAX
ON-TIME
Put the ON-TIME switch in the 1,
5, or 20 minute position.
Slide the ON-TIME switch to
TEST and turn the Range control
to the center of its adjustment.
