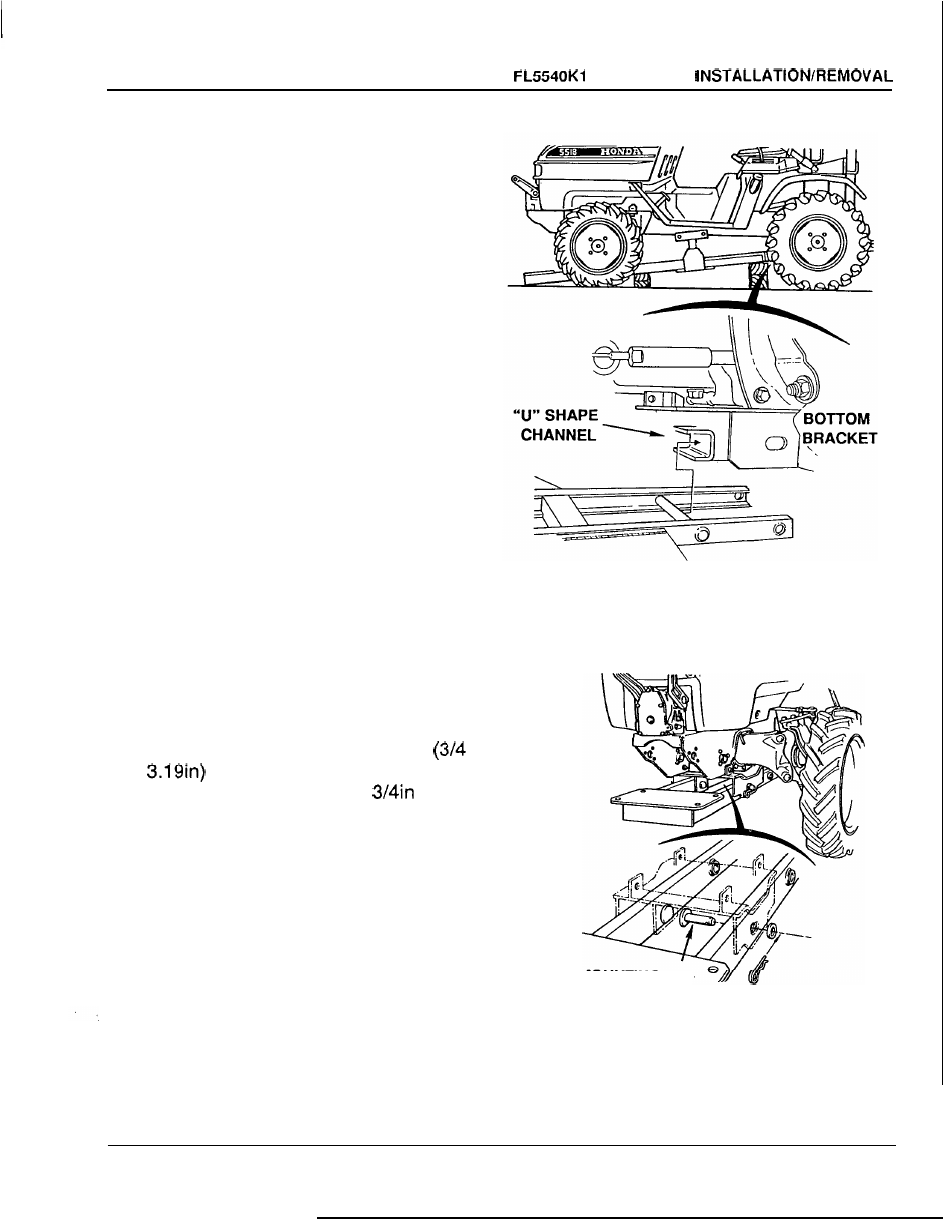

SUB-FRAME

11.

Remove the jack from the front. Push
down on the front of the subframe while

pushing back. Slide the subframe into

the U-shaped channel. Place blocks un-
der the rear of the subframe.

12.

Lift

the front of the subframe with a jack

and slip it into the channel of the lower
cover. Insert

two

mounting pins

from inside sub-frame through

frame lower cover. Slip a

washer

over each mounting pin and insert the

clip pins through the holes.

Mounting pins have

a flat side that must

be pointing down.

MOUNTING PIN
FLAT

SIDE DOWN
