FRONT LOADER ASSEMBLY
FRONT LOADER ASSEMBLY

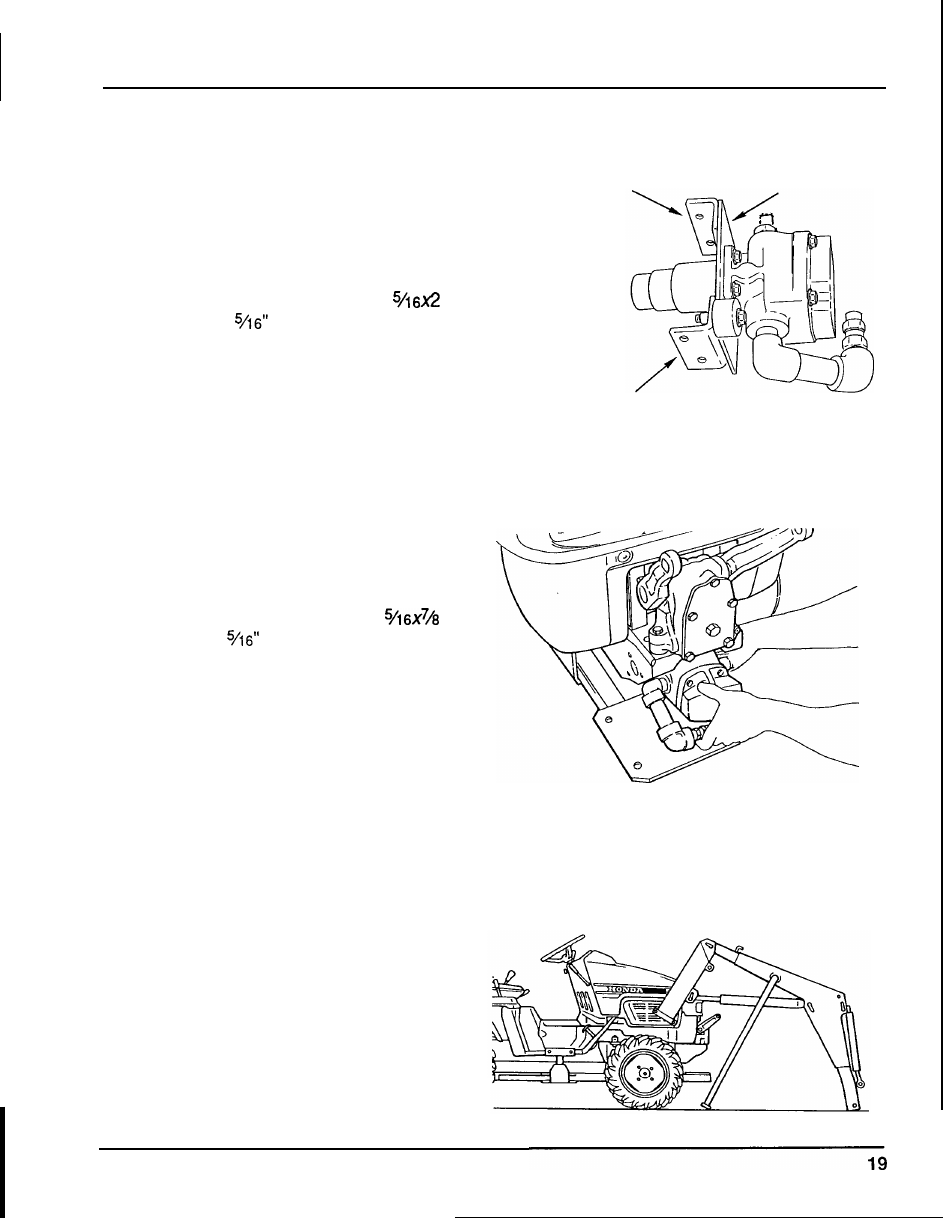

HYDRAULIC PUMP MOUNTING
1. Pump mounting plate and pump drive joint
are installed on pump. Ensure bolts and
set screw are tight.
Attach the pump brackets to the pump
mounting plate using two each inch
bolts and flatwashers. The right
bracket is shorter than the left. Do not
tighten the bolts at this time.
PUMP
MOUNTING
LEFT BRACKET
PLATE
Apply a light coating of grease to tractor
front PTO at this time.
RIGHT BRACKET
2. Mount hydraulic pump to tractor by sliding
splined pump drive joint onto front PTO
shaft with mounting brackets inside main
frame and attaching with four
inch
bolts and lockwashers. Tighten all
pump mounting bolts.
LOADER INSTALLATION
The masts and main frame come assembled.
All cylinders and hoses have been attached
to the frame except the two hoses from the
hydraulic pump.
3. Set the loader on its stands and move the
tractor centrally between the masts.
