SUB-FRAME
SUB-FRAME
Instructions assume the Lift Kit
is already installed.

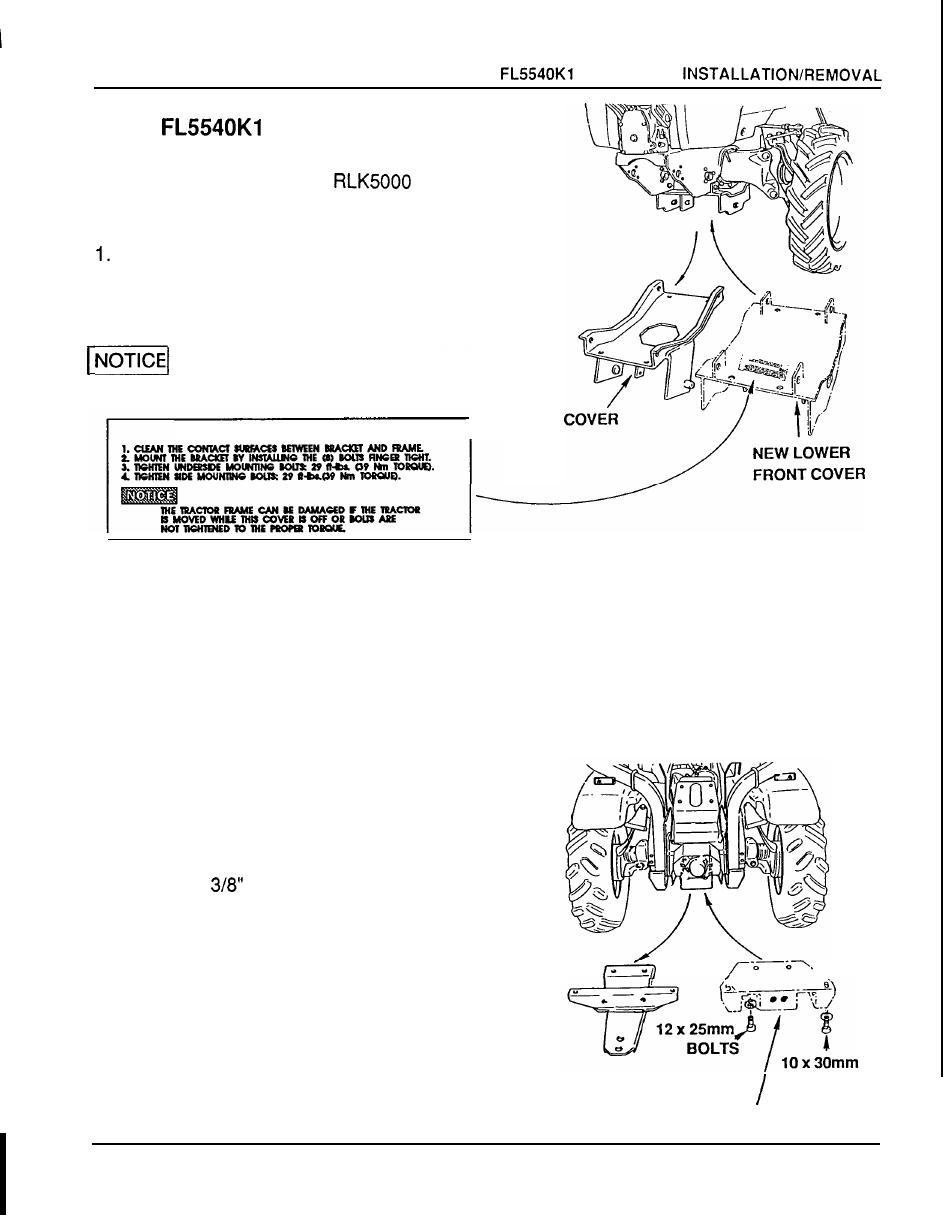

Remove the existing frame lower cover
and replace with the new lower cover
using existing mounting bolts and collar
washers.
-
To prevent damage, never
operate the tractor without the lower cover.
INSTALLATION I N S T R U C T I O N S
I
FRAME
LOWER
A second label is included with this
operator's manual. install this label onto the
original frame lower cover.
2. Remove the drawbar and replace it with
the bottom bracket using the two 12 x
25mm hex head bolts with 7/16"
washers and two 10 x 30mm hex head
bolts with washers.
\
DRAWBAR BOLTS
BOTTOM BRACKET
13
