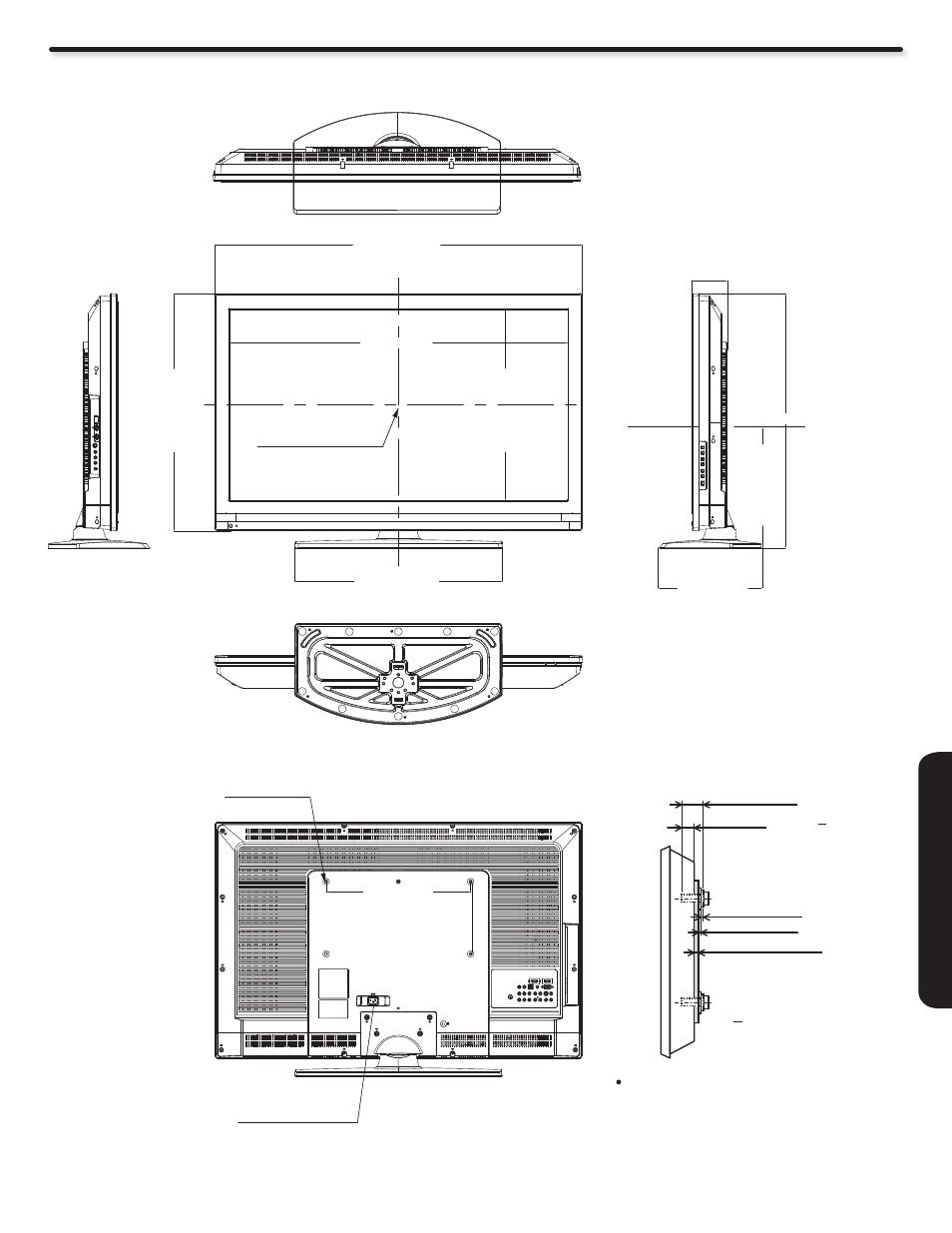

Set Dimensions
L42S504 model (Includes Table Top Stand) Weight (lbs./kg): 41.9/19
Units: Inches (mm)
LOCATION OF THE
AC POWER CORD
HOLE FOR
WALL MOUNT
(4 PLACES)
Rear View
Use as Reference for Wall Mount Bracket
The screw type : Thread ISO M6 (Metric
type, do not use Standard type).
Side View
Wall Mount Screw specification
39 31/32 (1015.36)
36 5/8 (930.20)
(ACTIVE AREA)
3 25/32 (96.10)
27 11/16 (703.05)
15 19/32 (396.00)
22 9/16 (572.87)
15 3/4 (400.00)
7 7/8 (200.00)
25 13/16 (655.51) 20 19/32 (523.30) (ACTIVE AREA)
11 1/32 (280.50)
CENTER OF THE SCREEN
Screw Length (A)
Spring Washer (C)
Plane Washer (D)
Wall Mount Bracket (E)
Example :
A = B+C+D+E
A: 13.5~15.5 mm.
B: 8.5~10.5 mm.
C: 1 mm.
D: 1 mm.
E: 3 mm.
Insertion Length (B)
