10

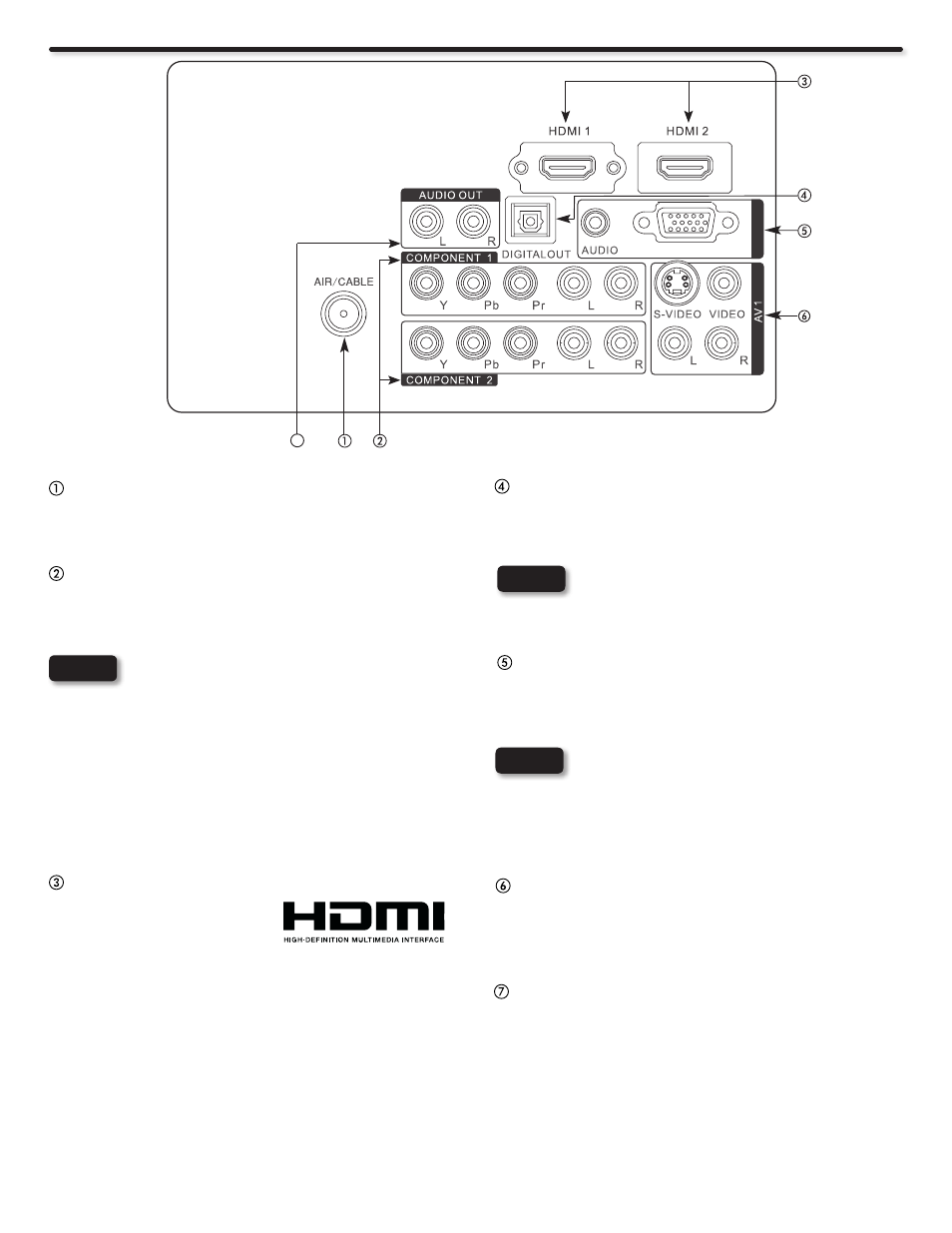

Rear Panel Jacks
Antenna Input
To switch between Cable and Air, go to the Channels Menu
option to change the signal source CABLE or AIR (see page
40).
Component: Y-P b P r and Audio Inputs
Component 1 and 2 provide Y-P b P r and Audio jacks for
connecting equipment with this capability, such as a DVD
player or Set Top Box.
• Your component outputs may be labeled Y , B-Y,
and R-Y. In this case, connect the components B-Y
output to the TV’s P b input and the components
R-Y output to the TV’s P
r
input.
• Your component outputs may be labeled Y-C b C r .
In this case, connect the component C b output to
the TV’s P b input and the component C r output to
the TV’s P r input.
• It may be necessary to adjust Tint to obtain
optimum picture quality when using the Y-P
b
P
r
inputs (see page 31).
HDMI 1 & 2 (High Definition Multimedia Interface)
About HDMI – HDMI is the
next-generation, all digital
interface for consumer
electronics. HDMI enables the
secure distribution of uncompressed high-definition video and
multichannel audio in a single cable. Because digital television
(DTV) signals remain in digital format, HDMI assures that
pristine high-definition images retain the highest video quality
from the source all the way to your television screen. Use the
HDMI input for your AV equipment such as Set-Top-Boxes or
DVD players equipped with an HDMI output connection.
HDMI, the HDMI logo and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
NOTES
RG
B
RGB
7
Digital Out (Optical Digital Audio)
This jack provides Digital Audio Output for your audio device
that is RAW and PCM compatible, such as an audio amplifier.
The Digital Output option will grayout with all input
sources, except with a digital program channel on
the Air/Cable input source.
DVI Audio Input
This jack provides Audio Input from a DVI source when
connected to the HDMI 1 Input. A DVI (source) to HDMI (TV)
connection must be made to HDMI 1.
• It is not neccessary to connect the DVI Audio Input
when the connection to HDMI 1 is a HDMI to HDMI
connection.
• The DVI Audio Input is only compatible with the
HDMI 1 Input.
Composite AV1 Jacks
AV1 input provides composite Video and S-Video jacks for
connecting equipment with this capability, such as a DVD
player, Game Console or Camcorders.
Audio Out jack
This jack provides stereo audio output from your TV to your
audio device, such as an audio amplifier.
