46

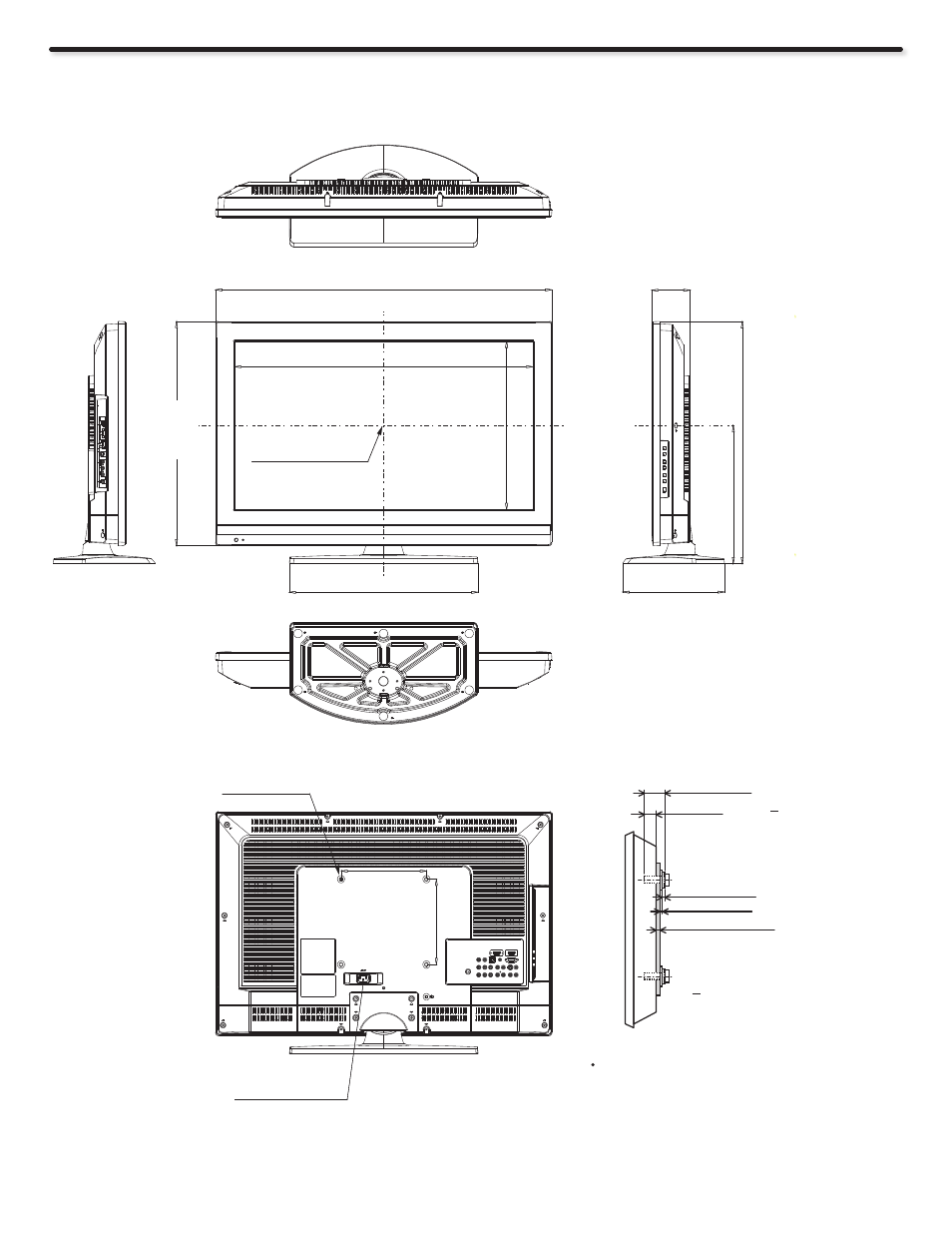

Set Dimensions
L32S504 model (Includes Table Top Stand) Weight (lbs./kg): 26.5/12
Rear View
Use as Reference for Wall Mount Bracket
Units : Inches (mm)
The screw type : Thread ISO M6 (Metric
type, do not use Standard type).
Side View
Wall Mount Screw specification
20 3/4 (527.2)
27 1/2 (698.4)
(ACTIVE AREA)
17 13/32 (442.5)
15 15/32 (392.9) (ACTIVE AREA)
12 25/32 (324.5)
22 13/32 (569.1) CENTER OF THE SCREEN
3 9/16 (90.1)
9 7/16 (239.6)
LOCATION OF THE
AC POWER CORD
HOLE FOR
WALL MOUNT
(4 PLACES)
31 1/8 (790.5)
7 7/8 (200.00)
7 7/8 (200.00)
Screw Length (A)
Insertion Length (B)
Spring Washer (C)
Plane Washer (D)
Wall Mount Bracket (E)
Example :
A = B+C+D+E
A: 13.5~15.5 mm.
B: 8.5~10.5 mm.
C: 1 mm.
D: 1 mm.
E: 3 mm.
