Maintenance, Maintenance -8, Maintenance -6 – Hustler Turf Z XR7 User Manual

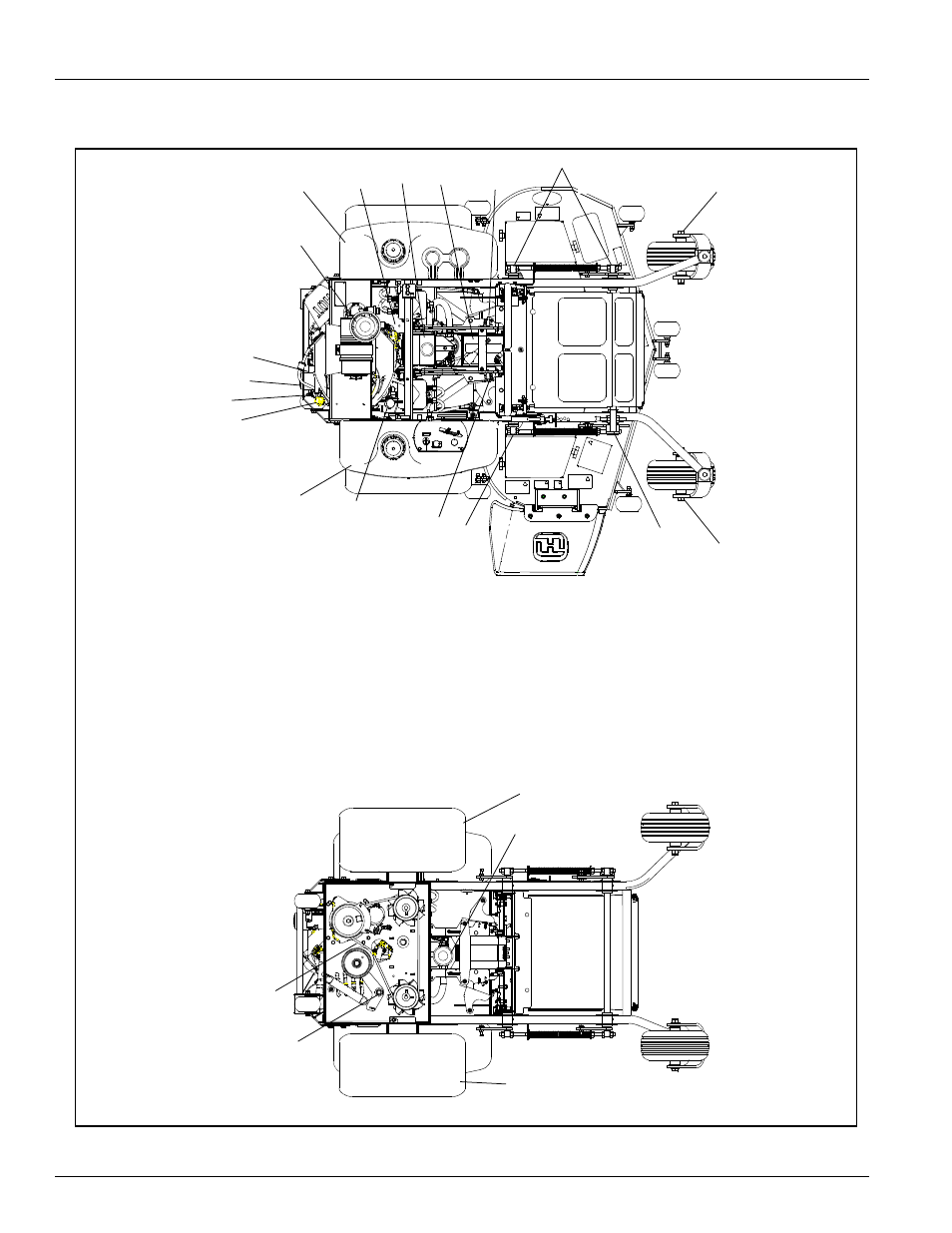

Page 86: Fig. 1, Maintenance locator chart, Viewed from bottom of tractor
10-8
106567 4/07
Maintenance
FIG. 1
1a
3
2b
8
1b
11
11
10
6
6
12
7
2a
12
9
4
1a. Engine Oil Fill & Dipstick (Kawasaki & Honda)
1b. Engine Oil Fill & Dipstick (Kohler)
2a. Fuel Filter (Honda & Kawasaki)
2b. Fuel Filter (Kohler)
3. Engine Air Cleaner
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tanks
7. Hydraulic Oil Reservoir
8. Hydraulic Oil Filter
9. Gauge Wheel Bearing Zerks (2)
10. Engine Oil Filter
11. Deck Height Pivot Zerks (4)
12. Park Brake Switch (2)
13. Drive Tire
14. Pump Idler Zerk (1)
15. Pump Belt
Maintenance Locator Chart
9
5
11
13
13
14
15
Viewed from bottom of tractor
