Hustler Turf Z XR7 - Manual (Page 48)

6-6 106567 4/07

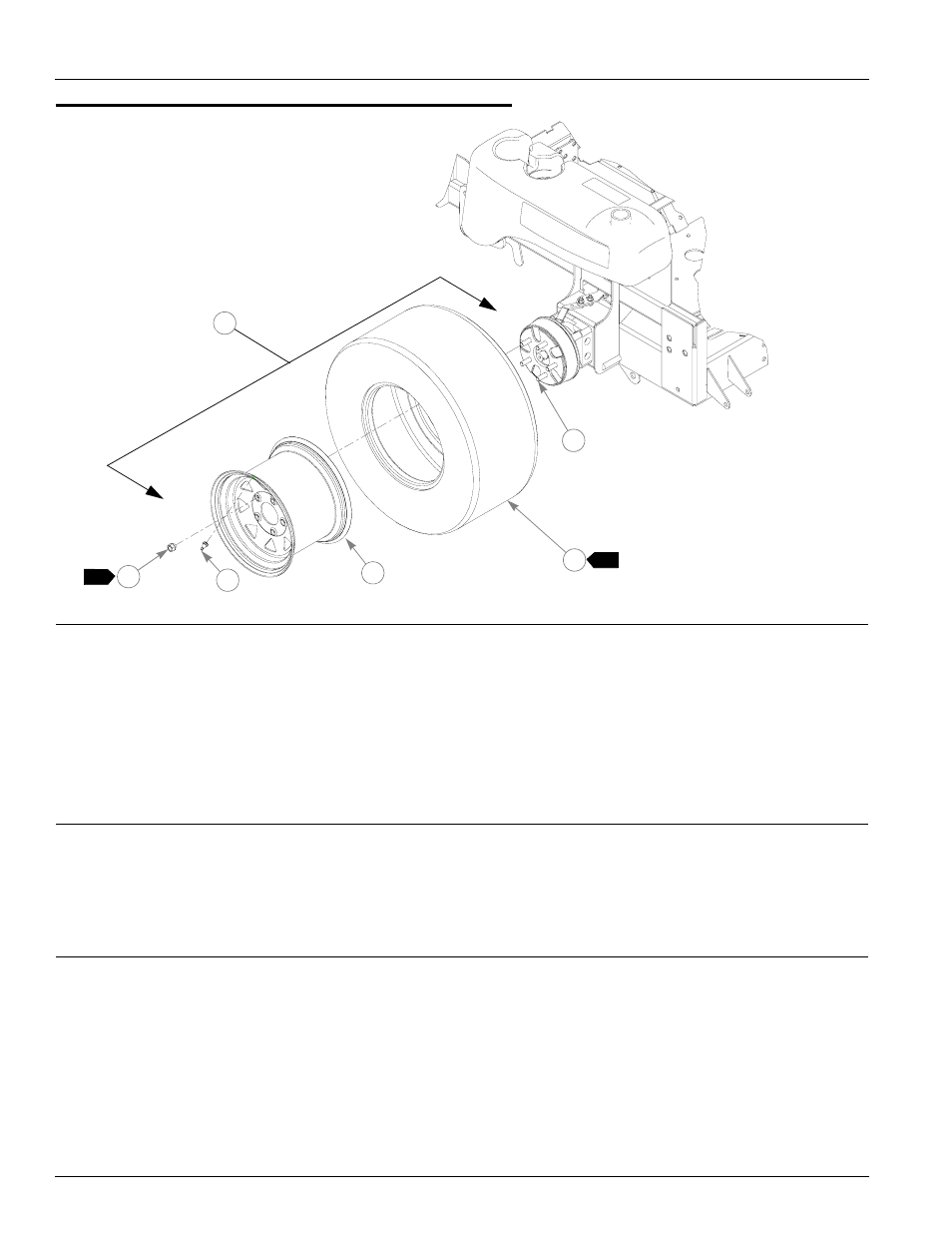

Drive Wheel Assembly Installation
NOTES:
1. Torque to 65-75 ft. lbs.
2. Inflate tire to 8-10 psi.
INDEX
NO.
SERVICE
PART NO.
PART NO. QTY DESCRIPTION
1 784058 784058 2 WHEEL & TIRE ASSY FOR 66" (QTY PER TRACTOR)
2 781245 N/A TIRE, 12 X 12 X 24 FOR 66"
3 784066 N/A WHEEL ASSEMBLY 12 X 8.50 FOR 66"
4 019521 N/A TIRE VALVE
5 061077 061077 10 WHEEL NUT (QTY PER TRACTOR)
6 770859 N/A 10 1/2" WHEEL LUG STUD
1 781237 781237 2 WHEEL & TIRE ASSY FOR 60" & 54" (QTY PER TRACTOR)
2 781245 N/A TIRE, 12 X 12 X 24 FOR 60" & 54"
3 781252 N/A 2 WHEEL ASSEMBLY 12 X 8.50 FOR 60" & 54"
4 019521 N/A 2 TIRE VALVE
5 061077 061077 10 WHEEL NUT (QTY PER TRACTOR)
6 770859 N/A 10 1/2" WHEEL LUG STUD
1
2
1
2
3
4 5
6
