46

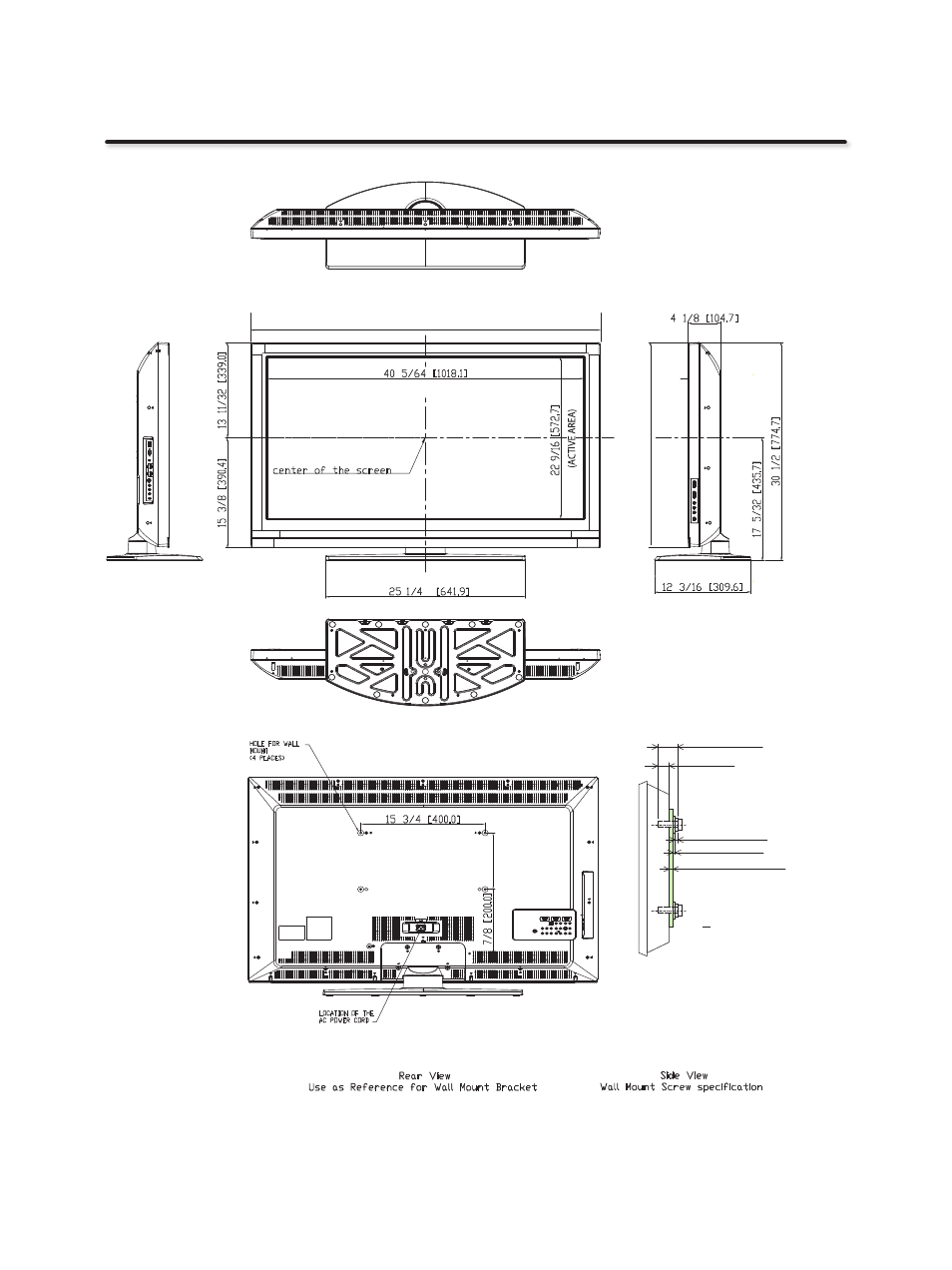

Set Dimensions
L46S603 model (Includes Table Top Stand) Weight (lbs./kg): 56.2/26
Units: Inches (mm)
(ACTIVE AREA)
44 21/64 [1126.0]
* The screw type : Thread ISO M6
(Metric type, do not use Standard type.)
28 23/32 [729.3]
Screw Length (A)
Insertion Length (B)
Plane Washer (D)
Spring Washer (C)
Wall Mount Bracket (E)
Example: :
A = B+C+D+E
A: 14.5~16.5 mm.
B: 9.5~11.5 mm.
C: 1 mm.
D: 1 mm.
E: 3 mm.
