FIRST TIME USE
15

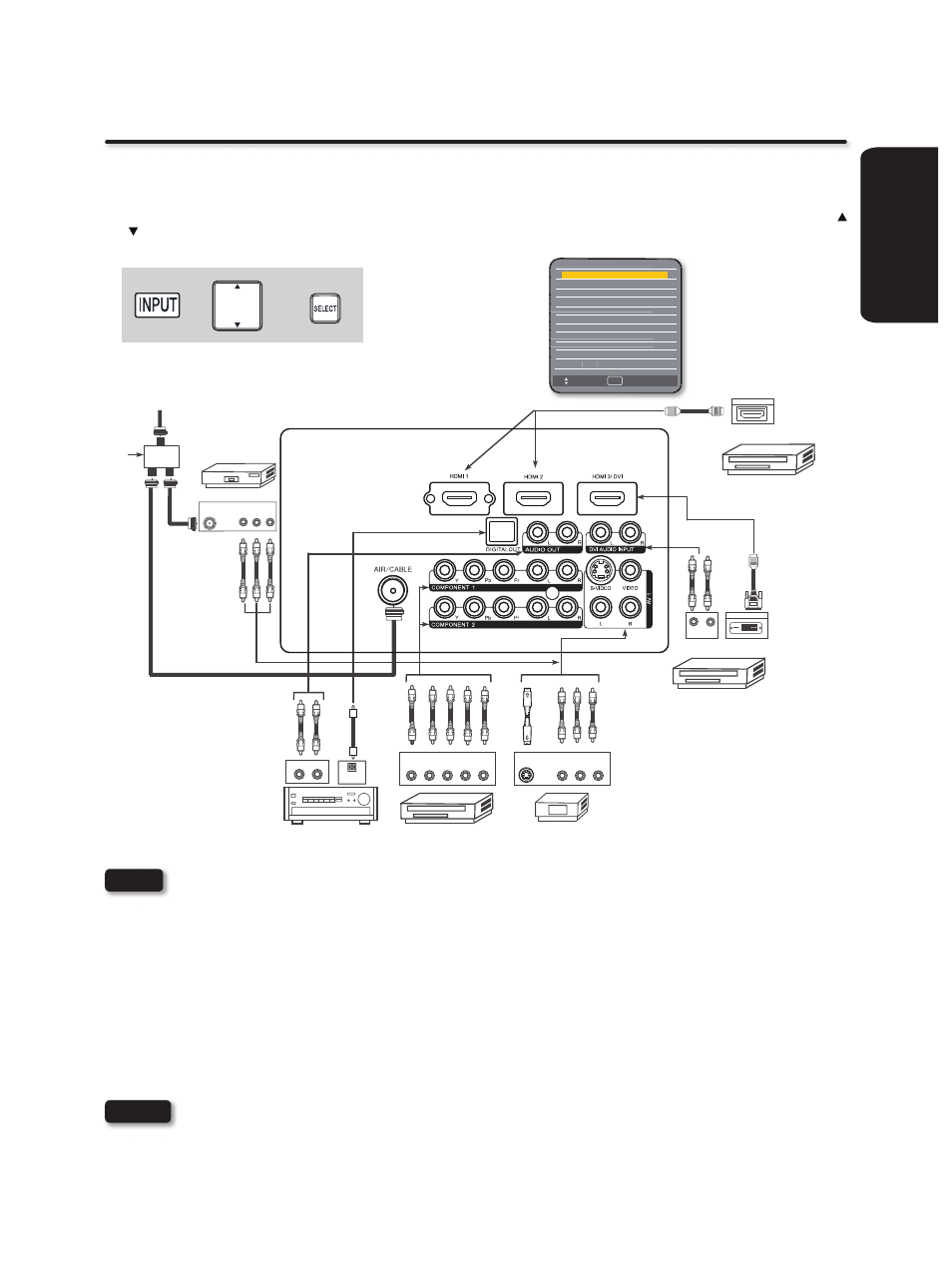

Rear Panel Connections
Cables are not included. C NOTE
TIPS ON REAR PANEL CONNECTIONS
COMPONENT Y-PbPr (COMPONENT 1 & 2) or HDMI (1, 2 & 3) connections are provided for high performance DVD players, VCRs ♦
etc. that have this feature. Use these connections in place of the standard video connection if your device has this feature.
If your device has only one audio output (mono sound), connect it to the left audio jack on (L) the Rear Panel.
♦
Refer to the operating guide of your other electronic equipment for additional information on connecting your hook-up cables. ♦
Connect only 1 component (VCR, DVD player, camcorder, etc.) to each input jack. ♦
Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV’s Pb input and the ♦
components R-Y output to the TV’s Pr input.
Your component outputs may be labeled Y-CbCr. In this case, connect the components Cb output to the TV’s Pb input and the
♦
components Cr output to the TV’s Pr input.
It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PbPr inputs. (See page 31).
♦
When using a HDMI input from a Set-Top-Box, it is recommended to use a 1080p, 1080i or 720p input signal. ♦
When the HDMI input is a 1080p signal, it is recommended that the length of the cable should be less than 5 meters. ♦
Completely insert all connection cord plugs when connecting to rear panel jacks. The picture and sound that is played back •
will be abnormal if the connection is loose.
Cable plugs are often color-coded. Match colors of plugs and terminals, i.e. connect red to red, white to white, etc.
•
• NOTES
Outside antenna
or
Cable TV coaxial cable
2-Way
signal
splitter
HDMI
to
HDMI
HDMI
to
DVI
HDMI DIGITAL
OUTPUT CAPABILITY
DIGITAL
OUTPUT CAPABILITY
DVD PLAYER
VIDEO GAME
with Composite
video capability
HDTV SET-TOP BOX
DVD PLAYER
with Component
Output capability
HDMI OUTPUT
DIGITAL OUTPUT
AUDIO OUT
OUTPUT
S-Video Video L R
OPTICAL
IN
VCR
V L R
ANT
IN
STEREO SYSTEM
AMPLIFIER
OUTPUT
Y P
B
/C
B
P
R
/C
R
L R
The exact arrangement you use to connect the VCR, Camcorder, DVD player, or HDTV Set-Top-Box to your LCD TV is dependent on the
model and features of each component. Check the operating guide of each component for the location of video and audio inputs and outputs.
Before Operating External Video Sources
Connect an external source to one of the INPUT terminals, then press the INPUT button to show the Inputs List. Use the CURSORS (
and ) to select the Input of your choice. Then press the SELECT button to confirm your choice (see page 19).
Example: Selecting the
TV (Air/Cable) Input and
highlight “0.TV”.
+ +
Move Select SEL
1. AV 1
2. AV 2
3. Componet 1
4. Component 2
5. RGB
6. HDMI 1
7. HDMI 2
8. HDMI 3
9. HDMI 4
0. TV
Input List
- . HDMI 5
