FIRST TIME USE
17

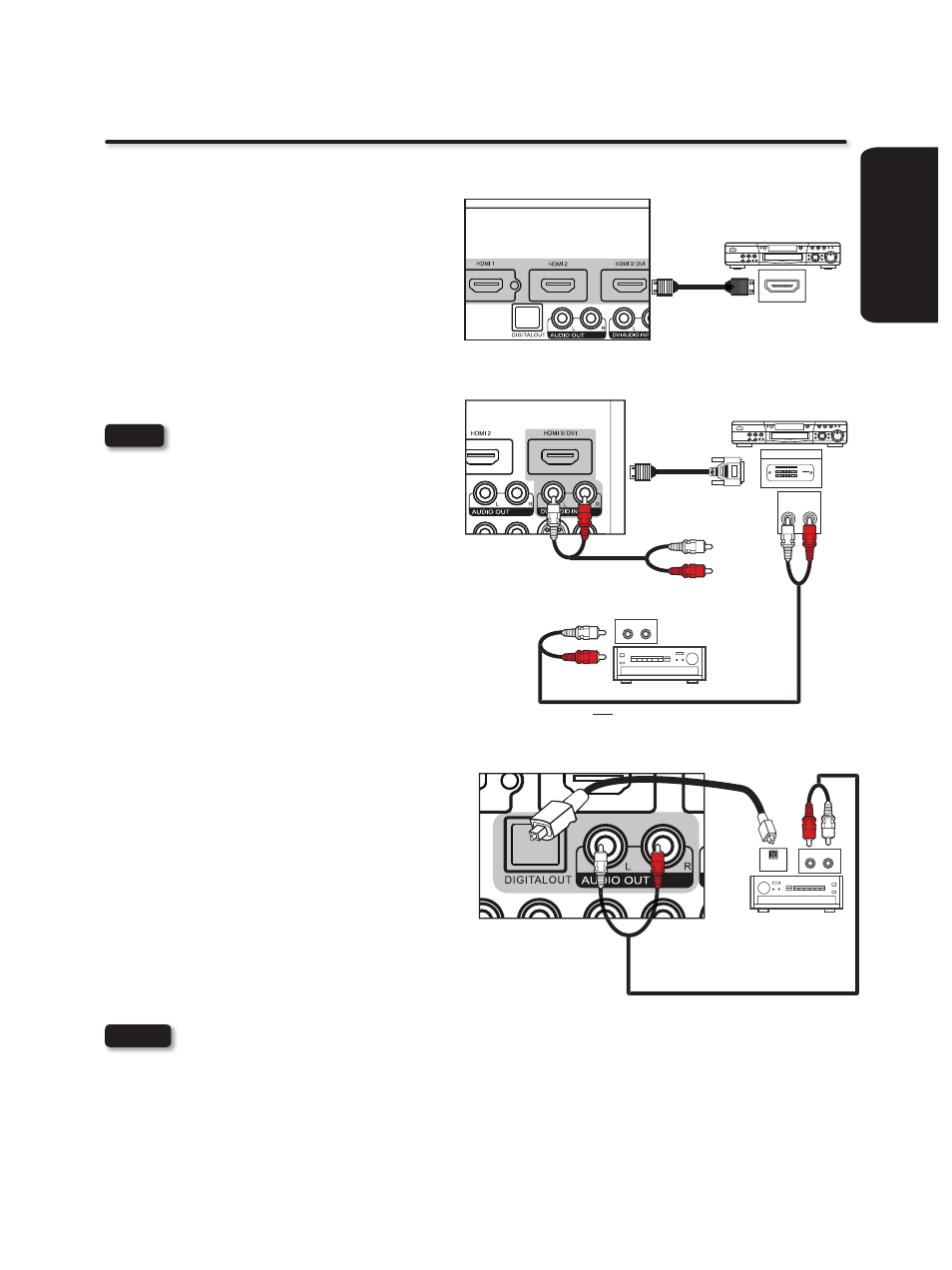

Rear Panel Connections
CONNECTING AN EQUIPMENT SOURCE WITH HDMI
OR DVI CAPABILITY TO HDMI 1, HDMI 2 & HDMI 3
Connect the HDMI or DVI to HDMI connection cable from the 1.
output of the HDTV set top box or DVD player to the HDMI
input as shown near the Rear panel at right.
With DVI output devices, connect a DVI to HDMI cabel to the 2.
HDMI 3 input. Connect the audio out L and R cables to DVI
Audio Input or connect the audio cables from the Audio output
jack from the HDTV set top box or DVD player to an external
audio amplifier as shown to the right.
Press the INPUT button, then select HDMI 1 or 2 or 3 to view 3.
the program from the HDTV SET-TOP BOX or DVD player.
Completely insert the connection cord plugs when •
connecting to the rear panel jacks. The picture and
sound that is played back will be abnormal if the
connection is loose.
When using a DVI to HDMI cable, connect the Audio
•
Out L and R cables to an external audio amplifier.
The HDMI input on HDMI 1, 2, 3, 4 and 5 contains
•
the copy protection system called High-bandwidth
Digital Content Protection (HDCP). HDCP is a
cryptographic system that encrypts video signals
when using HDMI connections to prevent illegal
copying of video contents.
HDMI is not a “NETWORK” technology. It
•
establishes a one-way, point-to-point connection for
delivery of uncompressed video to a display.
The connected digital output device controls the
•
HDMI interface, so proper set-up of device user
settings determines final video appearance.
Only HDMI3 can support DVI audio input.
•
•
c
NOTES
HDMI OUT
[HDMI] [HDMI]
HDMI DIGITAL
OUTPUT CAPABILITY
TV REAR PANEL
HDMI Input
DVI to HDMI Input
DIGITAL OUTPUT
DVI DIGITAL
OUTPUT CAPABILITY
TV REAR PANEL
Audio Output
L R
CONNECTING AN EXTERNAL AUDIO AMPLIFIER
To monitor the audio level of the LCD TV to an external audio
amplifier, connect the system as shown on the right. The “OPTICAL
OUT” and “AUDIO OUT” from the Rear Panel is a fixed output. The
Volume of the amplifier is controlled by the amplifier, not by the
LCD Television.
The OPTICAL OUT terminal outputs all audio sources to equipment
with Optical IN capability.
Connect an optical cable from the OPTICAL OUT to the 1.
OPTICAL IN of a separate Stereo System Amplifier as shown
on the Rear Panel on the right.
Connect an RCA stereo cable from the AUDIO OUT to the
2.
Audio input of a separate Stereo System Amplifier as shown
on the Rear Panel on the right.
Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played •
back will be abnormal if the connection is loose.
Cable plugs are often color-coded. Match colors of plugs and terminals, i.e. connect red to red, white to white, etc.
•
To return to the last channel viewed, select “0.TV” from the INPUTS menu. •
• NOTES
TV REAR PANEL
OPTICAL
IN
STEREO SYSTEM
AMPLIFIER
Optical cable
(Red) (White)
DVD Player/ Recorder
DVD Player/ Recorder
[HDMI] [DVI]
AUDIO AMPLIFIER
AUDIO IN
L R
AUDIO IN
R L
RCA Stereo cable
Note : An external Audio amplifier can be
use for the same purpose.
Or
