Rear Panel Connections
Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played •
back will be abnormal if the connection is loose.
Cable plugs are often color-coded. Match colors of plugs and terminals, i.e. connect red to red, white to white, etc.
•
To return to the last channel viewed, select “0.TV” from the INPUTS menu. •
•
•
NOTES

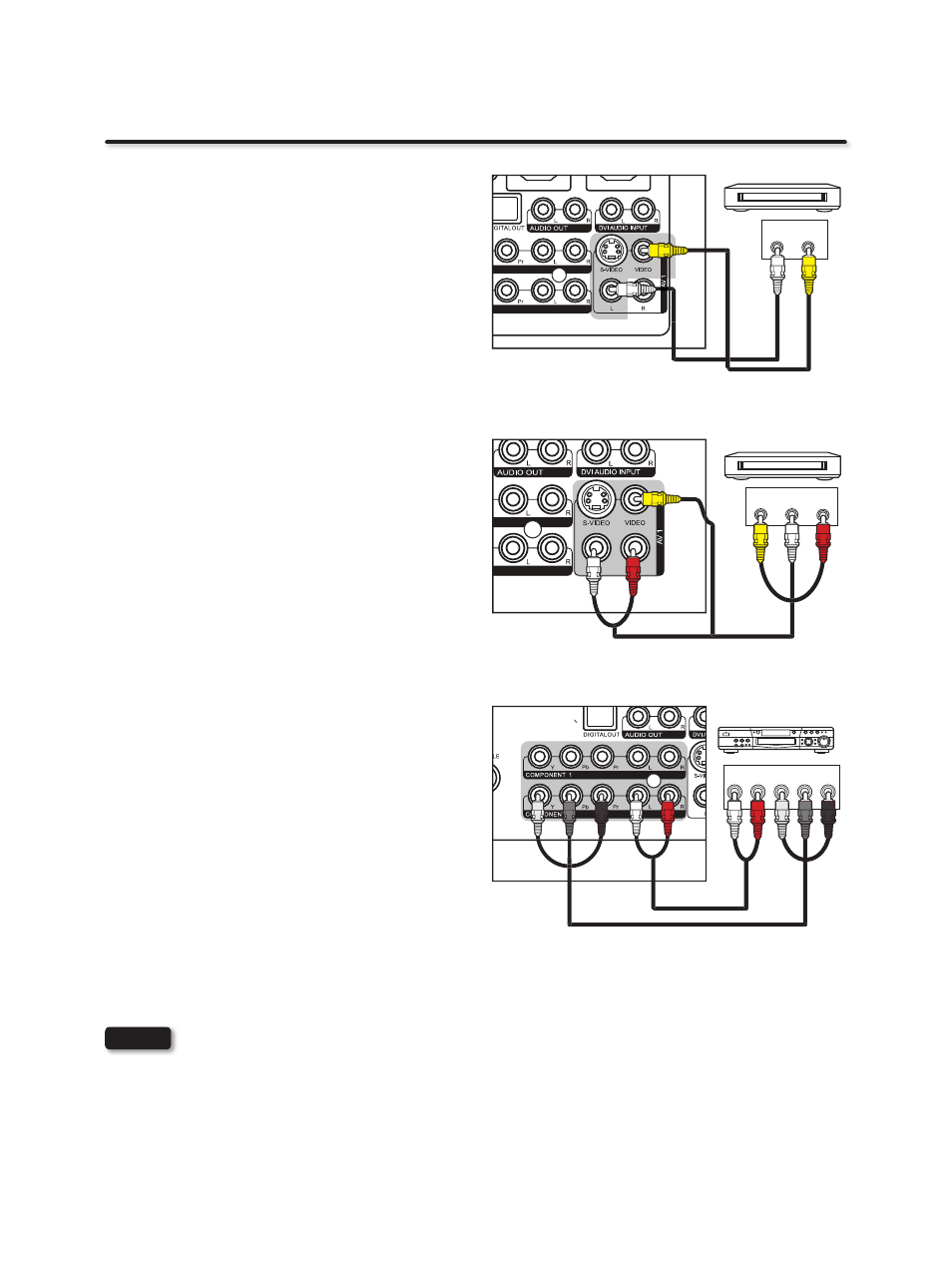

CONNECTING A COMPONENT AND STEREO AUDIO
SOURCE TO COMPONENT 1 or 2: YPbPr
Connect the Y, Pb/Cb, Pr/Cr and AUDIO cables from the Y, Pb/ 1.
Cb, Pr/Cr OUT and AUDIO OUT jacks of the DVD PLAYER or
HDTV Set-Top-Box to the
COMPONENT 1 or 2 YPbPr and
AUDIO jacks. A DVD connection to Rear Panel COMPONENT
2 example is shown on the right.
Press the INPUT button, then select 2. COMPONENT 1 or 2
from the INPUTS menu to view the program from the DVD
player or HDTV Set-Top Box.
TV REAR PANEL
Output
L R Y P B P R
White Red Green Blue Red
DVD Player/ Recorder
CONNECTING A VIDEO AND MONAURAL AUDIO
SOURCE TO AV1.
Connect the VIDEO and AUDIO cable from the VIDEO and 1.
AUDIO OUT jack of the VCR to the AV1 (VIDEO) and L(AUDIO)
jack, as shown on the Rear Panel on the right.
Press the INPUT button, then select AV1 from the INPUTS 2.
menu to view the program from the VCR.
Select Audio menu, set Sound mode to “Custom”, and set 3.
“SRS Trusurround HD” to “On”.
OUTPUT
VIDEO AUDIO
TV REAR PANEL
VCR
(Y
ellow)
(White)
CONNECTING A VIDEO AND STEREO AUDIO SOURCE
TO AV1.
Connect the VIDEO and AUDIO cables from the VIDEO OUT 1.
and AUDIO OUT jacks of the VCR to the AV1 (VIDEO)jacks.
A VCR connection to Rear Panel AV1 example is shown on
the right.
Press the INPUT button, then select AV1 from the INPUTS 2.
menu to view the program from the VCR.
OUTPUT
VIDEO L R
TV REAR PANEL
(Y
ellow)
(White) (Red)
VCR
