PREPARATION FOR USE

- 12 -

27. VIDEO OUT jack

-Connect to a video input jack of your video camera or another

VCR.
28. VIDEO IN jack

-Connect to a video output jack of your video camera or another

VCR.
29. CH3/CH4 selector switch

-Use to select a video output channel (3 or 4) for

playback from the VCR.
30. ANT. OUT terminal

-Connect to an antenna input terminal of your TV.

PREPARATION

FOR

USE

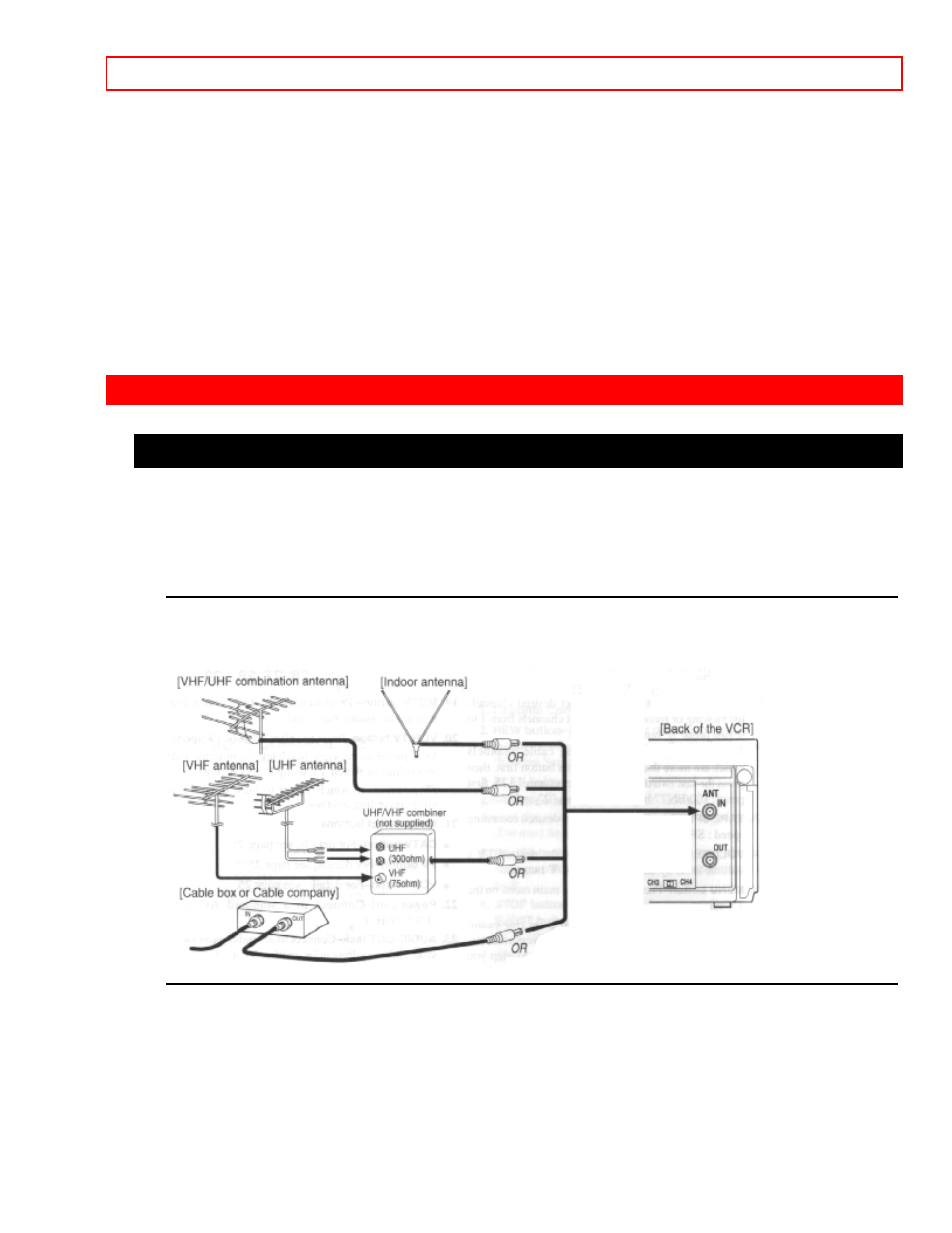

CABLE CONNECTIONS

For some of the most common types of connections, see the following drawings. Use
only one connection. For any further complex connections, please contact your local
dealer or other qualified persons. (You may need additional accessories which are not
supplied).

1 Disconnect the antenna or cable from your TV.

2 Connect the antenna or cable to the ANT.IN jack of your VCR.

3 Connect one end of the coaxial cable (supplied) to the ANT.OUT jack of your VCR.

4 Connect the other end of the coaxial cable (supplied) to the UHF/VHF antenna jacks.
