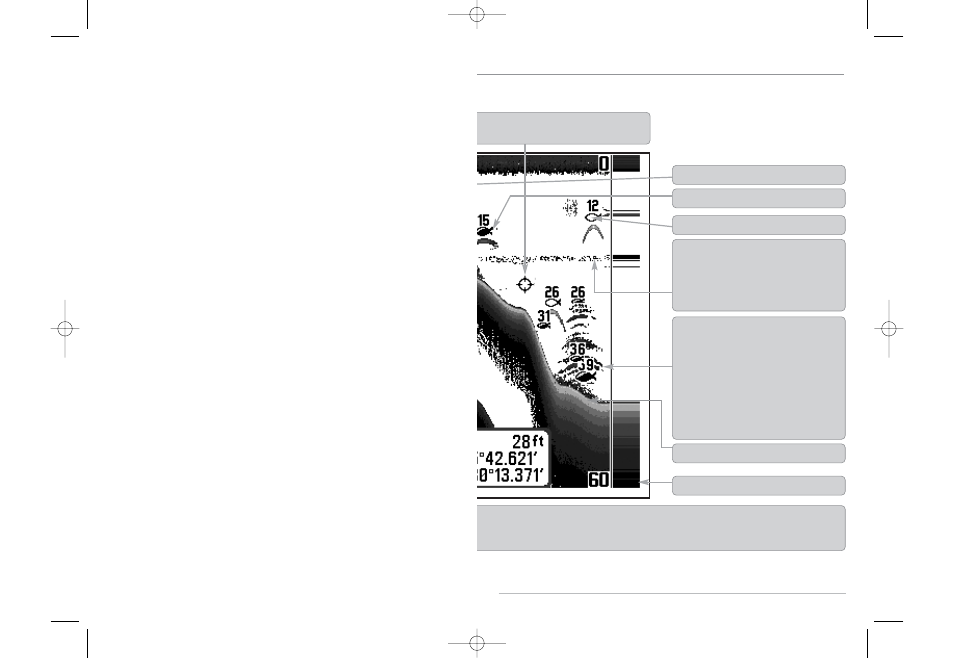

What’s On the Sonar Display
The 700 Series™ can display a variety of useful information about the area under and adjacent to your boat, including the following items:
Timer - elapsed time
with Temp/Speed
Depth - water depth; can be set to alarm when the
water becomes too shallow.
Speed - if a Temp/Speed accessory or GPS Receiver
is attached, the 700 Series™ can display the speed
of the boat, and can keep a Triplog of nautical or
statute miles traveled.
Second Sonar Return - when the sonar signal
bounces between the bottom and the surface of
the water and back again. Use the appearance of
the second return to determine bottom hardness.
Hard bottoms will show a strong second return,
while soft bottoms will show a very weak one or
none at all.
Cursor Dialog Box - indicates cursor depth on the display and the depth of the bottom directly below the cursor. In addition, the Latitude and Longitude of
the cursor position is shown, the distance to travel to the cursor position and the bearing to the cursor position. A waypoint can be marked at the
cursor position for later retrieval and use.
RTS® (Real Time Sonar) Window
Soft Bottom
Thermoclines - layers of water with different
temperatures that appear at different depths and
different times of the year. A thermocline typically
appears as a continuous band of many gray levels
moving across the display at the same depth.
Fish - fish are displayed as arches and/or fish
icons, and the unit can be set to alarm when a fish
of a certain size is detected. When a target is
detected and Fish ID+
TM is on, a Fish ID+ TM symbol
with depth is displayed. The size of the symbol
shows the intensity of the sonar return. The unit
will clearly show schools of Bait Fish as "clouds"
of different shapes and sizes, depending on the
number of fish and boat speed. Bait Ball
Hard Bottom
Rocky Bottom
Distance - distance
traveled with
200 kHz, Narrow Beam Shaded Fish Symbol
NOTE: Entries in this view that list (with Temp/Speed or GPS Receiver) are available if either device is connected to the 700 Series™ Fishing System. If both devices are connected, then only the information from the GPS
receiver will be displayed on the view.
Temperature - water surface temperature.
Average Speed -
average speed reading
Cursor - available in Freeze Frame and can be positioned in the Sonar View to provide depth of a
sonar return and bottom depth below the cursor.
83 kHz, Wide Beam Hollow Fish Symbol
Structure - where fish may be hiding.
