20

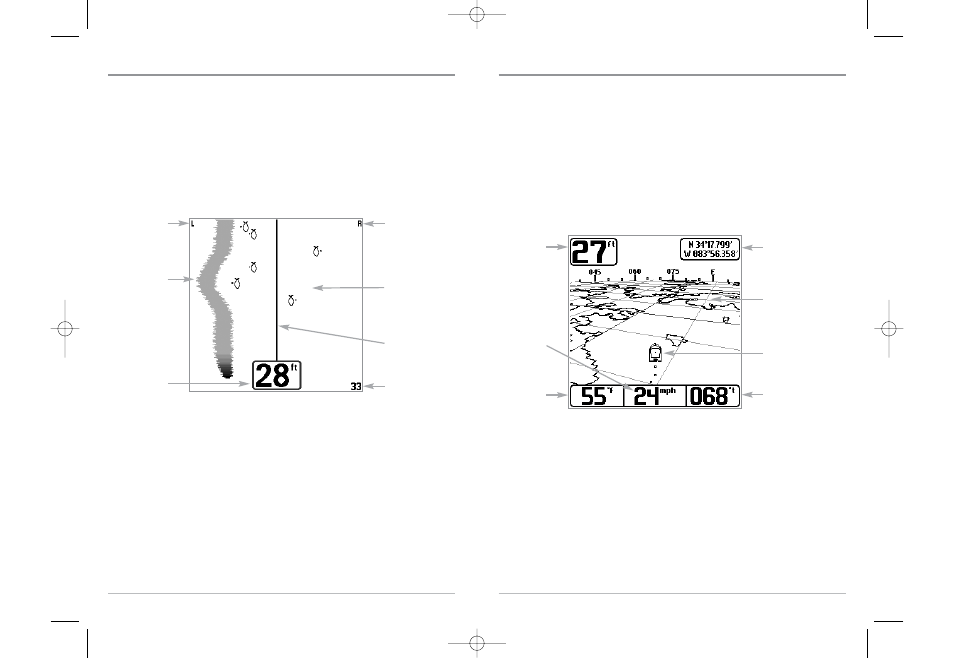

Bird’s Eye View
Bird's Eye View - This view shows a 3-D, perspective view of the track and the chart’s land contour
from a point above and behind the boat (the eye point). As the boat turns, the eye point moves to
follow the boat.
When you press the 4-WAY Cursor key in the Bird’s Eye View, the position of the eye point will shift.
This allows you to move and turn the eye point so that you can look off to the sides, or even behind
the boat. Pressing the RIGHT or LEFT arrow keys on the 4-WAY Cursor key turns the eye point right
or left, while pressing the UP arrow key moves the eye point forward, and pressing the DOWN
arrow key moves the eye point backward.
Pressing the EXIT key moves the eye point back to its original position behind and above the boat.
Bird’s Eye View
Depth
Land Contours
Boat Icon
Water Surface
Temperature
Latitude and
Longitude
Position of Boat
Speed of Boat
Bearing of Boat
with Respect to
True North
19
WideSide® View (with optional-purchase WideSide® transducer)
WideSide® View is only available if you have connected a WideSide® transducer accessory
and when Transducer Select is set to WideSide® (see Sonar Menu Tab: Transducer Select). The
WideSide® transducer requires a separate purchase. The WideSide® View displays
information from the 455 kHz WideSide® transducer. Three views are available: Left, Right and
Both. The default view is Both. Information from both the left and right beams are displayed
simultaneously. The depth of the water beneath the boat is always displayed. A bottom
contour may be present while bank fishing or fishing river channels. When fishing in the open
water, a bottom contour will not be present, and only sonar returns from either debris or fish
will be displayed.
WideSide View
Left Side View
Bank Contour
Water Surface
Line
Depth
Right Side View
Open Water
(no bottom
contour visible
on-screen)
Side Beam
Depth Range
