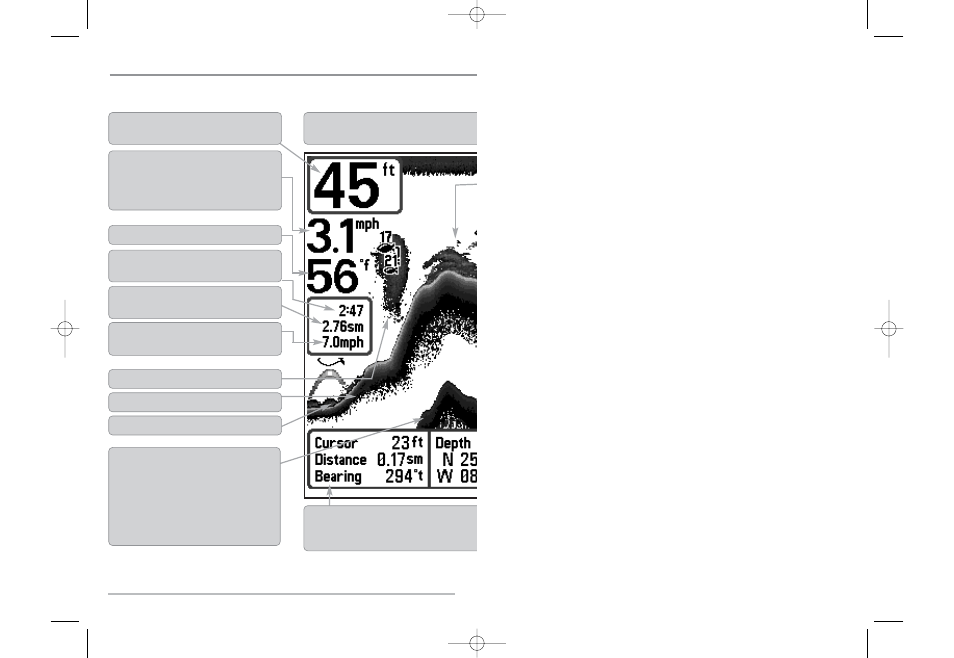

What’s On the Display
The 700 Series™ can display a variety of useful information about the area under and adjacent to your boat, including the following items:
Timer - elapsed time with Temp/Speed Accessory
or GPS Receiver.
Depth - water depth; can be set to alarm when the
water becomes too shallow.
Speed - if a Temp/Speed accessory or GPS Receiver
is attached, the 700 Series™ can display the speed
of the boat, and can keep a Triplog of nautical or
statute miles traveled.
Second Sonar Return - when the sonar signal
bounces between the bottom and the surface of
the water and back again. Use the appearance of
the second return to determine bottom hardness.
Hard bottoms will show a strong second return,
while soft bottoms will show a very weak one or
none at all.
Cursor Dialog Box - indicates cursor depth on the display and the depth of the bottom directly below the cursor. In addition, the Latitude and Longitude of
the cursor position is shown, the distance to travel to the cursor position and the bearing to the cursor position. A waypoint can be marked at the
cursor position for later retrieval and use.
RTS® (Real Time Sonar) Window
Soft Bottom
Thermoclines - layers
of water with
d i f f e r e n t
temperatures that
appear at different
Fish - fish are
displayed as arches and/or fish icons, and the
unit can be set to alarm when a fish of a certain
size is detected. When a target is detected and
Fish ID+
TM is on, a Fish ID+ TM symbol with depth is
displayed. The size of the symbol shows the
intensity of the sonar return. The unit will clearly
show schools of Bait Fish as "clouds" of different
shapes and sizes, depending on the number of
Bait Ball
Hard Bottom
Rocky Bottom
Distance - distance traveled with Temp/Speed
Accessory or GPS Receiver.
200 kHz, Narrow
NOTE: Entries in this view that list (with Temp/Speed or GPS Receiver) are available if either device is connected to the 700 Series™ Fishing System. If both devices are connected, then only the information from the GPS
receiver will be displayed on the view.
Temperature - water surface temperature.
Average Speed - average speed reading with
Temp/Speed Accessory or GPS Receiver.
Cursor - available in Freeze Frame and can be positioned in the Sonar View to provide depth of a
sonar return and bottom depth below the cursor.
83 kHz, Wide Beam
Structure - where fish Do Not print this page
