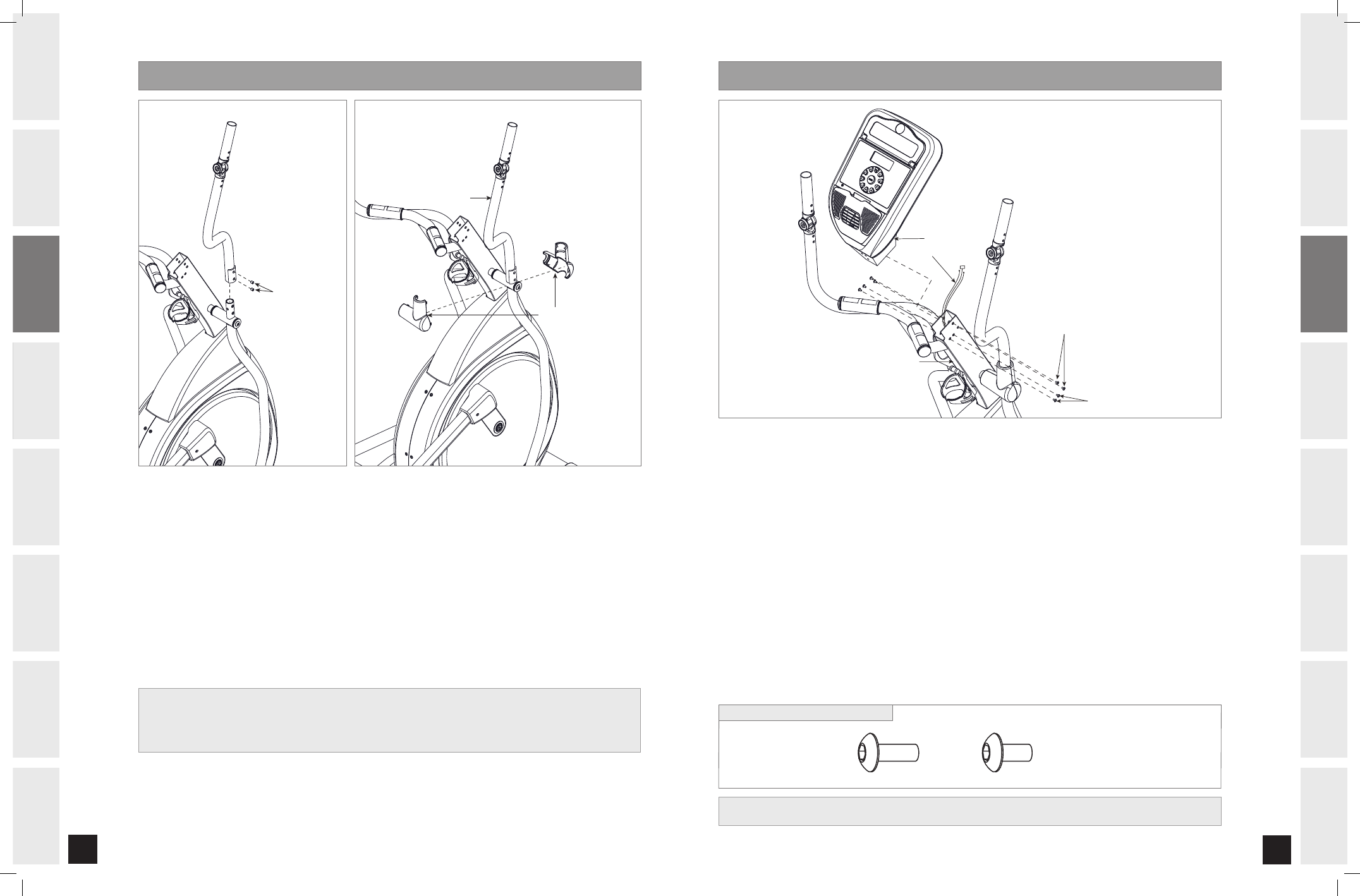

ASSEMBLY STEP
UPPER HANDLEBAR
PRE-ATTACHED
SCREWS
HANDLEBAR COVERS
NOTE: There is NO hardware bag for this step.
A) Slide UPPER HANDLEBARS onto LOWER HANDLEBARS and align NOTCH with TAB making sure handlebars
are joined together completely. Secure UPPER HANDLEBARS to LOWER HANDLEBARS using PRE-ATTACHED
SET SCREWS.
B) Snap the front and back HANDLEBAR COvERS together onto the UPPER HANDLE BARS.
Note the position of the snap tabs on the covers before snapping into position.
C) Repeat on other side.
ASSEMBLY STEP 7
PRE-ATTACHED
SCREWS
WATER BOTTLE HOLDER
BOLTS (Q)
BOLTS (P)
CONSOLE WIRES
CONSOLE
CONSOLE WIRES
A) Open HARDWARE BAG FOR STEP 7.
B) Attach the CONSOLE MAST wires to the CONSOLE.
C) Carefully tuck the CONSOLE MAST wires into the CONSOLE MAST before attaching the CONSOLE.
DO NOT PINCH WIRES!
D) Attach CONSOLE to the CONSOLE MAST using the 4 BOLTS (P) and 4 BOLTS (Q).
NOTE: The longer bolts are closest to the user when on the Elliptical.
Connect AC ADAPTOR to the AC ADAPTOR INPUT, located at front of the main frame. Connect
ADAPTOR to a power outlet. Flip the switch to the ON position. After a “beep”, the CONSOLE will
turn on.
UPPER HANDLEBAR
PRE-ATTACHED
SCREWS
HANDLEBAR COVERS
YOU’RE FINISHED!
Reminder: The upper and lower handlebars are marked with an L if they are to be used on the left-hand side
of the elliptical or an R if they are to be used on the right-hand side of the elliptical. If the handlebars are
assembled on the incorrect side of the elliptical, the unit will not function correctly.
BOLT (P)
15 mm
Qty: 4 BOLT (Q)
10 mm
Qty: 4
HARDWARE BAG FOR STEP 7 CONTENTS :
