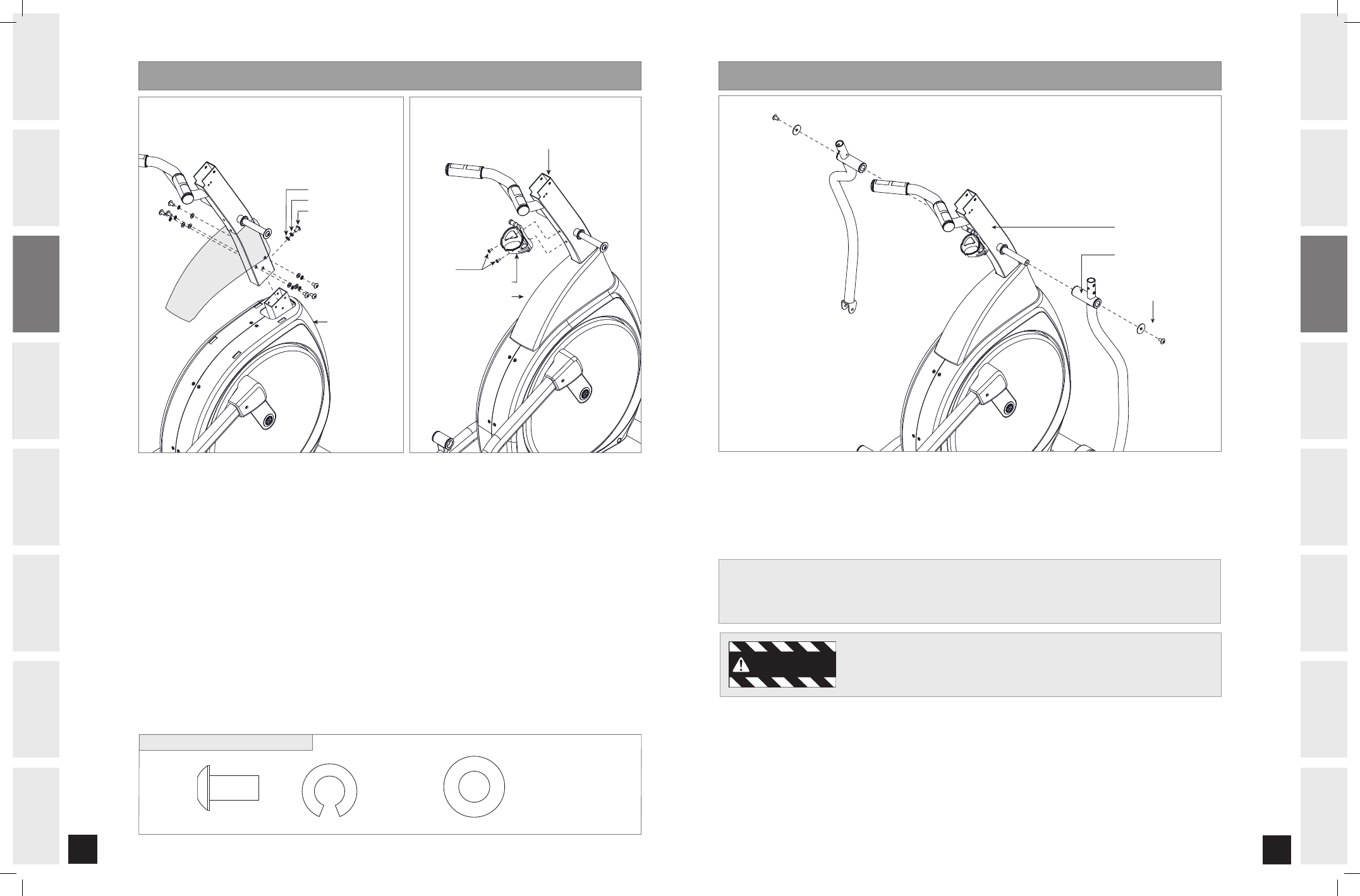

ASSEMBLY STEP 2
BOLT (B)
SPRING WASHER (C)
FLAT WASHER (D)
MAIN FRAME
CONSOLE MAST
TOP COVER
WATER BOTTLE HOLDER
PRE-ATTACHED
SCREWS
A) Open HARDWARE BAG FOR STEP 2.
B) Carefully slide the TOP COvER up over the CONSOLE MAST.
C) Carefully pull the CONSOLE WIRES through the CONSOLE MAST using the twist tie located inside the
CONSOLE MAST.
D) Attach the CONSOLE MAST to the MAIN FRAME using 7 BOLTS (B), 7 SPRING WASHERS (C) and
7 FLAT WASHERS (D).
E) Slide the TOP COvER down onto the MAIN FRAME.
F) Attach the WATER BOTTLE HOLDER to the CONSOLE MAST using 2 PRE-ATTACHED SCREWS.
BOLT (B)
15 mm
Qty: 7 SPRING WASHER (C)
15.4 mm
Qty: 7 FLAT WASHER (D)
20 mm
Qty: 7
HARDWARE BAG FOR STEP 2 CONTENTS :
BOLT (B)
SPRING WASHER (C)
FLAT WASHER (D)
MAIN FRAME
CONSOLE MAST
TOP COVER
WATER BOTTLE HOLDER
PRE-ATTACHED
SCREWS
ASSEMBLY STEP
LOWER HANDLEBAR
CONSOLE MAST
PRE-ATTACHED
BOLT & WASHER
A) There is no hardware bag for this step.
B) Remove PRE-ATTACHED BOLTS & WASHERS from CONSOLE MASTS.
C) Slide LOWER HANDLEBARS onto CONSOLE MAST and attach by using PRE-ATTACHED BOLTS & WASHERS.
Reminder: The upper and lower handlebars are marked with an L if they are to be used on the left-hand side
of the elliptical or an R if they are to be used on the right-hand side of the elliptical. If the handlebars are
assembled on the incorrect side of the elliptical, the unit will not function correctly.
After handlebars are assembled they will rotate freely – be cautious. Until the
machine is fully assembled, do not grab the handlebars for support.
WARNING
