26 – English
Maintenance

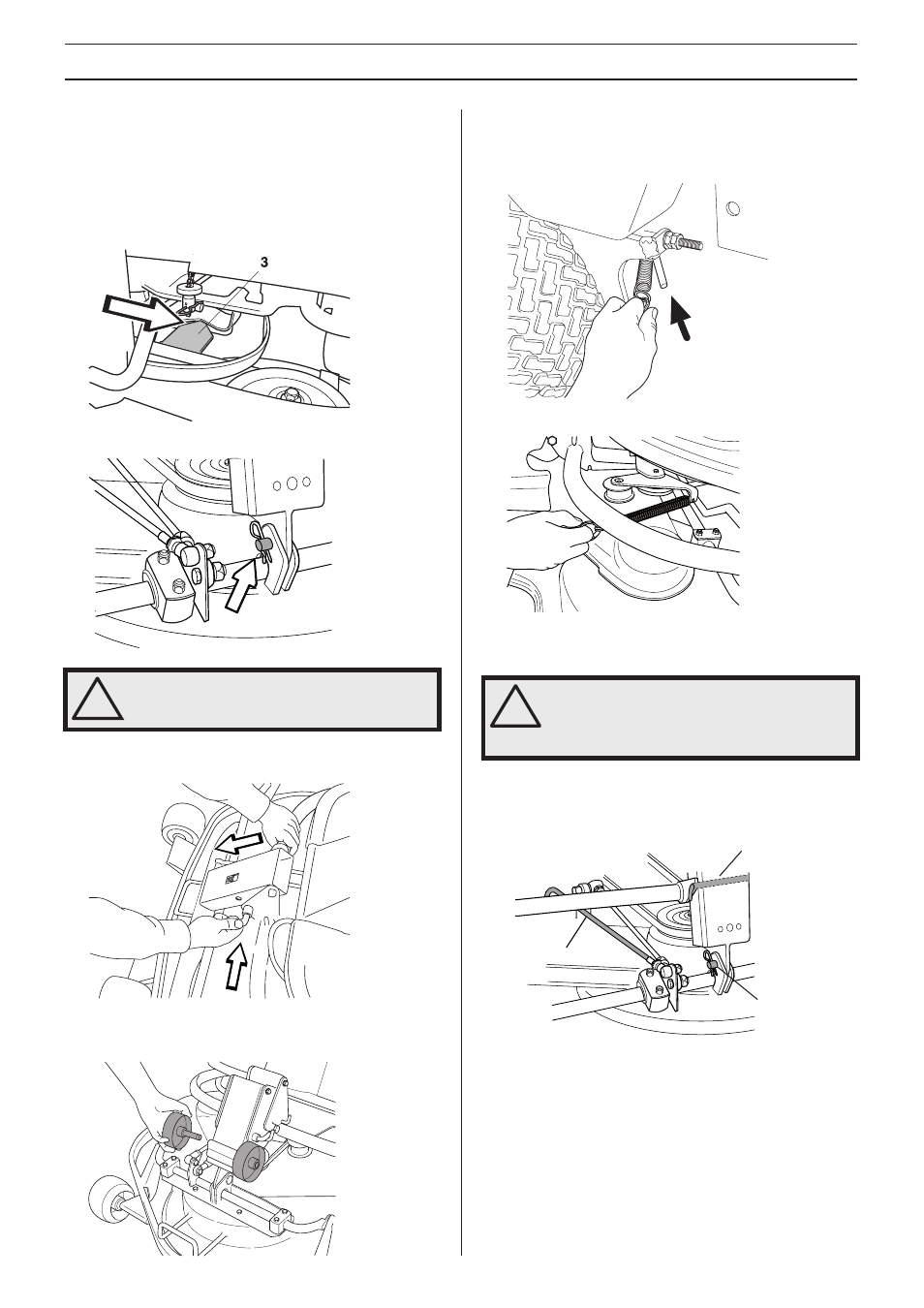

Make sure the support wheels are fitted to the cutting unit
(1).
2 Grasp the handle at the front or hold the frame of the
cutting unit (2) and slide the unit underneath the rider
mower.
Make sure that the tongue (3) on the cutting unit engages
correctly.
3 Insert the bolt and secure it with a locking pin.
4 Press down the frame and insert the pin. Fit the drive belt
around the drive wheels of the cutting unit.
5 Hook up the height adjustment strut.
6 Move the support wheels to their parking position.
7 Fit the front cover.
8 Secure the collet spring.
Rider 15V2
Rider 15V2 AWD
Removing the cutting unit
1 Carry out points 1-9 to put the cutting unit in the service
position, see Service position for the cutting unit.
2 Remove the bolt (3) and lift off the cutting unit.
Checking and adjustment of the
cutting unit’s ground pressure
To achieve the best cutting results the cutting unit should
follow the underlying surface without pressing too hard
against it.
Pressure is adjusted using a screw and spring on each side
of the Rider.
1 Check the air pressure in the tyres 60 kPa/0.6 kp/cm 2 /8.5
PSI.
!
WARNING! Observe caution to avoid
trapping your hand.
!
WARNING! Wear protective glasses when
dismantling the cutting unit. The spring
which tensions up the belt may break and
cause personal injury.
2
3
1
