598-181-0
Troubleshooting
If bell or chime does not operate:
• For Electronic Chimes: If tune does
not play completely, reverse wires
connected to the push button.
• Disconnect wires from button and touch
together. If bell or chime operates,
replace with new button.
• Check transformer, bell, or chime.
9. Once your push button and chime are
wired and functioning correctly, place
top of push button onto back and snap
bottom of push button into place (see
Figure 6).
Note: The push button must
be mounted with the keyfinder lens
facing downward.

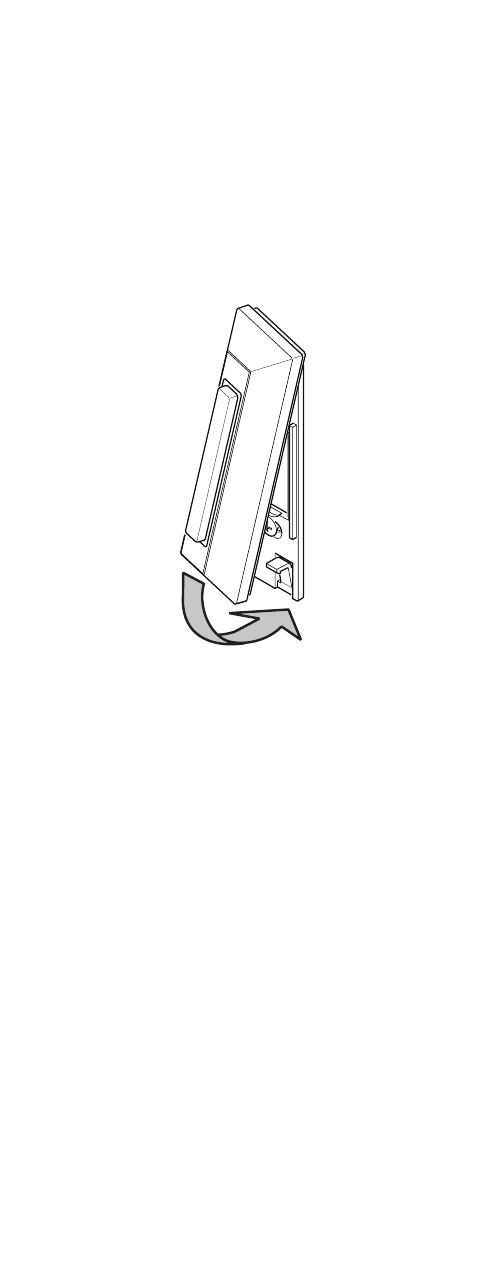

Figure 6 - Attach Push Button onto Back
