5 598-181-0

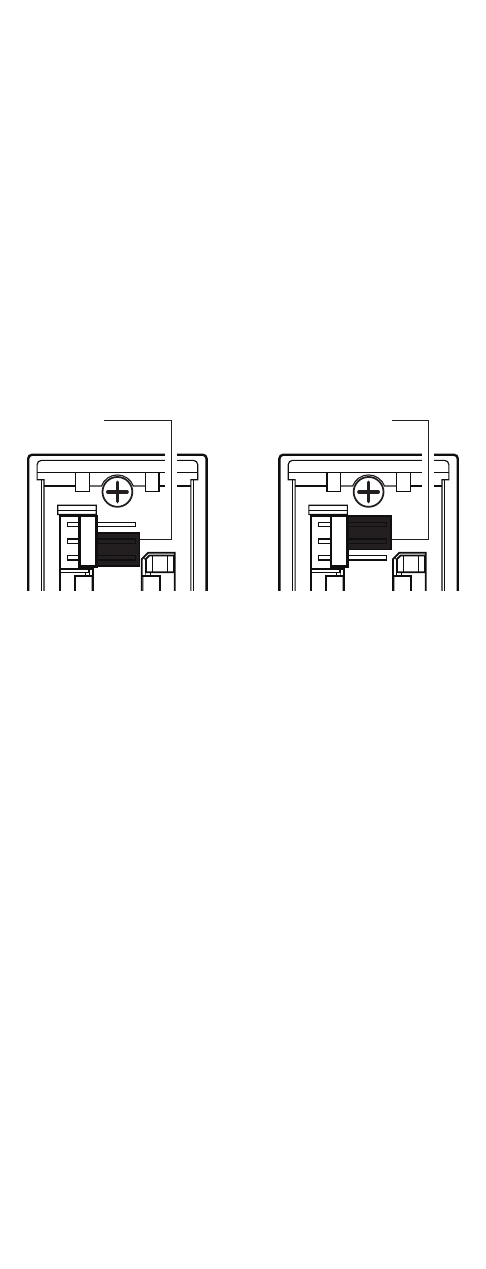

Figure 5 - Determining Correct Jumper
Position (Back of Push Button)
Jumper On
Two Top Pins
for Electronic
Chime
7. If you have an electronic chime, move
the jumper on the back of your push
button from the two bottom pins to the
two top pins (see Figure 5). Press push
button to test again.
8. If your chime still does not operate
correctly, see Troubleshooting, page 7.
Jumper On Two
Bottom Pins
for Mechanical
Chime
