How to set up VPN Failover on the LB-2 VPN or VPN 800/2
Property of HotBrick — 2005
7

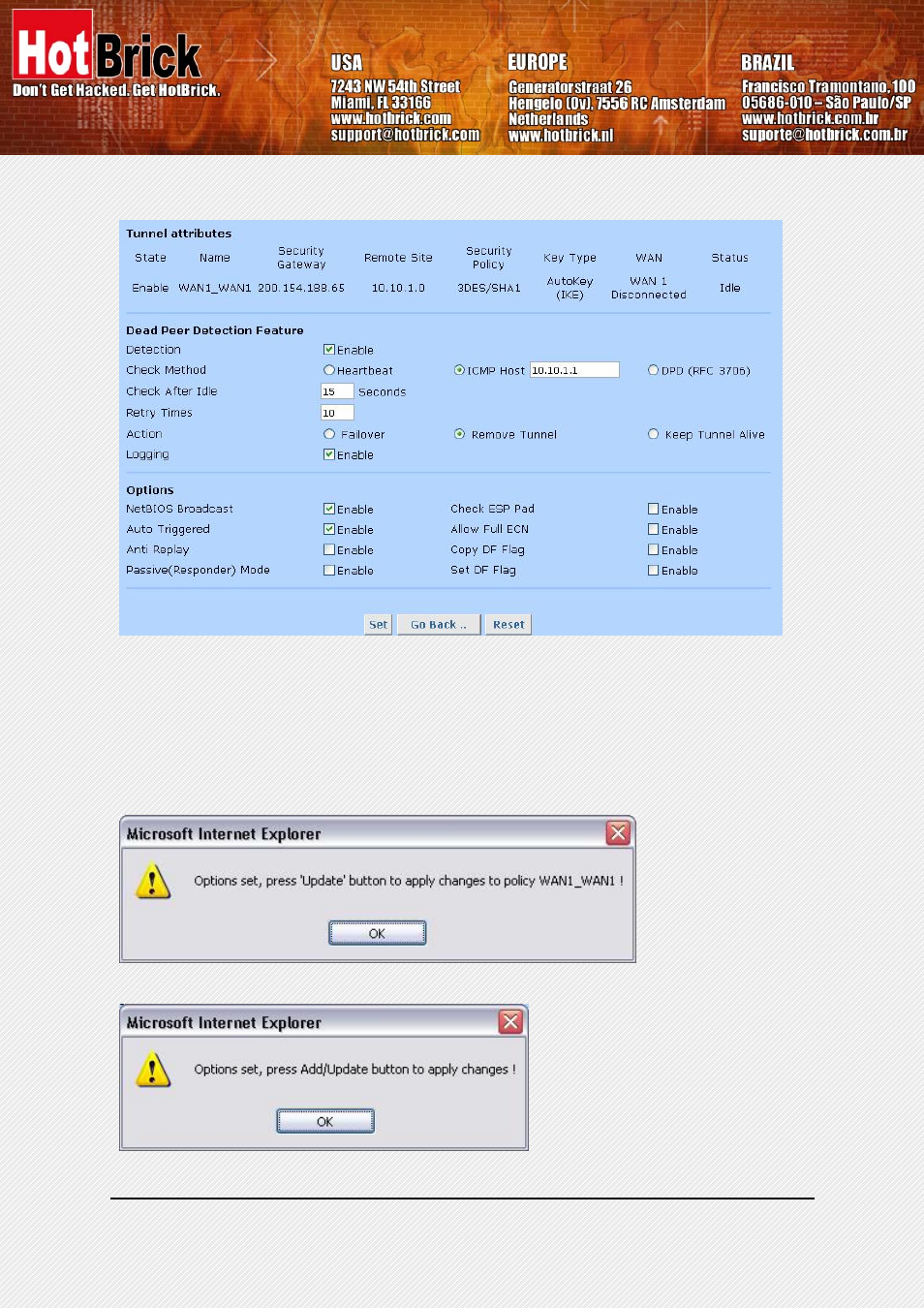

Image 5b: The VPN 800/2 Set Options page. Note that ’10.10.1.1’ is the LAN interface of the remote gateway.
NOTE: Please do not consider the ‘WAN 1 Disconnected’ and the ‘Status Idle’ information on these screenshots.
After setting everything up, click on the ‘Set’ button.
A message warning that the ‘Update’ button should be pressed will appear.
The WAN1_WAN1 setup screen will appear. Click on the ‘Update’ button.
Image 6a: The LB2 VPN Update Message.
Image 6b: The VPN 800/2 Update Message.
