How to set up VPN Failover on the LB-2 VPN or VPN 800/2
Property of HotBrick — 2005
5

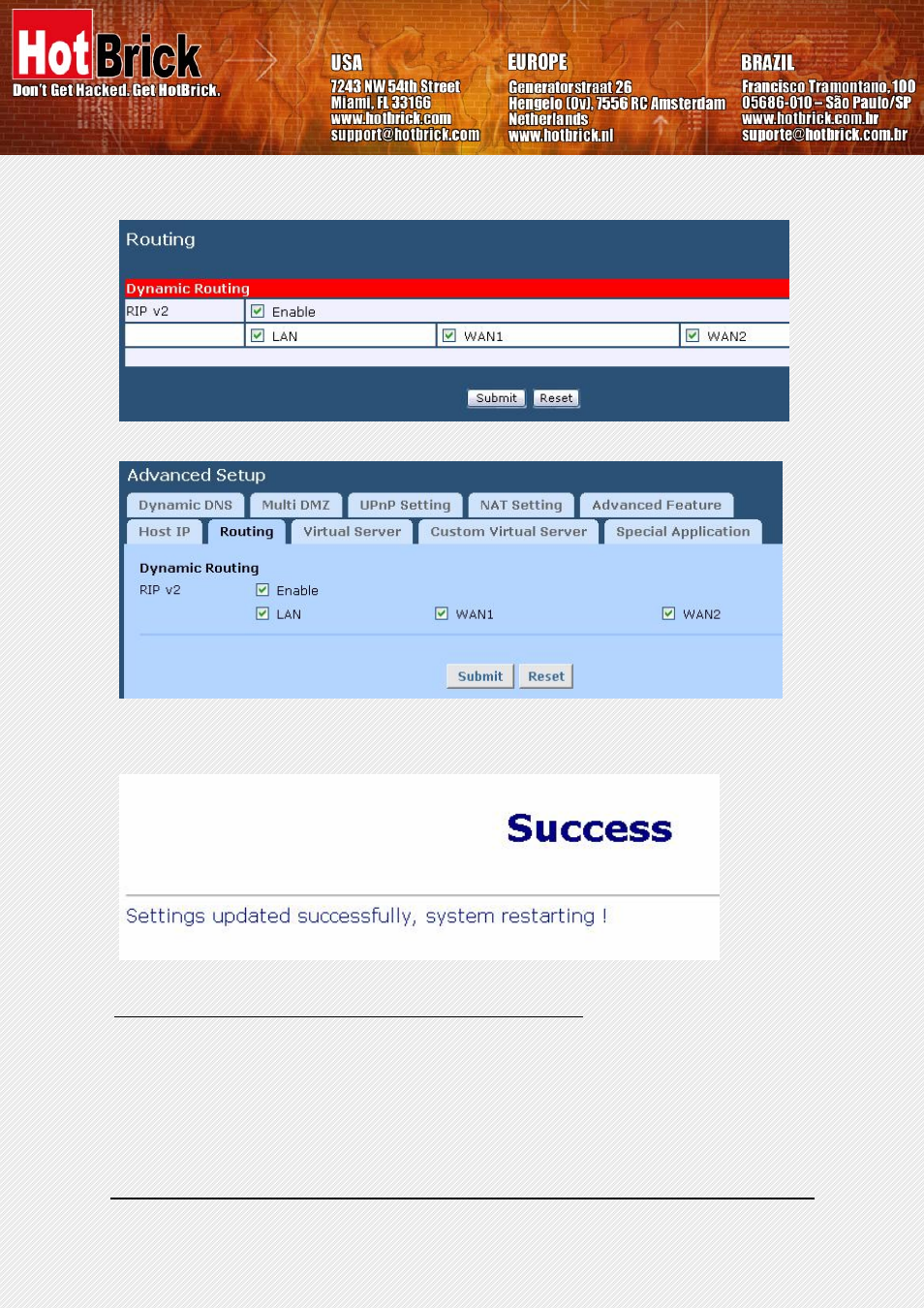

Image 3a: The LB2 VPN Routing page with all the check-boxes enabled.
Image 3b: The VPN 800/2 Routing page with all the check-boxes enabled.
The ‘system restarting’ message will appear. Wait for about 5 seconds before proceeding.
Image 4a: The LB2 VPN and VPN 800/2 restart message are identical.
Step 3: Setting the specific Options for each VPN Tunnel
For each VPN tunnel (WAN1_WAN1 or WAN2_WAN2) the ‘Set Option’ should have specific
configurations.
For the WAN1_WAN1 Tunnel on the LB2 VPN and the VPN 800/2:
Click on the ‘Set Options’ button on the WAN1_WAN1 VPN Tunnel setup screen.
The screen below (Image 5a and 5b) should appear.
