How to set up VPN Failover on the LB-2 VPN or VPN 800/2
Property of HotBrick — 2005
4
– step procedure on our download webpage. For more information, go to
http://www.hotbrick.com
and the support section, then the download page.

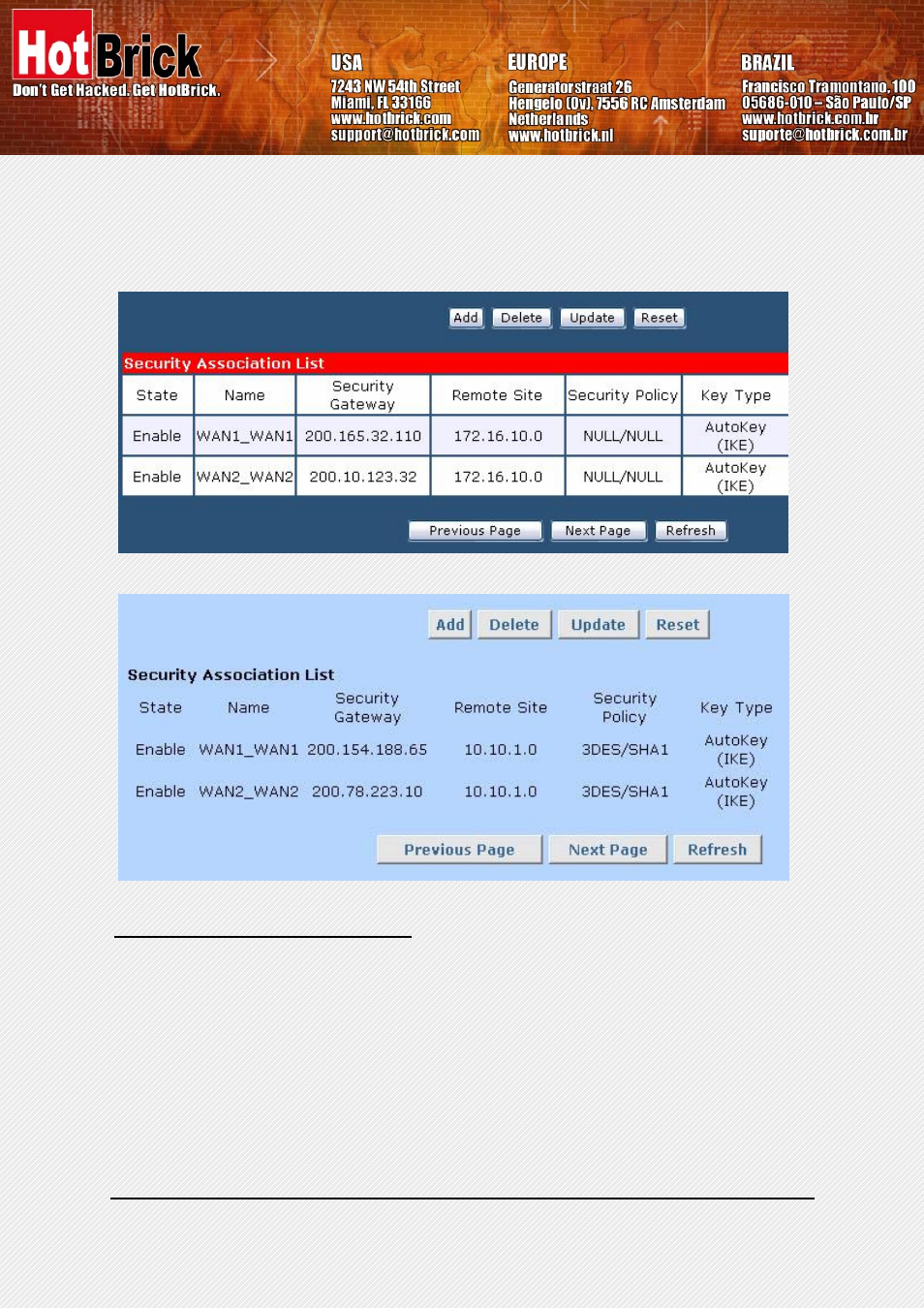

Image 2a: The LB2 VPN Tunnels.
Image 2b: The VPN 800/2 Tunnels.
Step 2: Setting up the RIP2 protocol
As shown on the screenshot below, the RIP2 protocol should be enabled and activated for all
network interfaces (LAN, WAN1 and WAN2).
Open the GUI interface of each product and click on the ‘Routing’ option under ‘Advanced
setup’.
On ‘Dynamic Routing’, click on the ‘enable’ check-box on the RIP v2 line. It should appear
checked. If it’s already checked, leave it that way.
Enable all the LAN, WAN1 and WAN2 check-boxes.
Click on the ‘Submit’ button.
