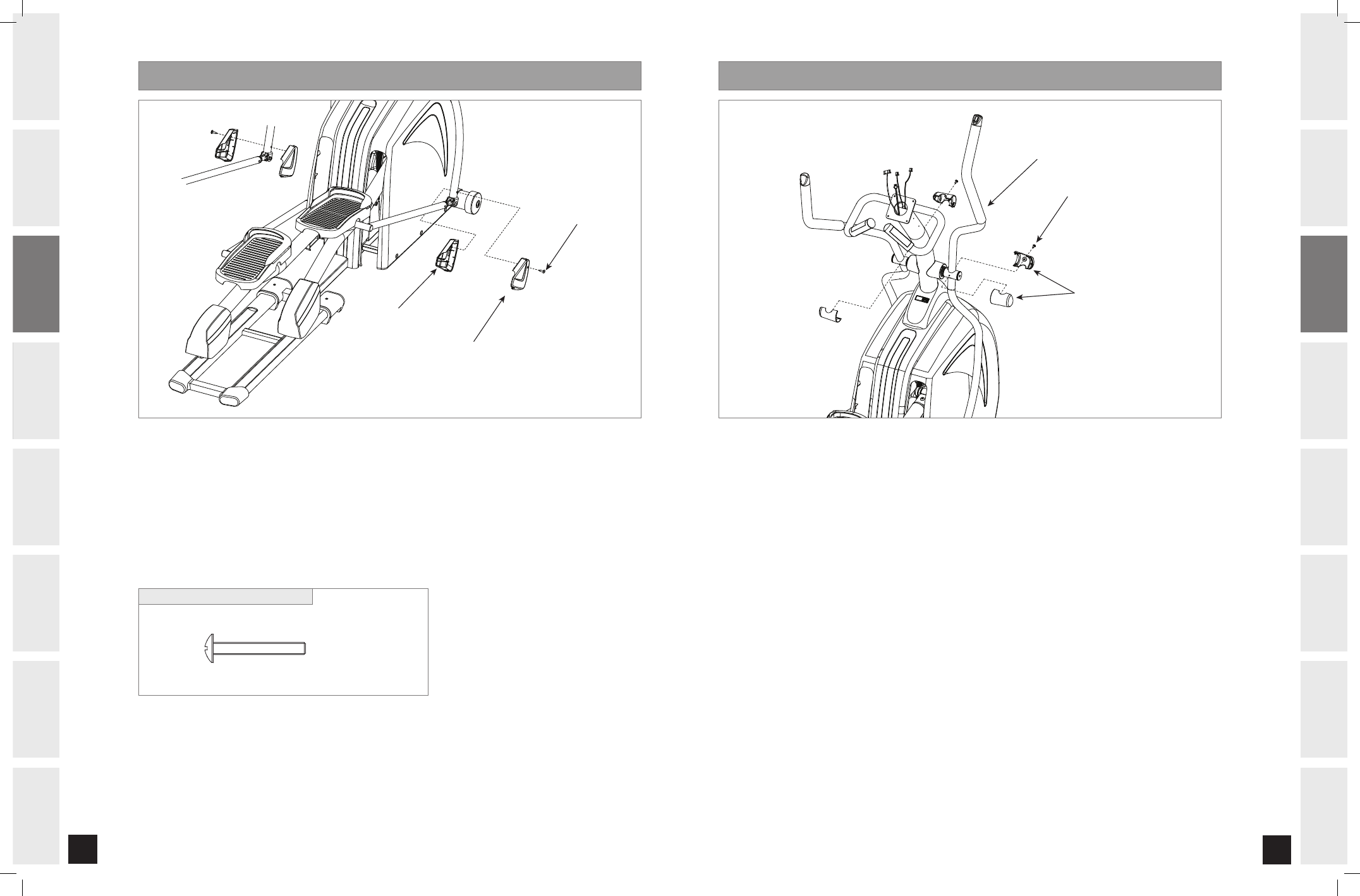

ASSEMBLY STEP
PRE-ATTACHED SCREW
HANDLEBAR COVERS
RIGHT HANDLEBAR
ASSEMBLY STEP
A ) Open HARDWARE BAG FOR STEP 8.
B) Attach the OUTSIDE ELBOW COVER to the elbow joint using 1 SCREW (L).
C) Snap the INSIDE ELBOW COVER onto the OUTSIDE ELBOW COVER. Note the position of the snap tabs before
snapping into position.
D) Repeat on other side.
NOTE: There is NO hardware bag for this step. All hardware is pre-installed.
A) Remove PRE-ATTACHED SCREW from the RIGHT HANDLEBAR.
B) Snap HANDLEBAR COVERS together over the RIGHT HANDLEBAR. Note the position of the snap tabs on the
covers before snapping into position.
C) Attach HANDLEBAR COVERS with PRE-ATTACHED SCREW.
D) Repeat on other side.
SCREW (L)
OUTSIDE ELBOW COVER
INSIDE ELBOW COVER
SCREW (L)
30 mm
Qty: 2
HARDWARE BAG FOR STEP CONTENTS :
