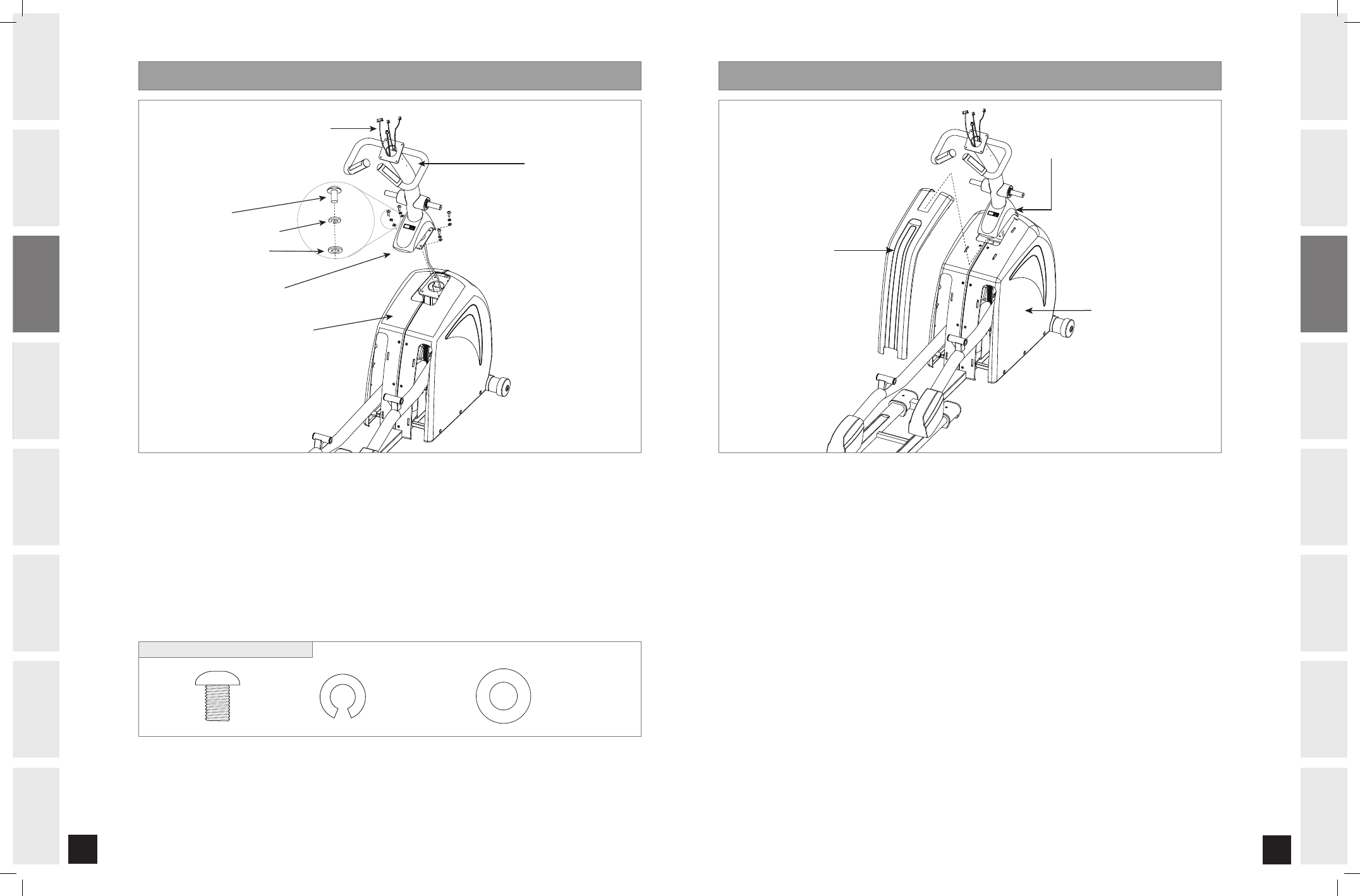

ASSEMBLY STEP 2
A) Open HARDWARE BAG FOR STEP 2.
B) Slide CONSOLE MAST BOOT onto the bottom of the CONSOLE MAST.
C) Carefully pull the CONSOLE WIRES through the CONSOLE MAST using the twist tie located inside the CONSOLE
MAST.
D) Attach the CONSOLE MAST to the MAIN FRAME using 4 BOLTS (B), 4 SPRING WASHERS (C) and 4 FLAT
WASHERS (D).
ASSEMBLY STEP
MAIN FRAME
CONSOLE WIRES
CONSOLE MAST
BOLT (B)
SPRING WASHER (C)
FLAT WASHER (D)
CONSOLE MAST BOOT
BOLT (B)
15 mm
Qty: 6 SPRING WASHER (C)
15 mm
Qty: 6 FLAT WASHER (D)
18 mm
Qty: 6
HARDWARE BAG FOR STEP 2 CONTENTS :
NOTE: There is NO hardware bag for this step.
A) Slide CONSOLE MAST BOOT up.
B) Carefully snap TOP COVER into the MAIN FRAME.
C) Slide CONSOLE MAST BOOT down over the TOP COVER.
MAIN FRAME
CONSOLE
MAST
BOOT
TOP COVER
