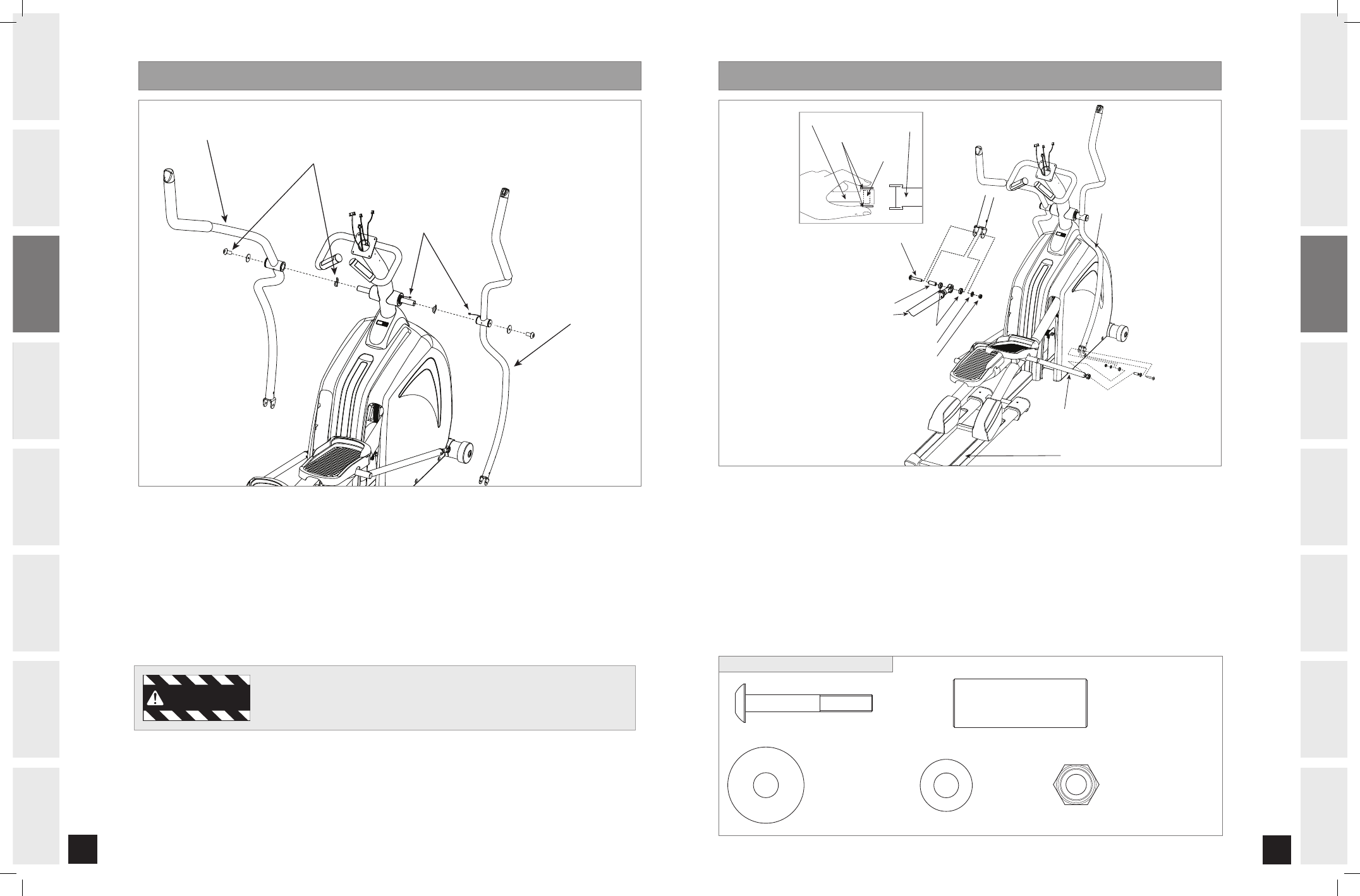

ASSEMBLY STEP
GUIDE RAIL
SPACER RINGS (I)
LOWER HANDLEBAR
NUT (K)
BOLT (G)
LOWER LINK ARM
SPACER (H)
LOWER LINK ARM
SPACER
TEFLON WASHERS
LOWER
HANDLEBAR
WASHER (J)
LOWER LINK ARM
A) Open HARDWARE BAG FOR STEP 7.
B) Slide SPACER (H) into LOWER LINK ARM.
C) Place SPACER RINGS (I) on both sides of SPACER (H). While holding SPACER RINGS (I), slide LOWER LINK
ARM into bottom end of LOWER HANDLEBAR.
D) Insert BOLT (G) into LOWER HANDLEBAR and secure using WASHER (J) and NUT (K).
E) Repeat on other side.
NYLON NUT (K)
INSIDE DIAMETER:
8 mm
Qty: 2
BOLT (G)
45 mm
Qty: 2 SPACER (H)
28 mm axis
Qty: 2
SPACER RING (I)
20 mm
Qty: 4
WASHER (J)
18 mm
Qty: 2
HARDWARE BAG FOR STEP CONTENTS :
ASSEMBLY STEP 6
LEFT HANDLEBAR
PRE-ATTACHED BOLT AND WASHERS
RIGHT HANDLEBAR
RESISTANCE WIRES
NOTE: There is NO hardware bag for this step. All hardware is pre-installed.
A) Remove PRE-ATTACHED BOLT & WASHERS from CONSOLE MAST.
B) Slide LEFT HANDLEBAR onto CONSOLE MAST and attach by re-inserting PRE-ATTACHED BOLT & WASHERS.
C) Repeat on other side.
D) Connect RESISTANCE WIRES from the RIGHT HANDLEBAR to the wires from the MAST.
After handlebars are assembled they will rotate freely – be cautious. Until the
machine is fully assembled, do not grab the handlebars for support.
WARNING
