External Equipment Connections
LED -LCD television Owner’s Manual 11
How to use
Turn on the digital set-top box. A
(Refer to the owner’s manual for the digital set-top box.)
Use SOURCE on the remote contralto select PC or B
HDMI (Y, P
b
/C
b
, P
r
/C
r
) mode.
Press C Play button on external equipment for
program play.
Y Pb
DIGITAL OUT HDMI IN
(COAXIAL)
PC/DVI AUDIO IN Pr
/
PC Setup

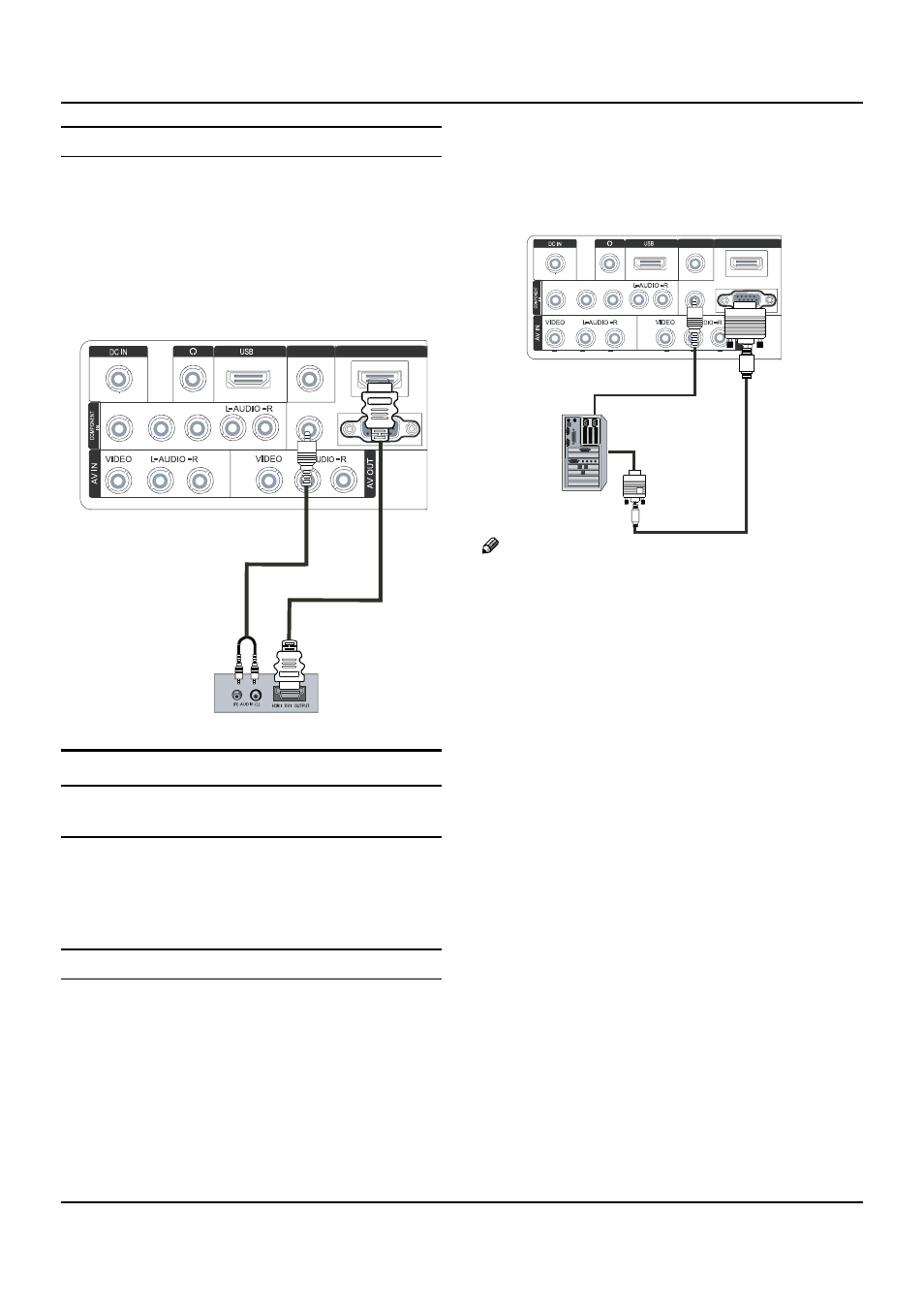

How to connect
Use the TV’s PC IN port for video connections. A
Then, make the corresponding audio connection. If B
using a sound card, adjust the PC sound as required.
How to use
Turn on the PC and the TV. A
Turn on the display by pressing the B POWER button
on the TV’s remote control.
Use SOURCE on the remote control to select PC source. C
Check the image on your TV. There may be noise D
associated with the resolution, vertical pattern,
contrast or brightness in PC mode. If noise is
present, change the PC mode to another resolution,
change the refresh rate to another rate or adjust the
brightness and contrast on the menu until the picture
is clear. If the refresh rate of the PC graphic card
can not be changed, change the PC graphic card or
consult the manufacturer of the PC graphic card.
HDMI IN DIGITAL OUT
(COAXIAL)
PC/DVI AUDIO IN Y Pb Pr PC IN
Note
Avoid keeping a fixed image on the TV’s screen for R
along period of Time. The fixed image may become
permanently imprinted on the screen.
The synchronization input form for Horizontal and R
Vertical frequencies is separate.
To obtain the best picture, do not play the USB, R
YP
b
P
r
, HDMI or PC source at the same time.
