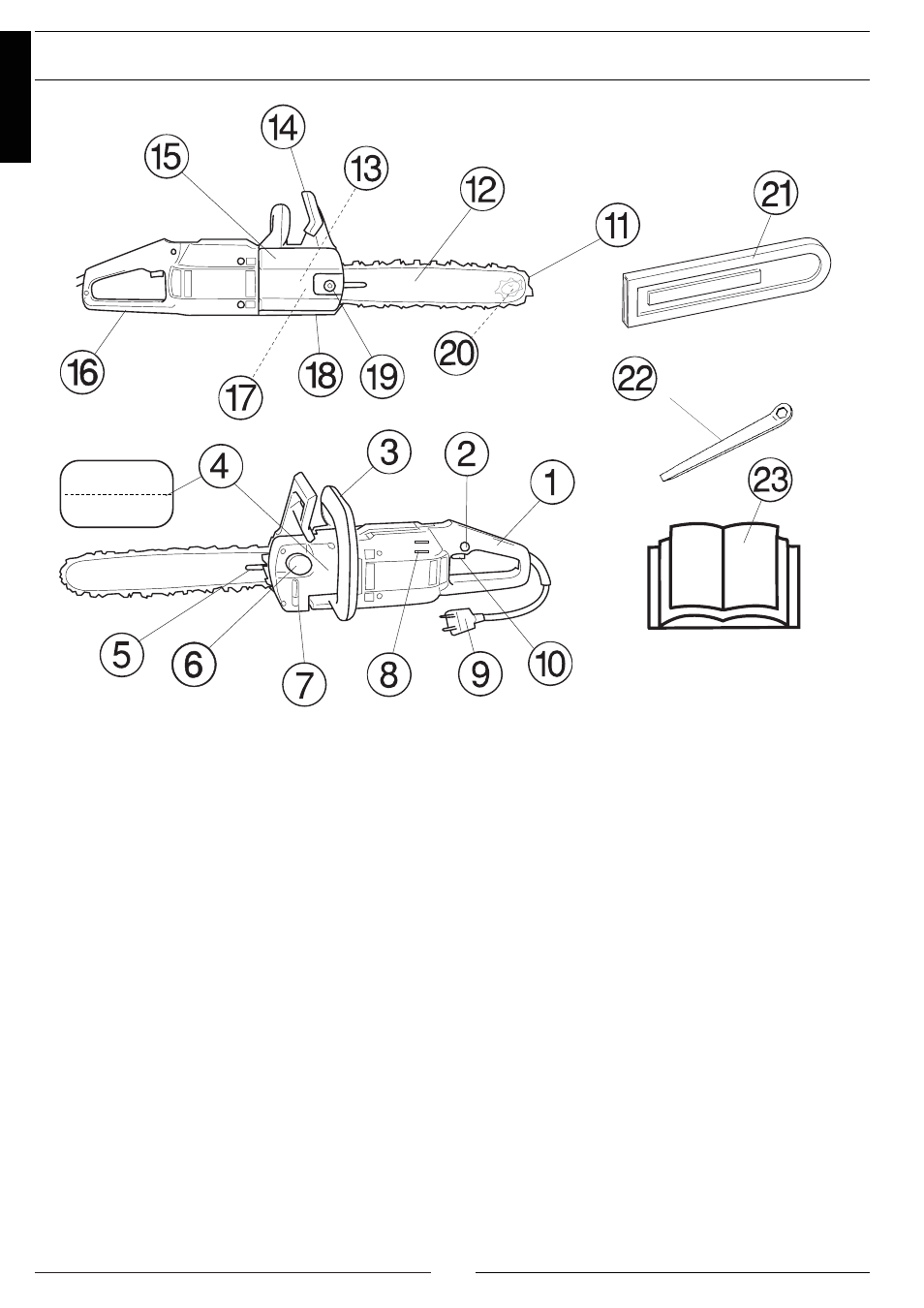

CHAIN SAW PARTS

1. Rear handle

2. Power trigger lockout

3. Front handle

4. Serial No. plate

5. Chain tensioner

6. Chain oil reservoir

7. Chain oil level

8. Ventilation slots

9. Power cable

10. Power trigger

11. Chain

12. Guide bar

13. Chain brake inside chain drive cover

14. Kickback guard

15. Chain drive cover

16. Right handguard - protects right hand

in case chain breaks or derails

17. Drive sprocket - concealed by chain drive cover

18. Chain catcher - deflects chain in case chain

breaks or derails

19. Guide bar nut

20. Nose sprocket

21. Scabbard

22. Combination tool

23. Operator's manual
