C. Chimney Components

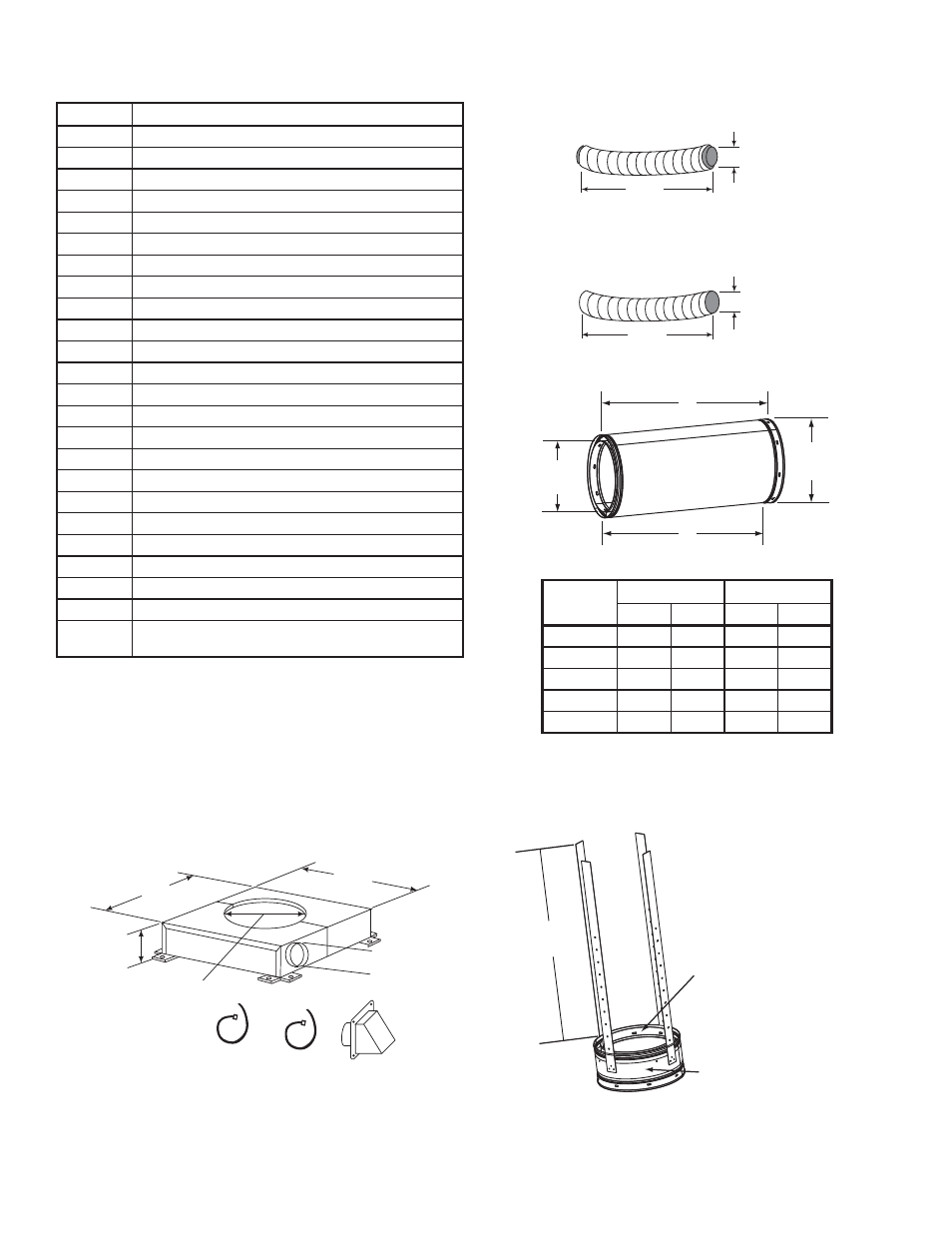

The following pictures show only those chimney components which may be safely used with this ¿ replace.
13 in.
(330 mm)
14 in.
(356 mm)
14 in.
(356 mm)
5-1/4 in.
(133 mm)
4 in. (102 mm)
CAK5A - Chimney Air Kit
ID4 Insulated Duct
UD4 Uninsulated Duct
42 in.
(1067 mm)
4 in. (102 mm) i
42 in.
(1067 mm)
4 in. (102 mm) i
A
10 in.
(254mm)
13 in.
(330mm)
B
Chimney Sections
A = Actual Length
B = Effective Length (length of
chimney part after it has
been snapped to another)
SL4 - Chimney Stabilizer
Outside Diameter
13 in.
(330 mm)
Inside
Diameter
10 in.
(254 mm)
20-3/4 in.
(527 mm)
Catalog # Description
CAK5A Chimney Air Kit (required in Canada)
ID4 Insulated Duct/Outside Air
UD4 Uninsulated Duct/Outside Air
SL406 Chimney Section - 6 in. long
SL412 Chimney Section - 12 in. long
SL418 Chimney Section - 18 in. long
SL436 Chimney Section - 36 in. long
SL448 Chimney Section - 48 in. long
SL4 Chimney Stabilizer
SL430 Chimney Offset/Return - 30 deg
FS538 Ceiling Firestop - Straight
FS540 Ceiling Firestop - 30 deg
AS10 Straight Attic Insulation Shield, 24 in.
JB577 Chimney Joint Band
CB576 Chimney Bracket
RF570 Roof Flashing - Flat to 6/12 Pitch
RF571 Roof Flashing - 6/12 to 12/12 Pitch
TR444 Round Termination Cap
TR442 Round Telescoping Termination Cap
ST475 Square Termination Cap
CT56 Chase Top
LDS33 Decorative Shroud - 3 ft x 3 ft
LDS46 Decorative Shroud - 4 ft x 6 ft
Field Constructed Shrouds (See “Woodburning
Termination Cap”)
Catalog #
A B
in mm in mm
SL406 6 152 4-3/4 121
SL412 12 305 10-3/4 273
SL418 18 457 16-3/4 425
SL436 36 914 34-3/4 883
SL448 48 1219 46-3/4 1187
