Heat & Glo • EXCLAIM-36C Woodburning Fireplace • 4013-093 Rev G • 08/06 10
B. Clearances
0 in.
to floor
1 in. (25 mm) to side of appliance
(except at nailing flanges where it is 1/2 in. (13 mm))
1 in. (25 mm) to back
of appliance
Attic
Insulation
Shield
Ceiling Firestop
(ceiling)
(roof)
(attic)
(ceiling)
2 in. min.
(51 mm)
2 in. min.
(51 mm)
2 in. min.
(51 mm)
2 in. min.
(51 mm)
2 in. min.
(51 mm)
2 in. min.
(51 mm)
Must have 2 in. (51 mm)
minimum clearance
to header
Ceiling Firestop Offset/Return with
hanger straps
Storm Collar
Roof Flashing
0 in. to level
of standoffs

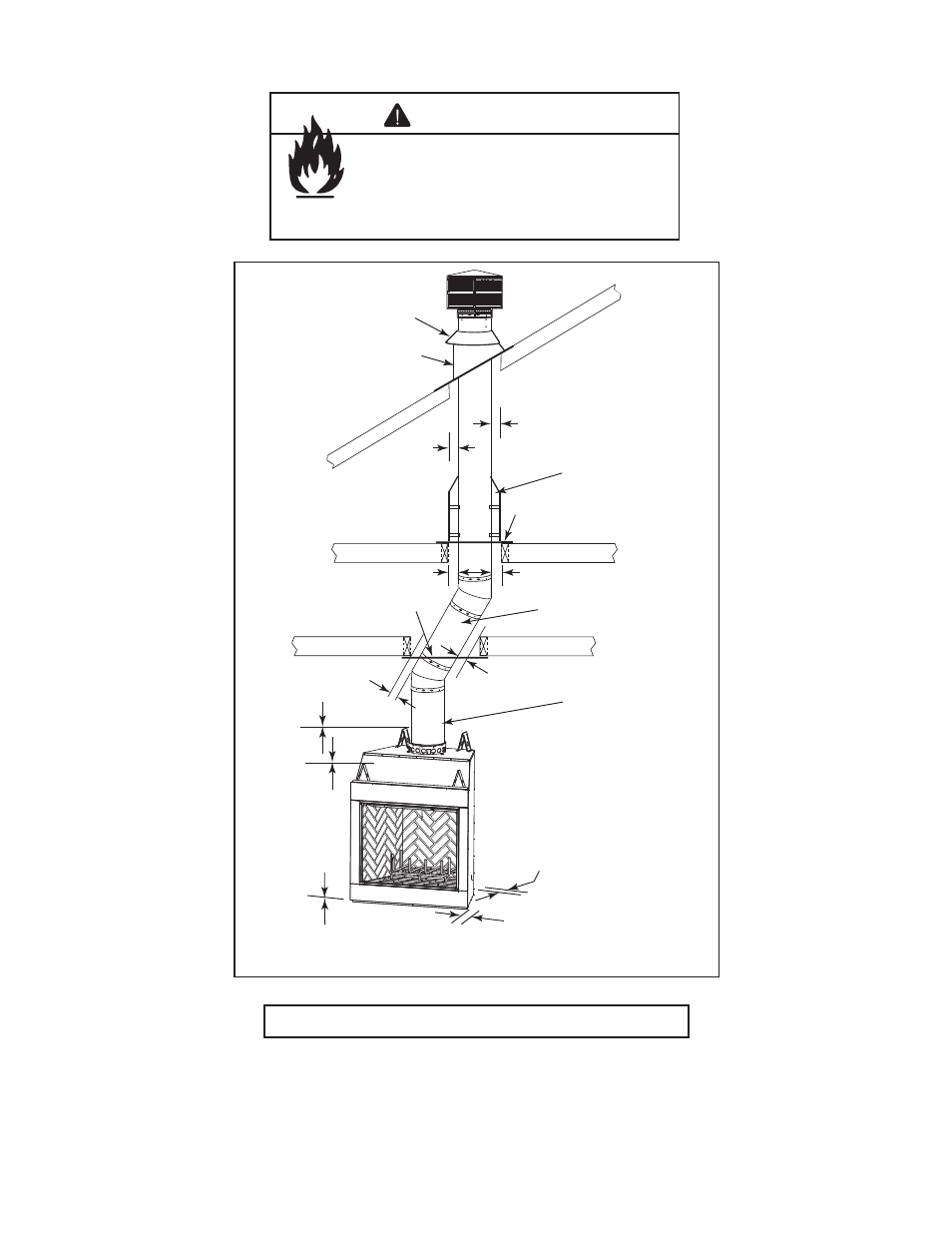

Figure 3.2 Clearances to Combustible Materials
Fire Risk
• Comply with all minimum clearances to
combustibles as speci ¿ ed.
Failure to comply may cause ¿ re.
WARNING
Note: Chimney air kit is not shown, but required in Canada.
