HP t5135 - Manual (Page 10)

Installing the stand
To install the stand:
1. Turn unit upside down.
2. Locate the slots on the bottom of the unit into which the tabs on the stand fit.
3. Insert the tabs into the slots (1), and then slide the stand about 1/2–inch toward the back of the
unit until it locks into place (2).

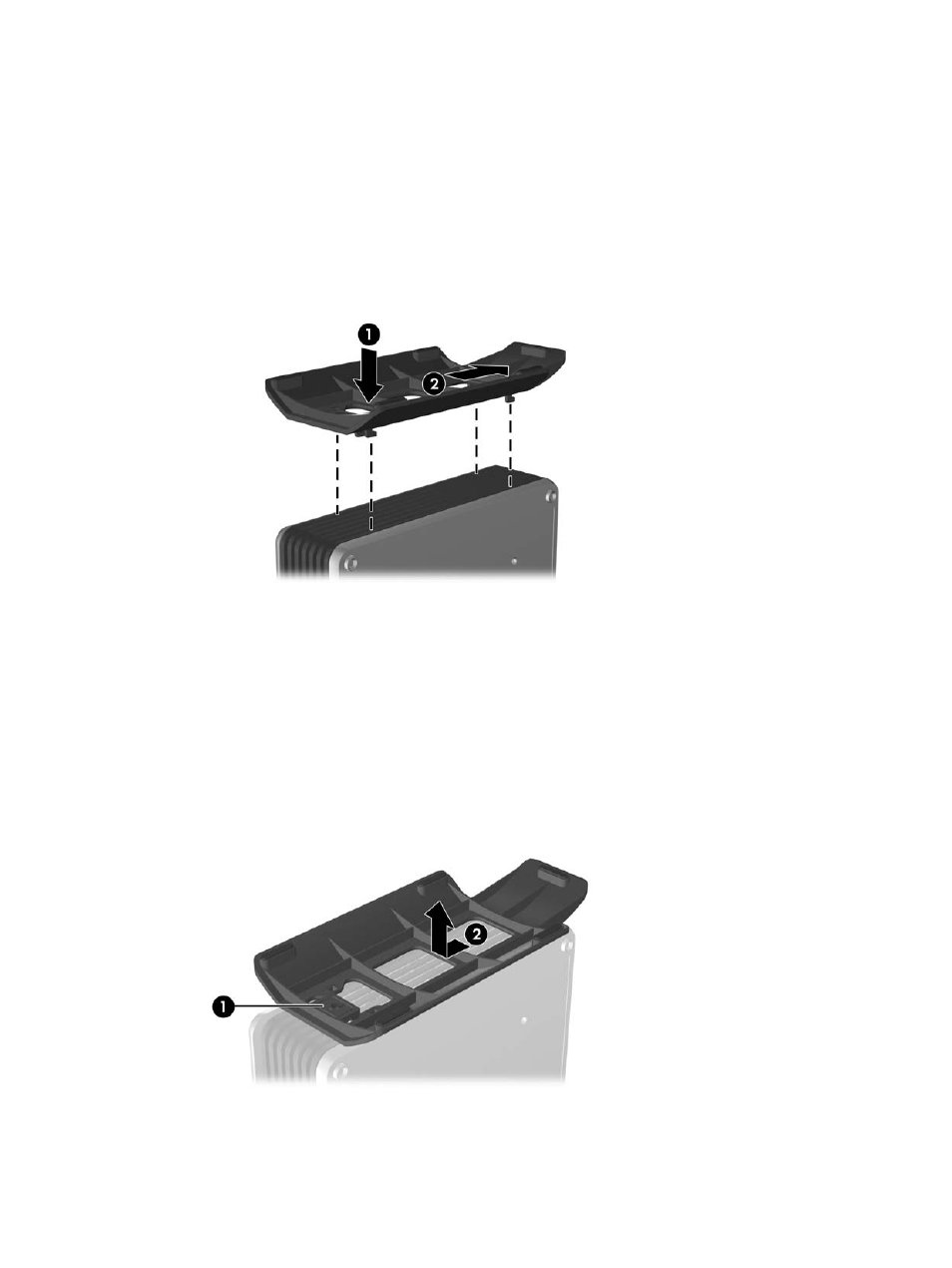

Figure 1-4 Installing the stand
Removing the stand
To remove the stand:
1. Turn unit upside down.
2. Press the tab (1), and then slide the stand about 1/2–inch toward the front of the unit and lift the
stand off the unit (2).
Figure 1-5 Removing the stand
4 Chapter 1 Product features ENWW
