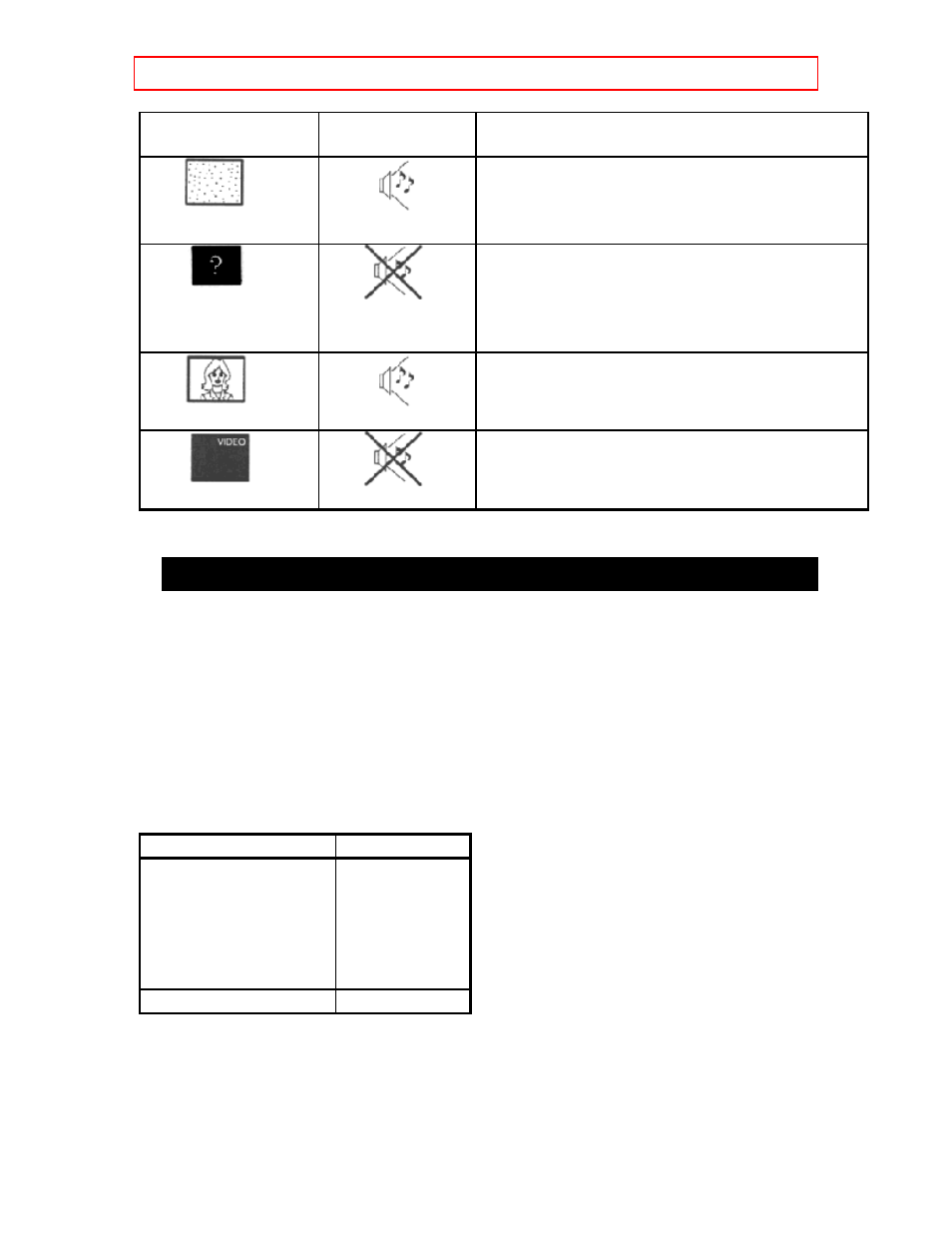

USEFUL INFORMATION - 30 -
- TV SPEAKERS SWITCH (IF APPLICABLE)
IN THE OFF POSITION
NO VIDEO
NOISY SOUND
- TV OR CABLE TUNING MODE SET TO
PROPER SETTING
- ANTENNA INPUT CORRECT (IF
APPLICABLE)
NO PICTURE
NO SOUND
CHECK THAT AC POWER CORD IS
PLUGGED INTO AC OUTLET
- BRIGHTNESS & AUDIO COTROLS SET
PROPERLY
- TRY ANOTHER CHANNEL
NO COLOR
NOISY SOUND
COLOR CONTROL SETTINGS
TRY ANOTHER CHANNEL
BLACK PICTURE NO SOUND
- RECEIVER IN VIDEO MODE WITH NO
SIGNAL
Specifications
Power Source: 120V AC, 60Hz,
Channel Capability: 181 channels (See chart)
VHF 2 ~ 13, UHF 14 ~ 69, Cable 125 channels
Video Input Jacks: 1V p-p, 75 ohm, phono jack type
Audio Input Jacks: 500mV rms 47K ohm
To Audio AMP Jacks: 0 ~ 2.0V rms 4.7K ohm
Stereo Sound
Closed Caption Display
Specifications are subject to change without notice or obligation.
Channel Capability Chart
BAND CHANNELS
VHF 12
UHF 56
CABLE (Mid-Band)
15
CABLE (Super Band) 14
CABLE (Hyper Band) 28
CABLE (Ultra Band)
56
TOTAL CHANNELS 181
HITACHI SERVICE HOTLINE
To locate an authorized HITACHI service facility in the continental U.S.A. and Canada,
DIAL TOLL FREE
7 days a week, 24 hours a day
