7
RS-232C Communication
RS-232C Communication

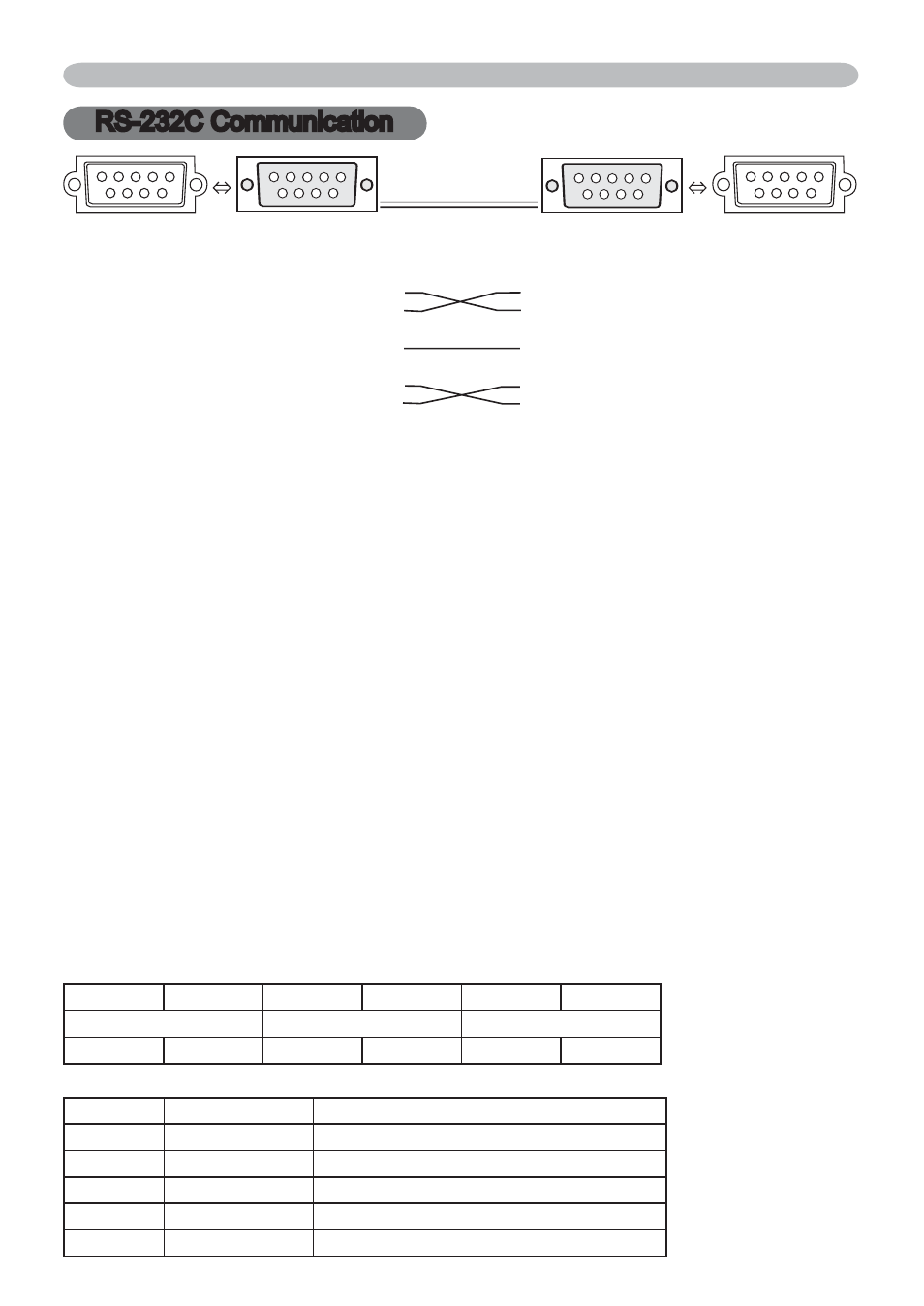

Connecting the cable
1.
Turn off the projector and the computer.
2.
Connect the CONTROL port of the projector with a RS-232C port of
WKHFRPSXWHUE\D56&FDEOHFURVV8VHWKHFDEOHWKDWIXO¿OOVWKH
VSHFL¿FDWLRQVKRZQLQWKHSUHYLRXVSDJH
3.
Turn the computer on, and after the computer has started up turn the
projector on.
Communications setting
19200bps, 8N1
1. Protocol
Consist of header (7 bytes) + command data (6 bytes)
2. Header
BE + EF + 03 + 06 + 00 + CRC_low + CRC_high
&5&BORZ/RZHUE\WHRI&5&ÀDJIRUFRPPDQGGDWD
&5&BKLJK8SSHUE\WHRI&5&ÀDJIRUFRPPDQGGDWD
3. Command data
Command data chart
byte_0 byte_1 byte_2 byte_3 byte_4 byte_5
Action Type Setting code
low high low high low high
Action (byte_0 - 1)
Action &ODVVL¿FDWLRQ Content
1 Set Change setting to desired value.
2 Get Read projector internal setup value.
4 Increment Increment setup value by 1.
5 Decrement Decrement setup value by 1.
6 Execute Run a command.
6 7 8 9
1 2 3 4 5
6 7 8 9
1 2 3 4 5
CONTROL port RS-232C cable (cross) RS-232C port
of the projector of the computer
- (1) (1) CD
RD (2) (2) RD
TD (3) (3) TD
- (4) (4) DTR
GND (5) (5) GND
- (6) (6) DSR
RTS (7) (7) RTS
CTS (8) (8) DTS
- (9) (9) RI
