Hitachi CP-X205 - Manual (Page 112)

3

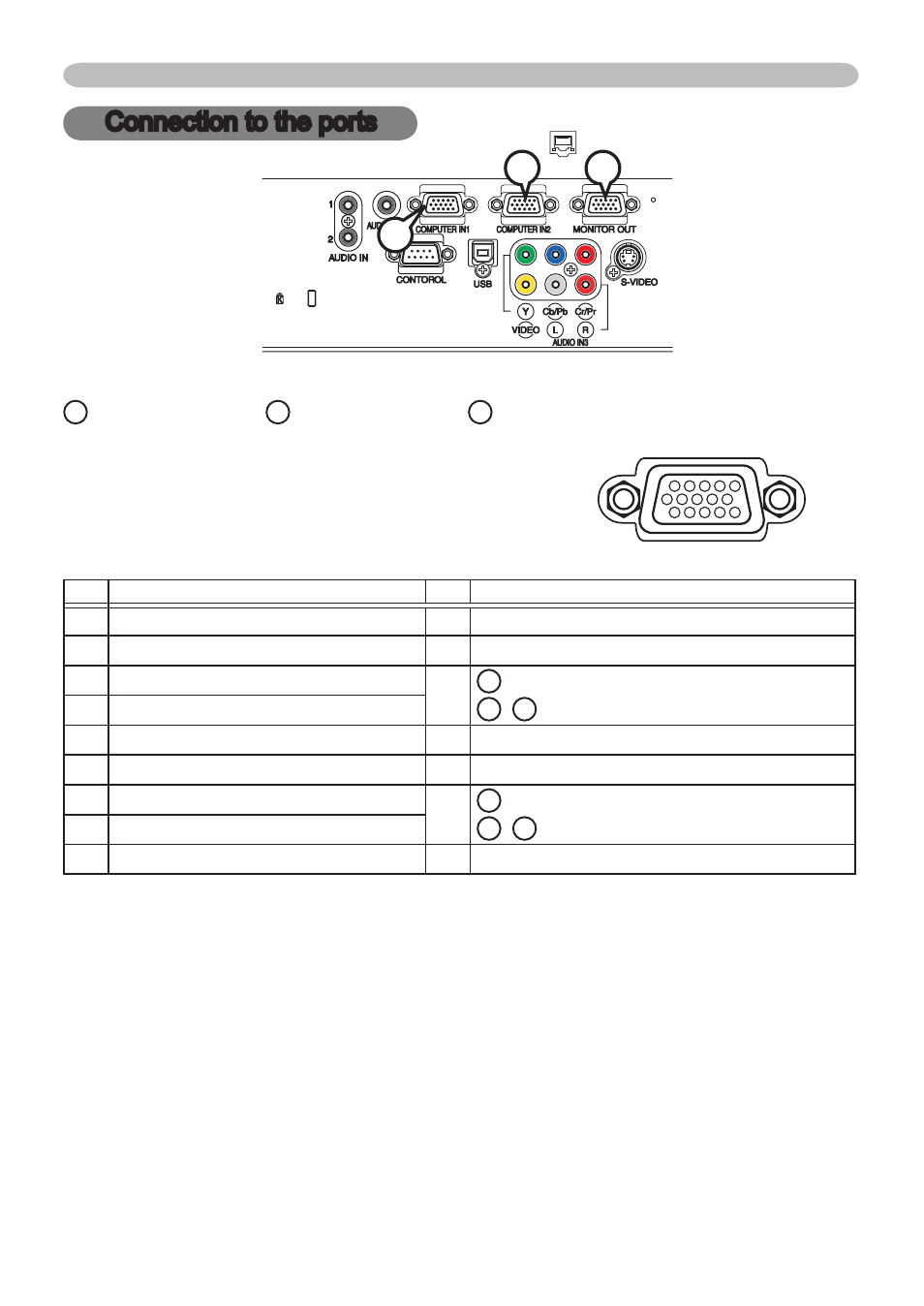

Connection to the ports
A COMPUTER IN1, B COMPUTER IN2, C MONITOR OUT
D-sub 15pin mini shrink jack
‡9LGHRVLJQDO5*%VHSDUDWH$QDORJ9SSȍ
terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
• Composite sync. Signal: TTL level
Pin Signal Pin Signal
1 Video Red 10 Ground
2 Video Green 11 (No connection)
3 Video Blue
12
A : SDA (DDC data)
B
, C : (No connection) 4 (No connection)
5 Ground 13 H. sync / Composite sync.
6 Ground Red 14 V. sync.
7 Ground Green
15
A : SCL (DDC clock)
B
, C : (No connection) 8 Ground Blue
9 (No connection) - -
Connection to the ports
LAN
A
C B
