the AP successfully.
RX Frame
It shows the number of data frames which are received by the
AP successfully.

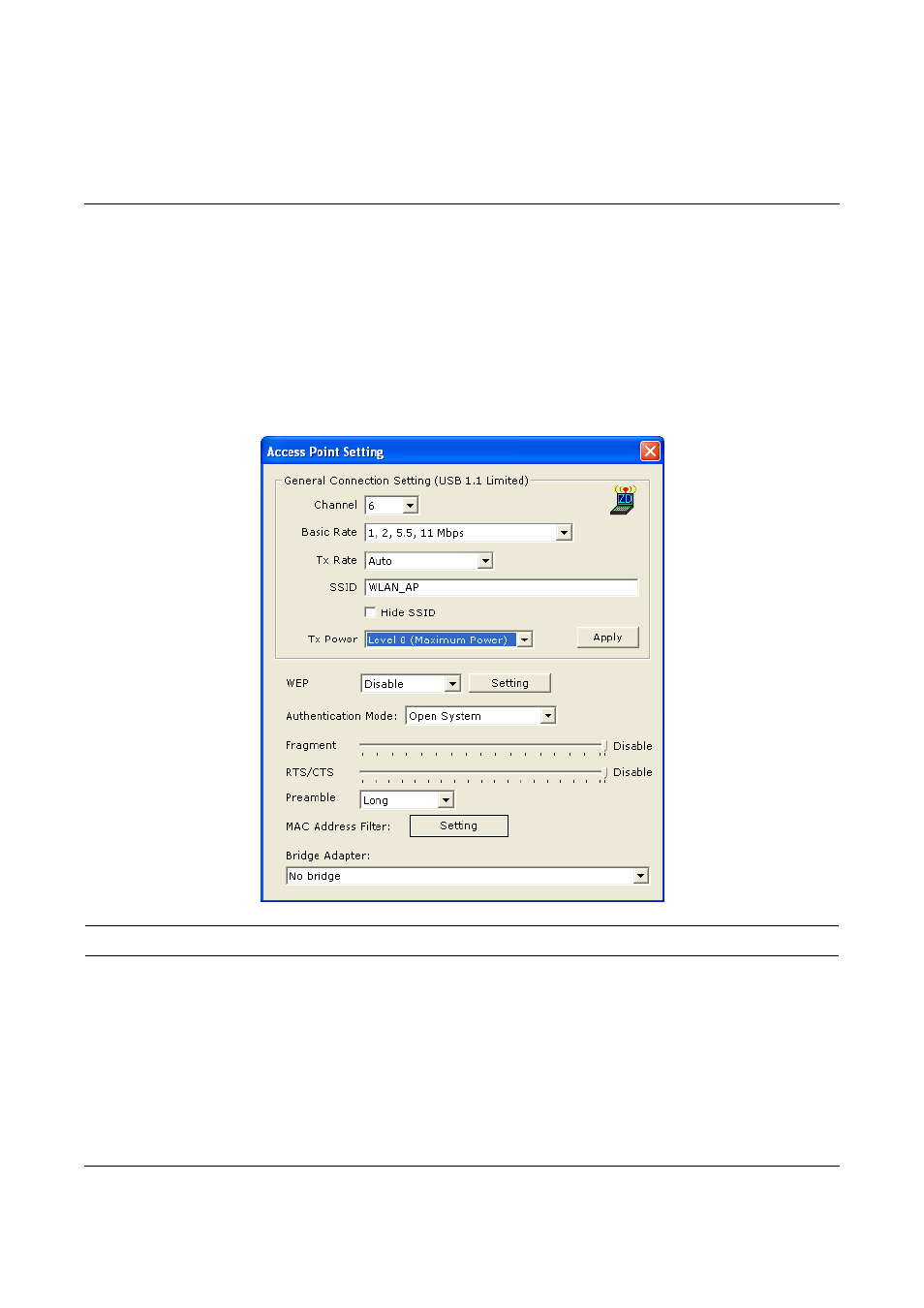

3.1.4 AP General Connection Setting
Click “More Setting”, users are allowed to setup the AP connection setting, Encryption
Setting and other advanced functions.
Parameter Description
General Connection Setting
Channel
Select the number of the radio channel used by the AP. The
wireless adapters which connects to the AP should have the
same channel to function correctly.
Basic Rate
Select the basic data transmission speed supported by the
AP. When the AP works in 11b mode, the maximum data rate
is 11Mbps so that there are two options including “1, 2
Mbps“ and “1, 2, 5.5, 11Mbps” you can select.
