Dolphin® 7200 User’s Guide

10 - 3

Side Panel Features

This section contains information regarding features located on the side of the Dolphin VehicleBase.

Dolphin Terminal Well

The Dolphin terminal slides into this well during both battery charging and communications with the
host device.

COMM LED

For the charging/communication version of the Dolphin VehicleBase, the COMM LED indicates the
status of data transfer between the host device and the Dolphin terminal.

Red means that data is being sent from the host device to the Dolphin VehicleBase.
Green means that data is being sent from the Dolphin VehicleBase to the host device.
Orange means that data is transferring at high data rates.

For the charge-only version of the Dolphin VehicleBase, the COMM LED functions as a terminal
detection indicator. The LED lights green when the Dolphin terminal is properly seated in the well.

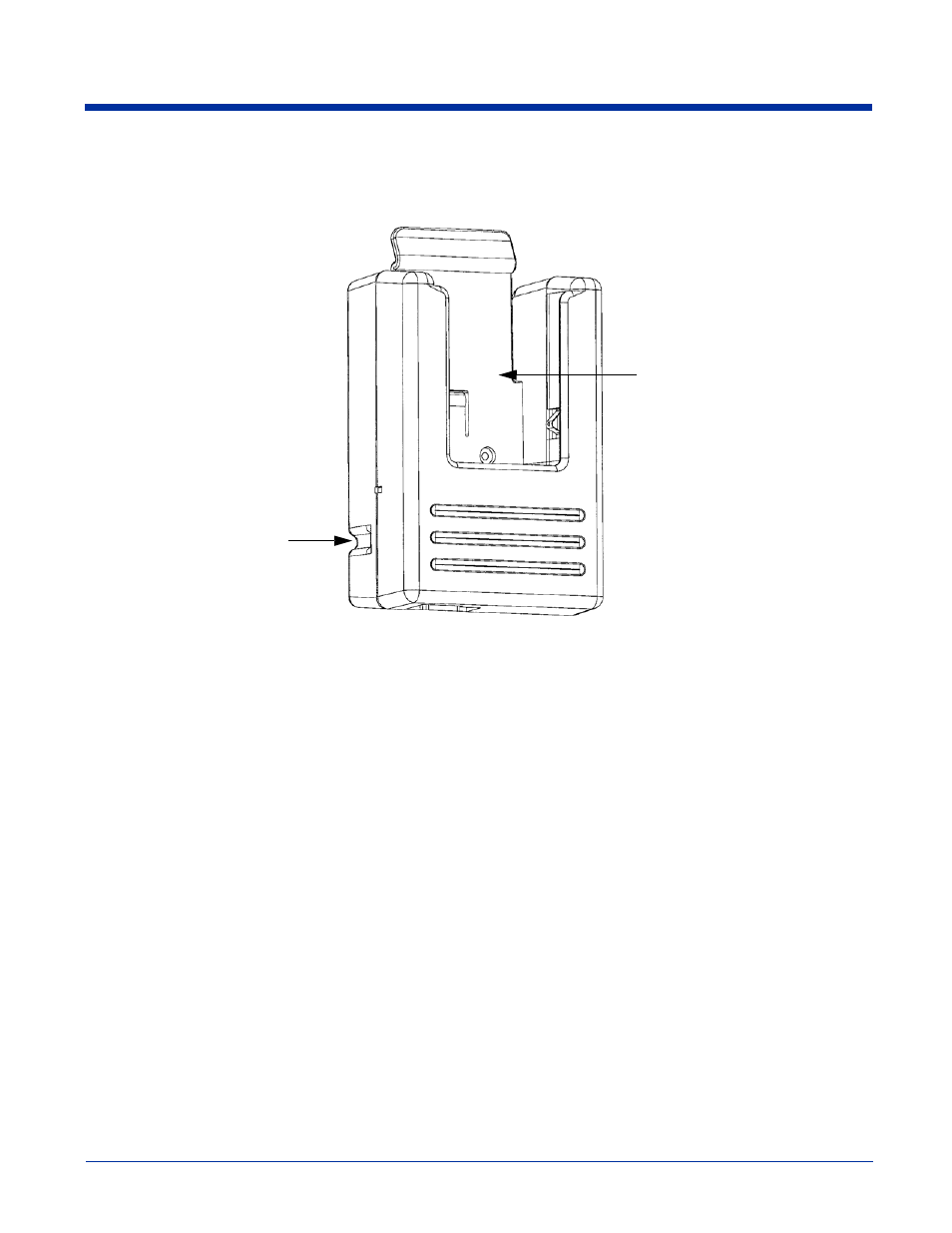

COMM
LED

Dolphin
Terminal
Well
