Dolphin 7200 Compact HomeBase Parts and Functions
Front Panel
Dolphin Terminal Well
The Compact HomeBase's front panel has one slot. Put the Dolphin terminal in this well to
communicate with a host device and to charge the Dolphin's batteries.
DOCK LED
Turns solid green when the Dolphin terminal is properly seated into the Dolphin HomeBase.
COMM LED
Indicates the status of data transfer between the Host Device and the Dolphin terminal as described
below:
Comm LED
Description
Red LED
Data is being sent from the Host Device to the Dolphin HomeBase.
Green LED
Data is being sent from the Dolphin HomeBase to the Host Device.
Orange LED
Data is being sent at high data rates.

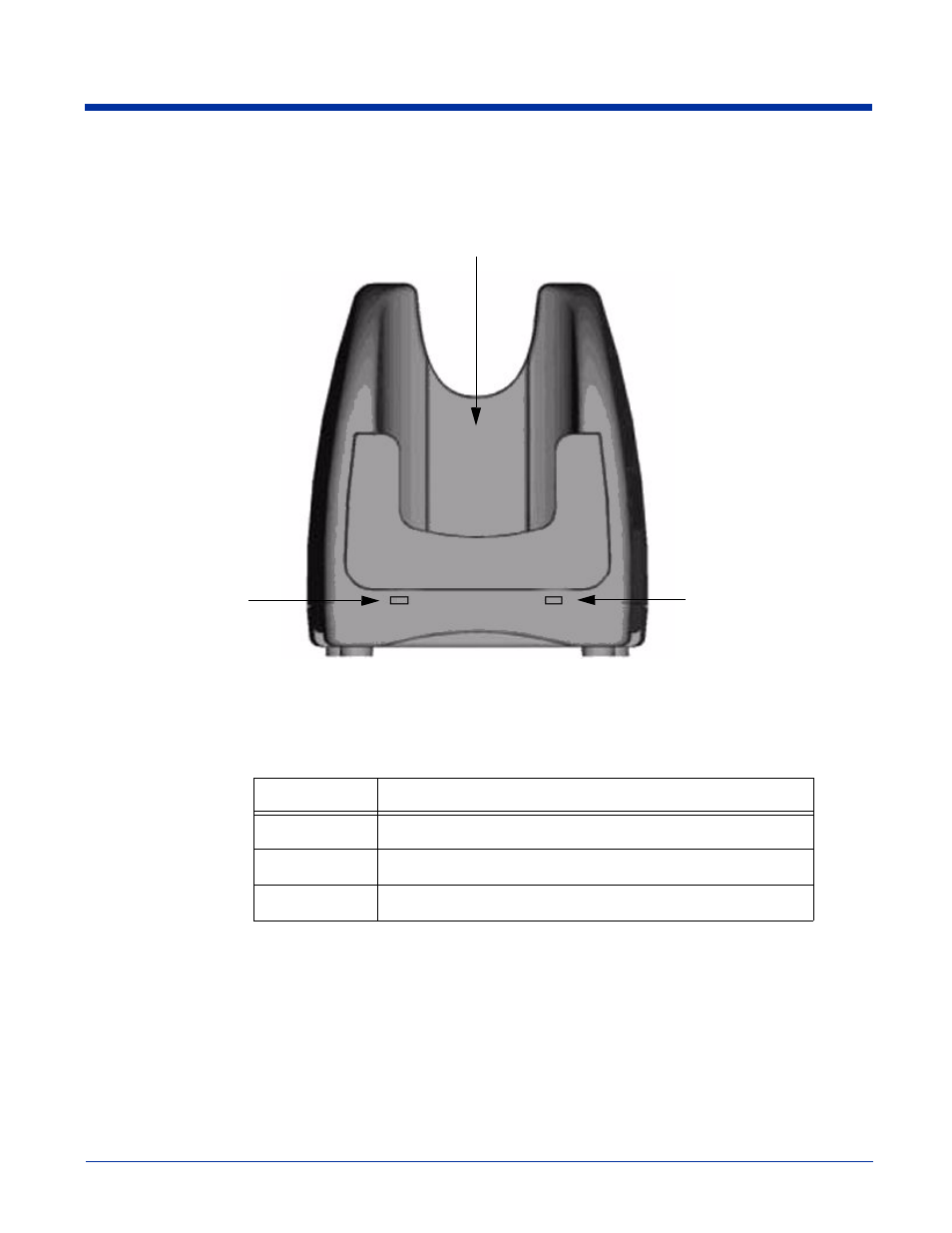

COMM LED
DOCK LED
Dolphin Terminal Well
