Removing the CD/DVD Drive

(User-Replaceable)

Required Equipment

• #1 Phillips screwdriver.

Removal Procedure

1.

2.

3.

4.

5.

Unplug the AC adapter, if present, and remove the battery.

Remove these additional assemblies:

• Keyboard cover (page 2-10).
• Keyboard (page 2-13).
Remove the screws that secure the CD/DVD drive to the top case and motherboard.

Place your index finger in the top case opening and push out on the CD/DVD drive to release it
from the motherboard.

Remove the CD/DVD drive.

Screw,
M2.5×4mm

Screw,
M2.5×6mm

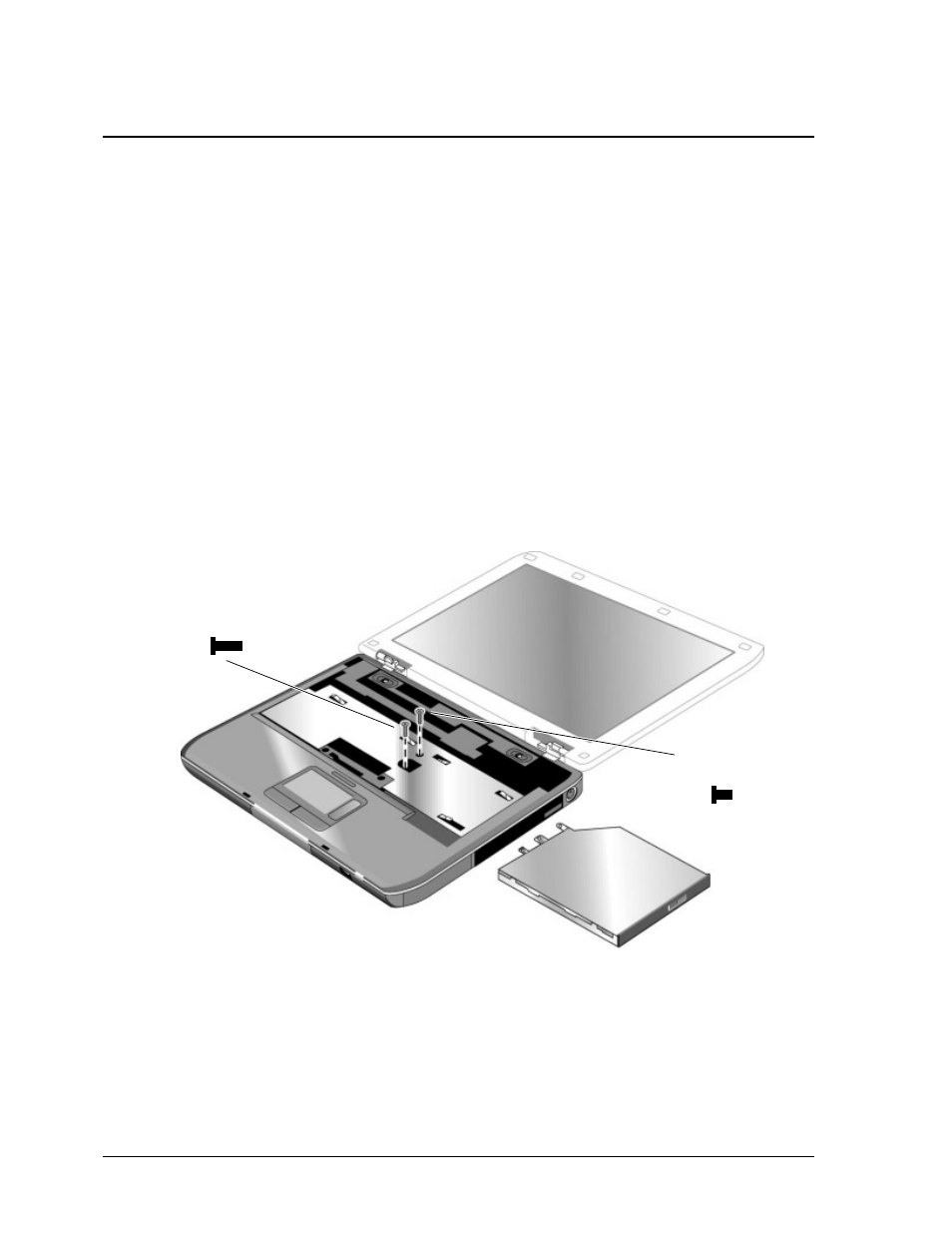

Figure 2-11. Removing the CD/DVD Drive

2-16

Removal and Replacement

Service Manual
