HONDA 08B15-S9V-100 User Manual

Page 7

AII 25886 (0308)

7 of 14

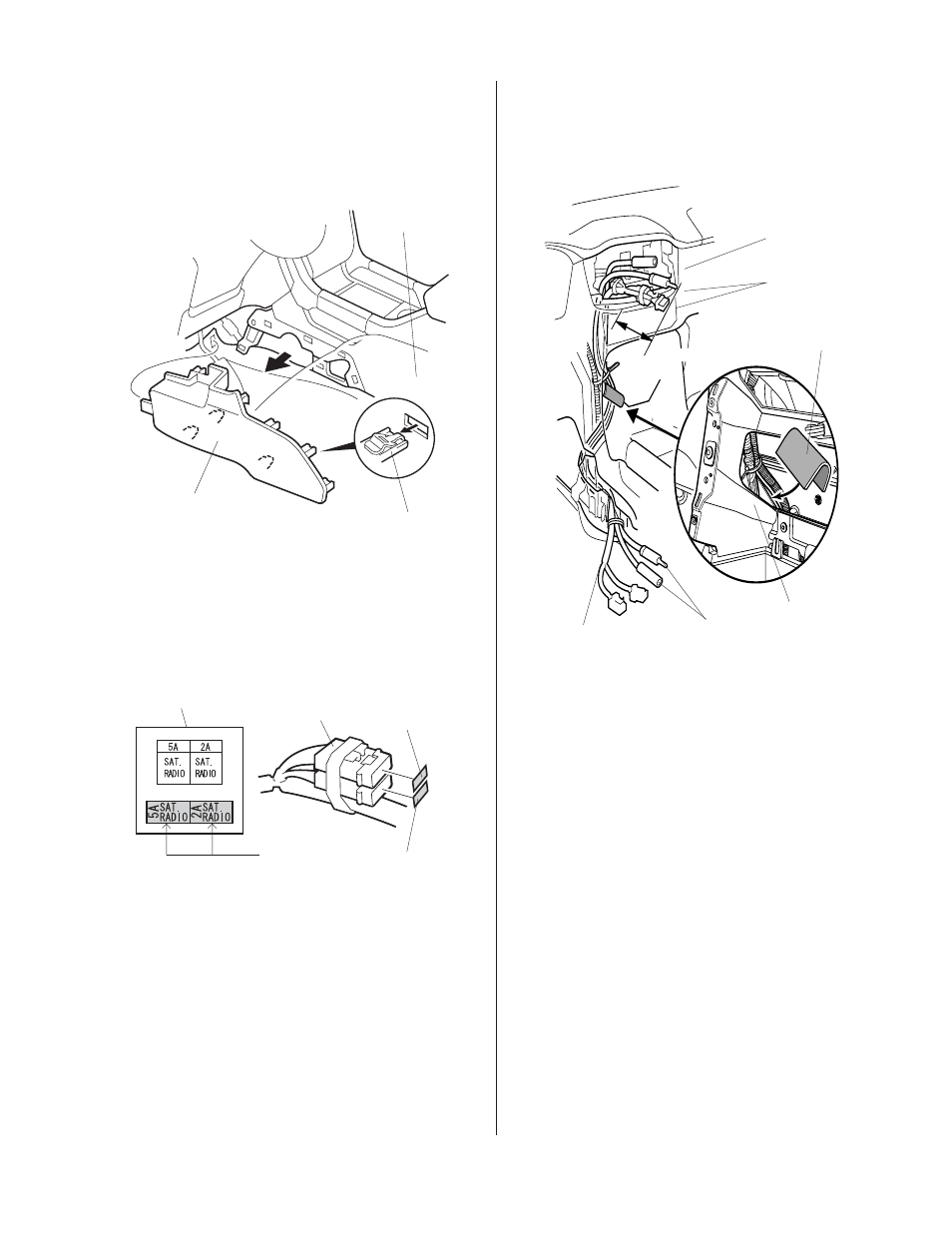

20. Route the XM radio harness and two subantenna

cables from the dashboard opening to driver’s
floor. Using one cushion tape, attach it to the
vehicle frame.

CLIPS (7)

DRIVER’S CENTER
CONSOLE LOWER
COVER

DRIVER’S
SEAT

18. On the driver’s side of the vehicle, remove the

center console lower cover (gently pull the cover
out toward you to release the seven clips). Take
care not to damage the clips.

3121031M

Use
these
labels.

FUSE LABEL

FUSE CASE

FUSE
LABEL
(2A)

XM RADIO
HARNESS

SUBANTENNA
CABLE

DASHBOARD
OPENING

Align.

50 mm

CUSHION TAPE

19. Get the XM radio harness, the subantenna cables,

and the fuse labels. Attach the 2A and 5A fuse
labels to the fuse cases on the XM radio harness.

21. Pull the XM radio harness and subantenna cables

out through the dashboard opening approximately
50 mm.

FUSE
LABEL
(5A)

Clean with
isopropyl
alcohol.
