10 of 14 AII 25886 (0308) © 2003 American Honda Motor Co., Inc - All Rights Reserved.

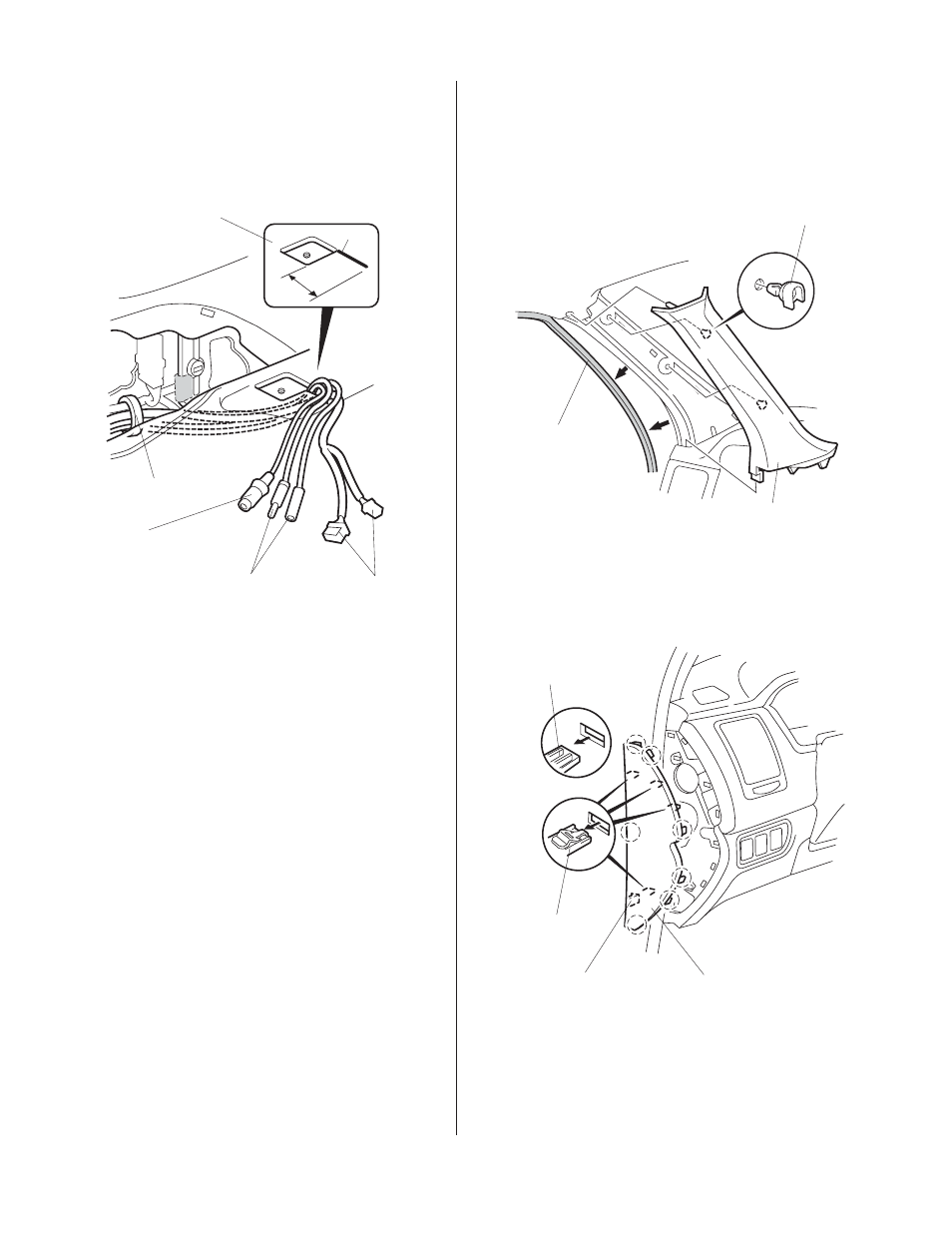

36. Remove the dashboard side cover (four clips, one
retaining tab, and seven hooks).
HOOKS (7)
DASHBOARD
SIDE COVER
CLIPS (4)
RETAINING
TAB
34. Route the XM radio harness and subantenna
cables under the floor carpet and out the slit.
Secure the cables with one wire tie.
Installing the Antenna
35. On the driver's side of the vehicle, remove the
weatherstrip from the left front door opening in the
area shown, then remove the left front "A" pillar
trim (two clips).
33. Measure and slit the driver’s floor carpet in the
area shown. Be careful not to damage the
subantenna cables and XM radio harness when
cutting the floor carpet.
CLIPS (2)
WEATHERSTRIP
LEFT FRONT
"A" PILLAR TRIM
FLOOR
CARPET
slit
50 mm
XM RADIO
HARNESS SUBANTENNA
CABLE
DISPLAY MODULE
CABLE
WIRE TIE
