25
INSTALLATION INSTRUCTIONS
Fixed Line Trimmer Heads
T18, T230/C230
Item
Part No.
Spacer 22035-13230
Holder A 22035-13242
Bolt Guard 22035-13290
Arbor Bolt 22035-13271
T250/C250, T260/C260
Item
Part No.
Holder A 22024-13912
Bolt Guard 22024-13291
Arbor Bolt 22000-13512
T270/C270
Item
Part No.
Holder A 22420-13510
Flat Washer 99909-92810
Bolt Guard 22024-13291
Arbor Bolt 22000-13512
T350
Item
Part No.
Holder A 22000-13241
Bolt Guard 22015-13270
Arbor Bolt 22000-13512
C350, B450
Item
Part No.
Holder A 22015-13241
Flat Washer 99909-92810
Arbor Bolt 22015-13261

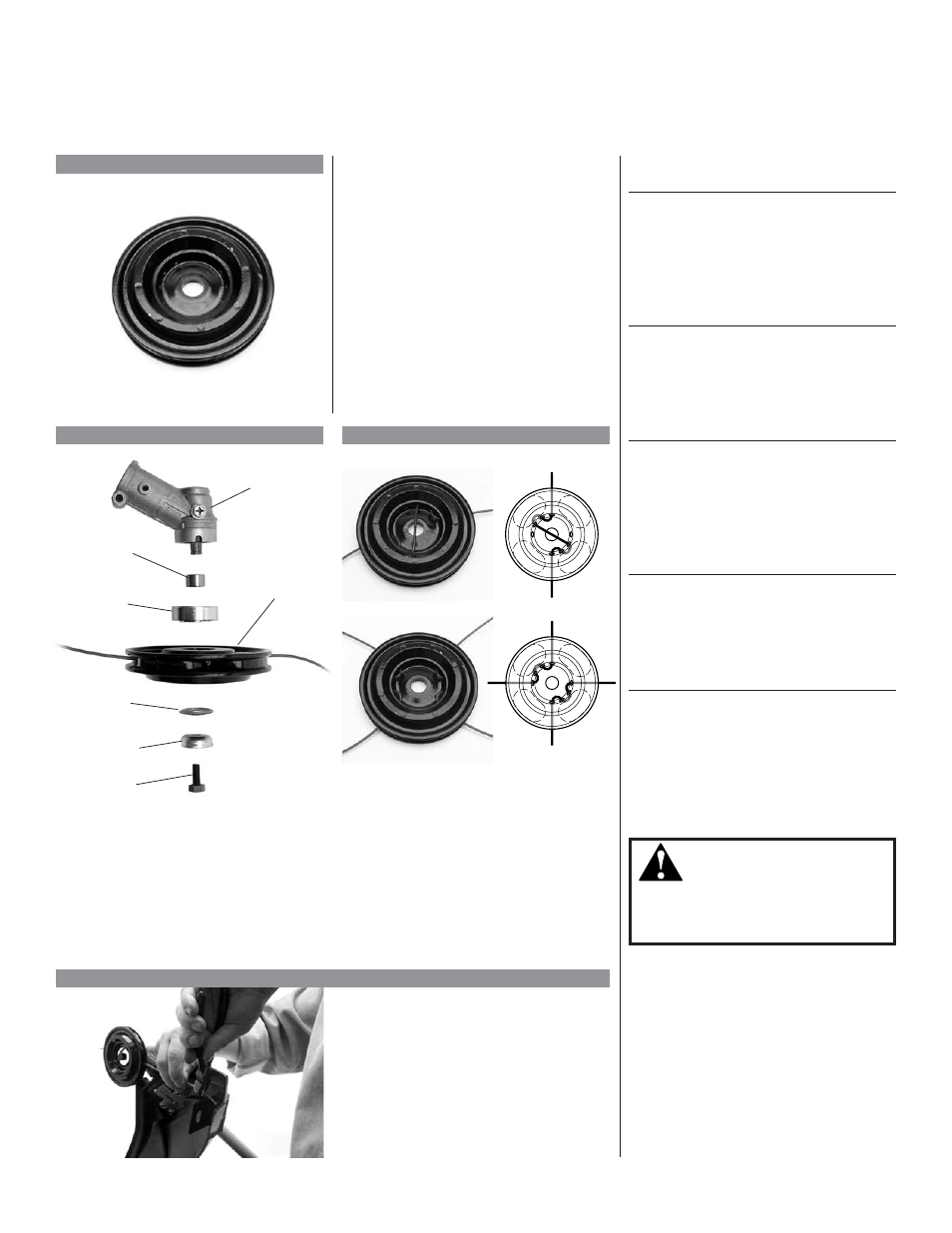

The fixed line trimmer head is a tough
aluminum die-cast trimmer head that
is virtually impossible to break. It
accepts line up to .130 in. diameter
and will perform well in heavy-duty
applications.
NOTE: The fixed line trimmer head
will fit straight shaft grass trimmers
ranging from the T18 through the
B450. When installing the head onto a
trimmer, pay special attention to the
correct use assembly components as
shown to the right (supplied with the
trimmer head):
Cut either one or two 16-inch lengths
of trimmer line (depending upon how
much line you want exposed for
trimming) and thread it through the
trimmer head as shown.
CAUTION: Make sure the line is
trimmed evenly to avoid vibration.
If the machine (size ranging from T18
to T230) is already equipped with a
trimmer head, unthread the existing
trimmer head (clockwise to remove)
and remove all adapters. Replace the
spacer and install all the components
shown here. Tighten the arbor bolt
securely.
Some applications may require that
the line be trimmed to clear the cutting
attachment shield, as shown.
1 2
3
Model View
Replacement Line
Up to .130 in. diameter. Refer to the
Shindaiwa Accessory Catalog for
more information.
WARNING!
NEVER USE WIRE ROPE TRIM-
MER LINE WITH A FIXED LINE
TRIMMER HEAD.
Spacer
(T18-T230)
Bolt Guard
Arbor Bolt
Fixed Line
Trimmer
Head
Trimmer
Gearcase
Option 1–Single Line
Option 2–Double Line Holder A
Washer
(270 only)
