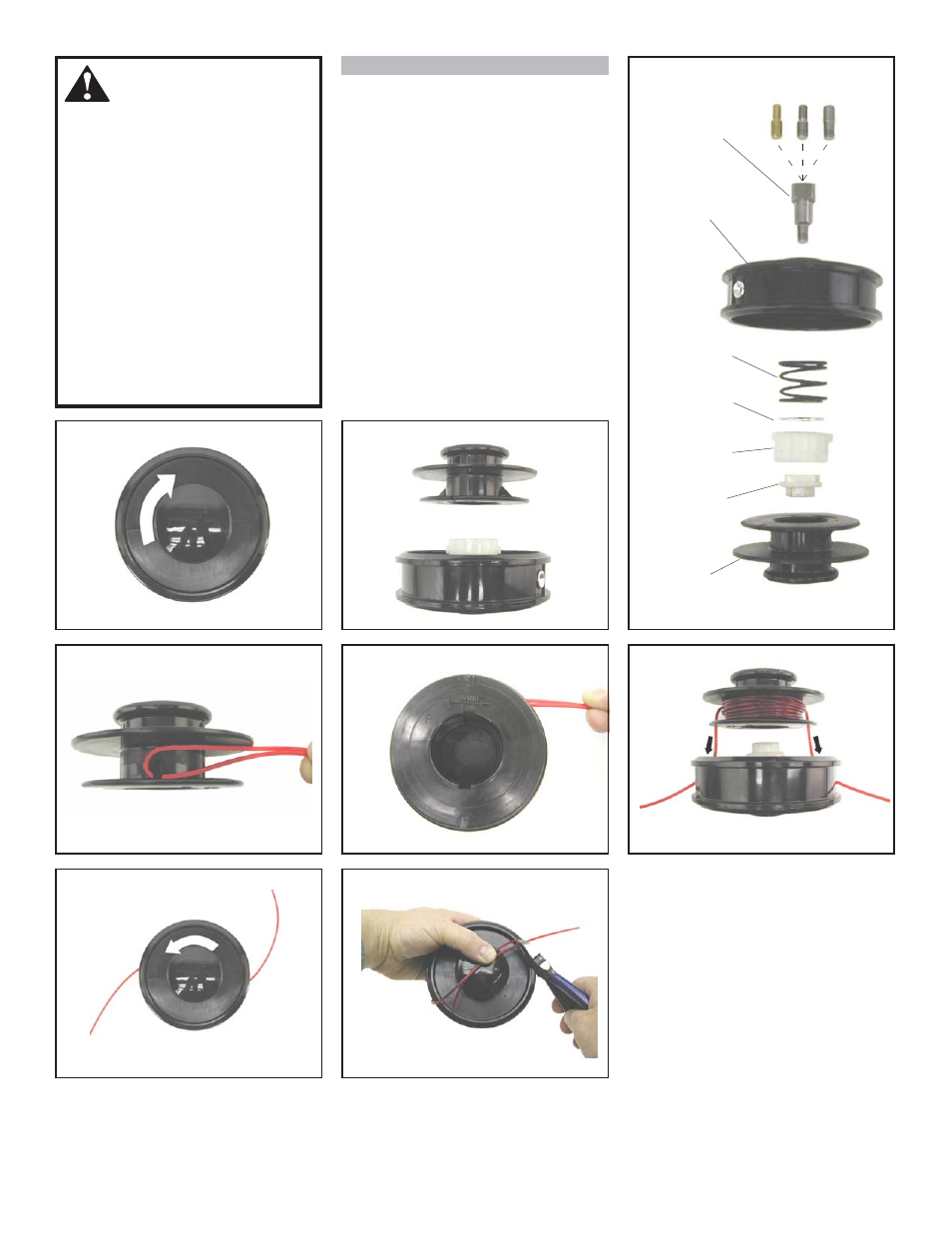

UN30 Assembly and Rewinding Instructions
A B C
A. 7mm LH
(gold p/n 80676)
(Fits 22T, 22C, T230, T231, C230,
T2500, T2500X, 65001 multipurpose
tool)
B. 8mm LH
(silver p/n 80677)
(Fits T260, T261, C260, T270, T272X,
C270, T350)
C. 10mm LH (silver p/n 80678)
(Fits C350, B450, B530)
NOTE:
Each package contains (3) steel studs.
Select the correct stud for your Shin-
daiwa trimmer or brushcutter model.
WARNING!
Ⅵ
Do not make unauthorized
modifications or alterations to this
unit or its components. Non-
standard parts may not operate
properly with this trimmer head
and may cause damage and lead
to personal injury.
Ⅵ
Always wear eye protection such
as goggles or safety glasses to
shield against thrown objects.
Ⅵ
Reduce the risk of bystanders
being struck by flying debris. Make
sure no one is within 50 feet (15
meters)—that’s about 16 paces—
of an operating attachment.
Line capacity:
.080” .... 40’
.095” .... 26’
.105” .... 20’
1
2
3
4
5
6
7
Arbor Bolt (1)
p/n 80730
Housing (1)
p/n 99909-15510
Spool (1)
p/n 99909-15560
Spring (1)
p/n 99909-15520
Cam Lock (1)
p/n 99909-15550
Washer (1)
p/n 99909-15530
Cam Assy. (1)
p/n 99909-15540
