15

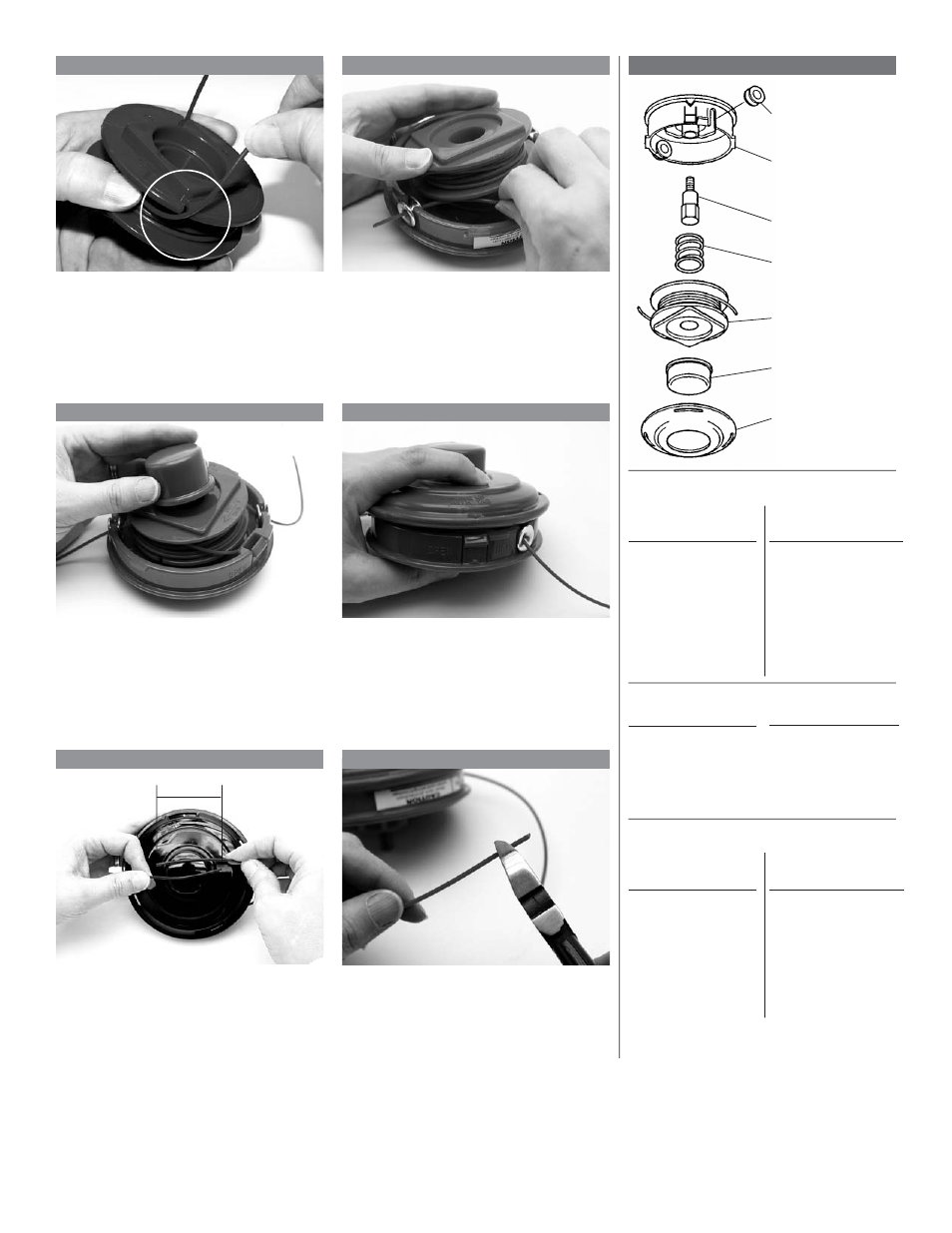

Lock the ends of line into line saver
slots in spool. Insert the spring onto the bolt. With
the line saver slots on the spool facing
the bolt, thread the ends of the line
into the eyelets in the housing. Do not
allow the line to go under the spool.
Place the button in the center of`the
spool. Replace the cover by aligning the tabs
and then twisting counterclockwise as
viewed from the button side of the
head (UN34-8R: Twist clockwise).
Pull the line free from the line saver
slots.
Check for a maximum line overlap of
one to two inches (four to five inches
of line extending from each eyelet). Trim as required to final length.
7 8
9 10
11 12
Pro-Matic (UN-32)
UN32-7L
Item Part No.
1 99909-15700
2* 72005-92630
3 99909-15720
4 99909-15520
5 99909-15580
6 99909-15590
7 99909-15610
UN32-8L
Item Part No.
1 99909-15700
2* 72005-92630
3 99909-15730
4 99909-15520
5 99909-15580
6 99909-15590
7 99909-15610
UN32-10L
Item Part No.
1 99909-15700
2* 72005-92630
3 99909-15740
4 99909-15520
Bump ‘N’ Cut (UN-34)
UN34-7L
Item Part No.
1 99909-15710
2* 72005-92630
3 99909-15720
4 72078-15240
5 99909-15770
6 99909-15780
7 99909-15755
UN34-8R
Item Part No.
1 99909-15790
2 72005-92630
3 99909-15800
4 72078-15240
5 99909-15810
6 99909-15780
7 99909-15750
Item Part No.
5 99909-15580
6 99909-15590
7 99909-15610
*2 required
PARTS LIST
1 Outer Housing
2 Eyelet
3 Adapter Bolt
4 Spring
5 Inner Spool
6 Button/Knob
7 Outer Cover
1" to 2"
