Assembly
24

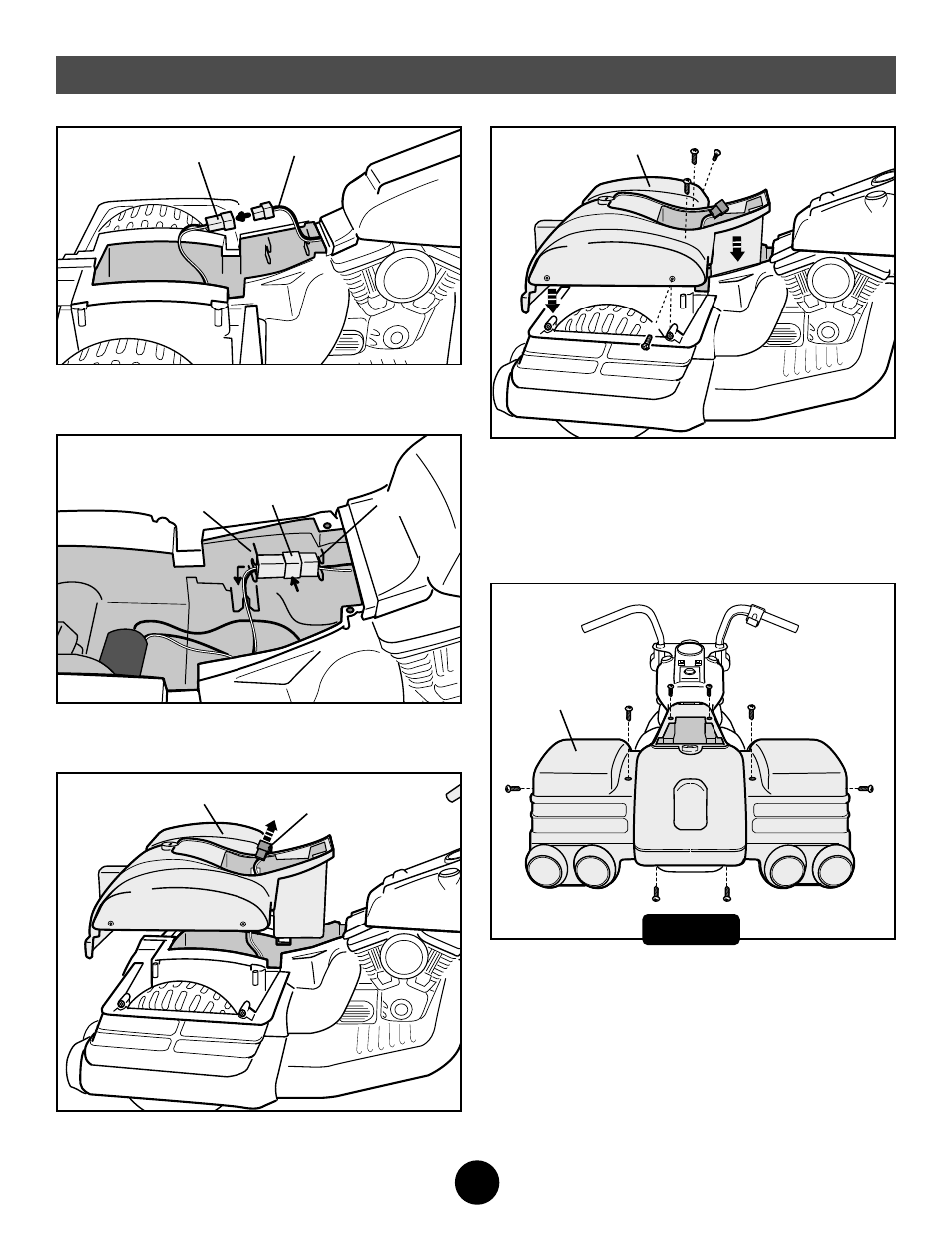

• Plug the power button harness and the motor harness
together. Push firmly to snap the connectors together.
Motor Harness
Power Button
Harness
15
25
• Fit the connectors between the tabs inside the vehicle.
• Bend the wires down (90˚ angle).
26
• Fit the motor harness connector up through the square
hole in the bottom of the back fender.
27
• Carefully fit the back fender onto the vehicle. DO NOT
pinch the motor harness wires.
• Insert four screws through the back fender and into
the vehicle.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
28
• With the back end facing you, insert eight more screws
through the back fender and into the vehicle.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
Tab Tab
Connectors
Back Fender
Motor Harness
Connector
Back Fender
Back Fender
Back View
