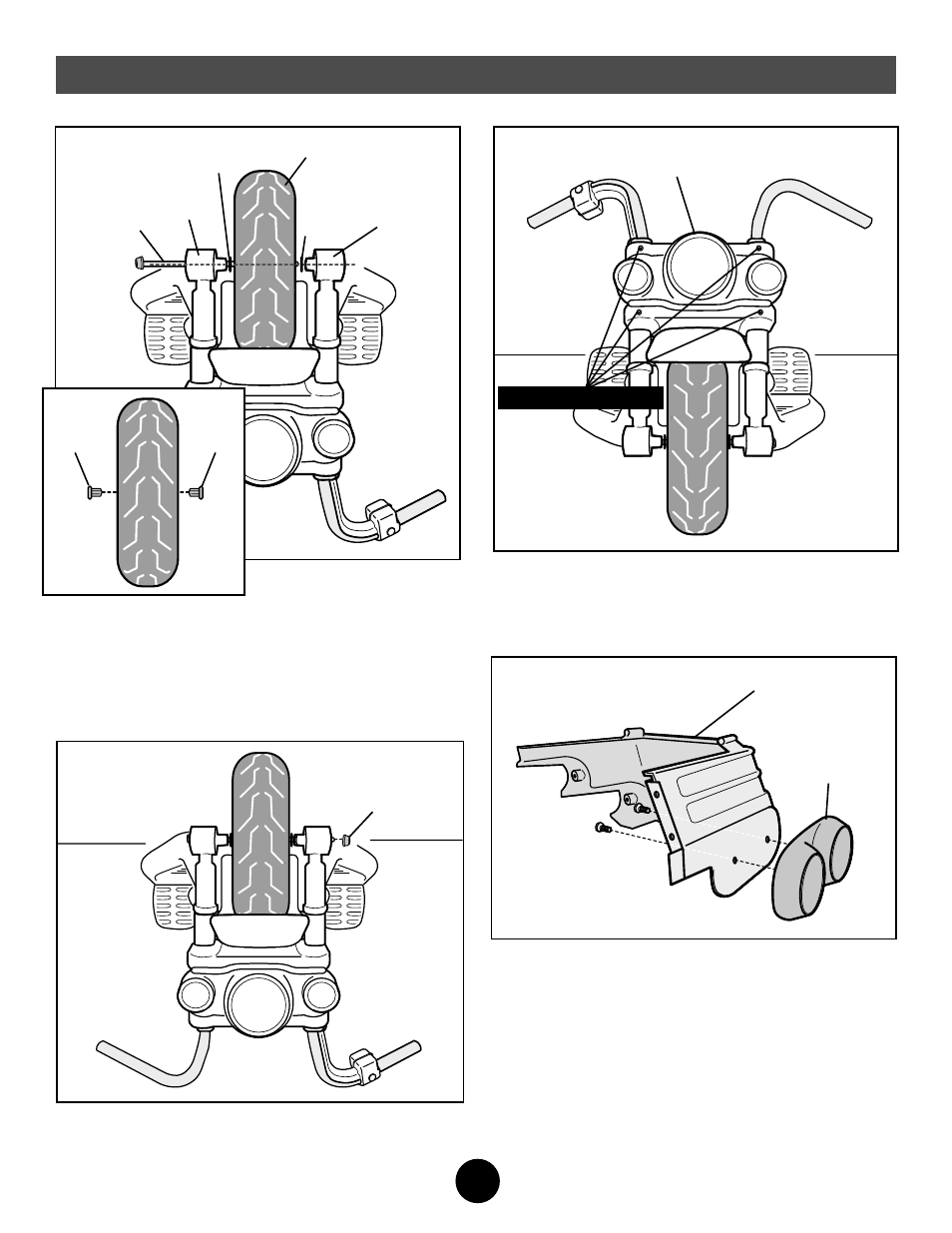

• Fit the wheel bushings into the center hole in the wheel

(see inset).

• Position the wheel between the shocks.

• Slide the front axle through a shock, a washer, the wheel

(with bushing), another washer and then out through the
other shock.

• Turn the vehicle upright.

• Tighten all four screws in the headlight assembly (assem-

bled in Assembly Step 7 and Assembly Step 8) with a
Phillips screwdriver. Do not over-tighten.

• Fit a cap nut on the end of the front axle.

• Support the opposite end of the front axle and tap the

cap nut with a hammer to secure it on the end of the
front axle. Pull on the cap nut to be sure it is secure.

Assembly

• Fit an exhaust cap to a saddlebag.

• Insert two screws through the inside of the saddlebag

and into the exhaust cap.

• Tighten the screws with a Phillips screwdriver. Do not

over-tighten.

• Repeat this procedure to assemble the exhaust cap to

the other saddlebag.

Wheel
Bushing

Washer

Shock

Wheel
(with Bushings)

Washer

Shock

Front Axle

Cap Nut

Headlight Assembly

Saddlebag

Exhaust Cap

Tighten All Four Screws
